Micro Load Cell (CZL928E)

Name: Micro Load Cell (CZL928E)
Brand: all-electronics-online.com
SKU: 792364725
Availability: InStock
Rating: 4.6 (87 reviews)

Price:	US $ 1.2/Piece
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CZL928E
Treatment:	Anodized
Output:	Analog Sensor
Pattern:	Micro Load Cell

Product Description

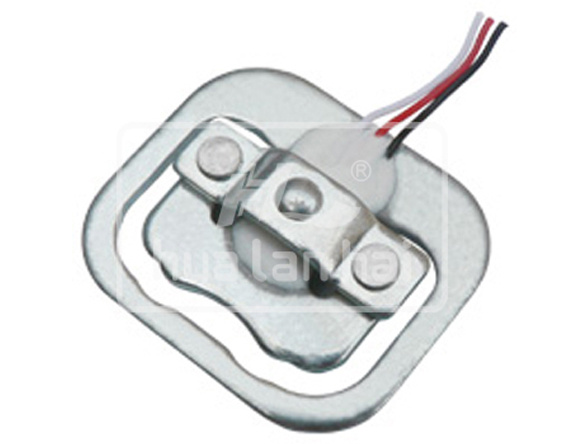

Micro Load Cell (CZL928E)

Type:        single point load cell
Material:     aluminum alloy
Surface:      anodized treatment
Protection:   IP65
Suggested Platform Size:
              200 ×200 mm
Application:   body scales

1. Rated Load	50 Kg
2. Rated Output	1.0±0.15mV/V
3. Zero Balance	±10%F.S
4. Input Resistance	1050±50Ω
5. Output Resistance	1000±10Ω
6. Excitation Voltage	5-10VDC
7. Nonlinearity	0.2%F.S
8. Hysteresis	0.2%F.S
9. Repeatability	0.2%F.S
10.Creep(30min)	0.1%F.S
11.Operating Temperature	-20ºC To +65ºC
12.Temperature Effect on Zero	0.2%F.S/10ºC
13.Temperature Effect on Span	0.2%F.S/10ºC
14.Insulation Resistance	2000MΩ(50VDC)
15. Safe Overload	150%F.S
16.Ultimate Overload	200%FS
17. Cable	470mm(flat 4-wires)

Guangdong South China Sea Electronic Measuring Technology Co., Ltd. (SCS)is located at Dongguan City, Guangdong Province, Where is the manufacture centre of China. Established in 1992, it specializes in developing and manufacturing advanced load cells, force sensor, Torque sensor, axle weigher, wheel weigher, pressure transducer based on strain-gages. We also manufacture custom designed load cells and weighing system whatever our customers can dream up. Some of our products have "OIML" and European approved "CE" mark. Hope we will establish a long term business-ship with you.
