| Prod Model: |
PS-LA6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Medium: |
Non-Hazardous Gas Only (Air) |
| Electrical Feature: |
1 Pole No |
| Electrical Rating: |
20mA, 120/250V |
| Ambient Temperature: |
-10~95°c |
| Type: |
Electronic |
| Contact: |
Normally Open |
| Application: |
Industrial |
Product Description

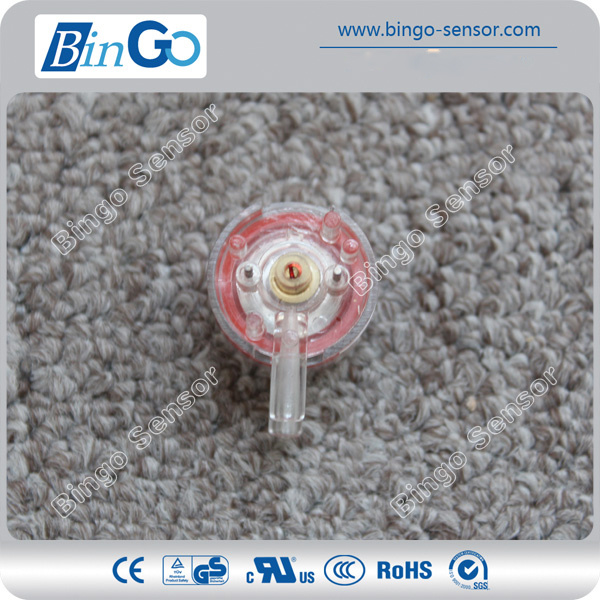

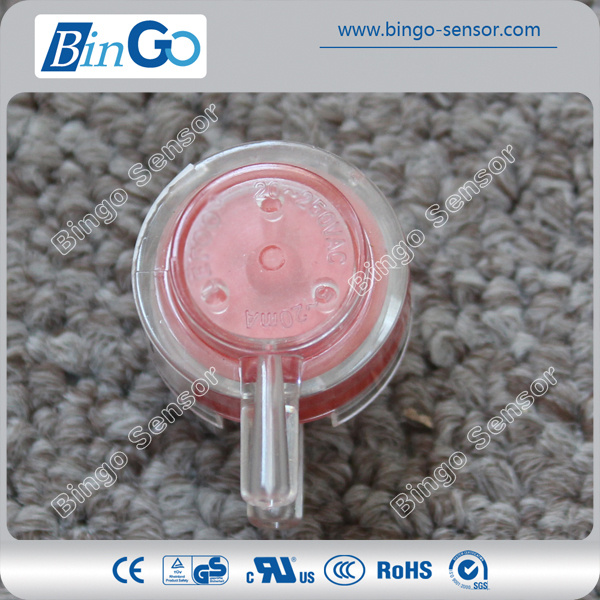

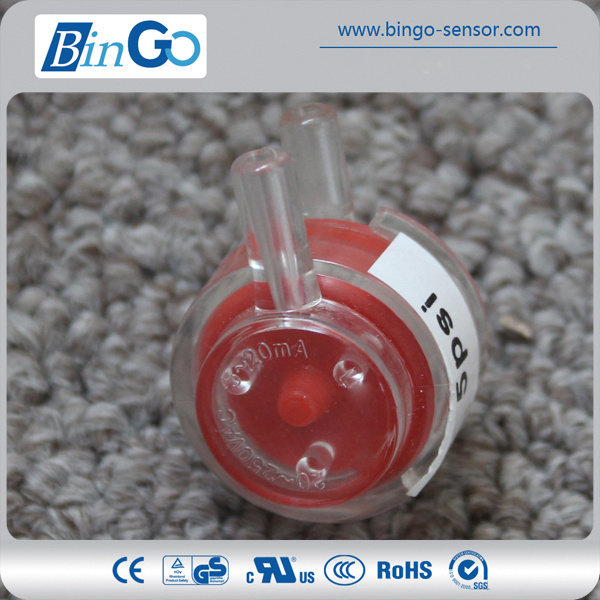

Micro Low Pressure Switch for Cleaner1. Introduction:PS-LA6 is designed to detect both negative and positive pressure, such as the family vacuum cleaner. It is provided with solder pin connections and is especially designed for mounting on "Printed Circuit Boards", as well as connecting with different wire leads, terminals and sockets. It is considered as an economical interface between pressure systems and Printed Circuit Boards with almost no hysteresis.
2.
Technical Data:Conversion: 1mbar = 100 PA 1 in/H2O= 249 PA
| Model | PS-LA6 |
| Medium | Non-hazardous gas only (air) |
| Electrical feature | 1 pole NO |
| Electrical rating | 20mA, 120/250V |
| Ambient temperature | -10~95°C |
| Pressure Range | Positive: 10mbar ~ 600mbar (Max. 800 mbar) |
| Negtive: 10mbar ~ 800mbar (Max. 1000 mbar) |
| Electrical connection | Solder pins 1.0 mm, 10mm distance between each other pin; or with different type wire leads and terminals on request. |
| Pressure connection | Inlet 4.0 mm for tube connection |
3.Our service:1). Delivery in time,delivery time is 7 days for sample and 15 working days for bulk order;
2). Strong production capacity and strict quality control system;
3). Your inquiry and problems related to our products or prices will be replied in 24 hours;
4). Well-trained and experienced staffs to answer all your inquires;
5). After-sale tracking service for all of our clients;
6). OEM is available; small quantities, mixed bulk orders are also welcome;
7). Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, MoneyGram;
8). Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.
4. Guarantee:
1).12 months warranty for most of our products;
2). We will arrange delivery of the goods on time;
3). Within the warranty period, we will bear all the quality problem of our products;
4). Beyond the warranty period, we will despatch the replacement parts to help fix the products, but the parts will be charged;
5). Without any problem, we will gain the feedbacks of our products to help improve better products.If you need more information about the product, click here: www.bingo-sensor.com
