Micro NEMA11 Stepper Motor with Cheap Price, Approved by CE and RoHS

Name: Micro NEMA11 Stepper Motor with Cheap Price, Approved by CE and RoHS
Brand: all-electronics-online.com
SKU: 778515415
Availability: InStock
Rating: 4.8 (107 reviews)

Price:	US $ 5.9-8.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	JK28HS32-0956
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current:	0.95A
Resistance:	2.8ohm
Voltage:	2.6V
Shaft Diameter:	5mm
Shaft Length:	20mm
Frame Size:	28mm*28mm
Body Length:	32mm
Key Word:	Micro Stepper Motor
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Electromechanical
Operate Mode:	Double Beat
Certification:	CE and RoHS
Brand:	Jkong Motor

Product Description

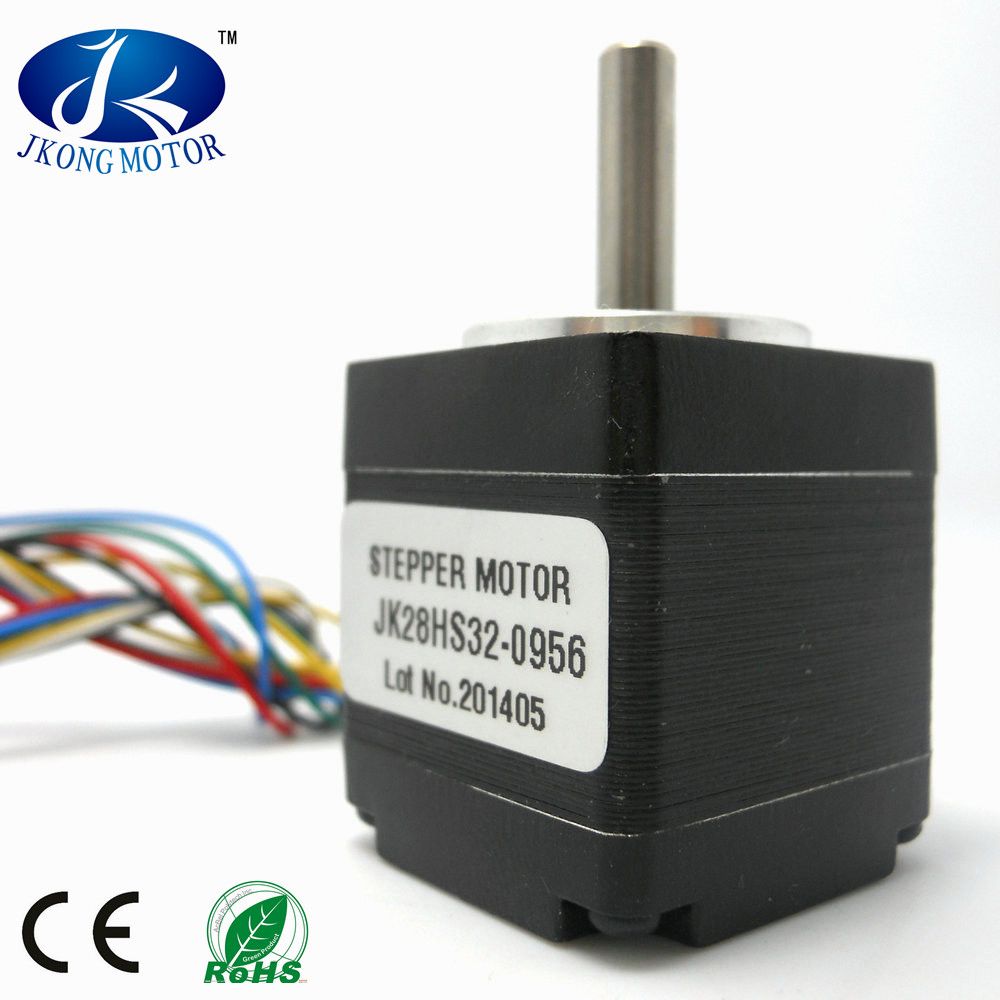

Micro NEMA11 stepper motor with cheap price, approved by CE and ROHS

General Specifications:

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 20N
Max. axial force ---------------------------- 2N

Electrical Specification:

Phase	2
Step angle	1.8	deg
Voltage	2.66	v
Current	0.95	A
Resistance	2.8	ohm
Inductance	1	m.H
Hplding torque	0.43	kg.cm

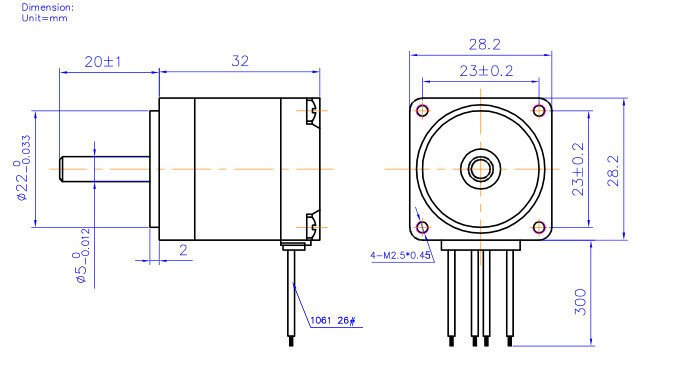

Demension:

Applications:

Used for robots stepper motor,

Electronic automatic equipment stepping motor,

Medical instrument stepping motor,

Advertising instrument stepper motor,

Lighting& audio equipment stepper motor,

Printer stepper motor, textile machinery stepper motor.

Cnc router stepper motor.

Note: We can also manufacture products according to customer's requirements.

Company Show:

CHANGZHOU JINGKONG MOTOR & ELECTRIC Appliance Co.ltd is a high-tech enterprise that specializes in designing and producing Hybrid Stepper Motor, Gear Motor, Brushless dc Motor, Driver and some related parts.

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
