Micro Oil Pressure Sensor for 0~10MPa

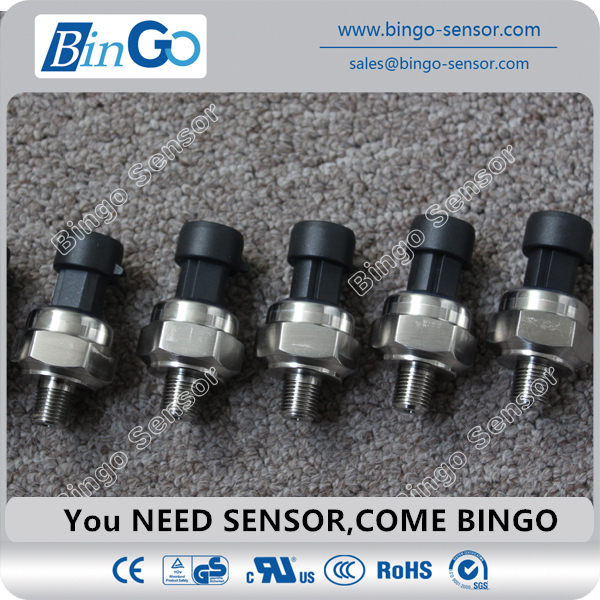

Name: Micro Oil Pressure Sensor for 0~10MPa
Brand: all-electronics-online.com
SKU: 784578645
Availability: InStock
Rating: 4.6 (42 reviews)

Price:	US $ 7/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PT-ID02
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Protection Degree:	IP65
Housing Material:	Stainless Steel, Brass, Aluminium for Option
Output Signal:	4 - 20mA. 2-Wire

Product Description

Industrial Pressure Sensor for PT-ID01

The products are widely used to measure of air compressors. auto engines, air conditioning equipment. etc. The product is made of carbon steel alloy, which is ideal for industrial environment.
Feature
High quality, high stability, small size. low weight. Compact structure, low cost and mass production

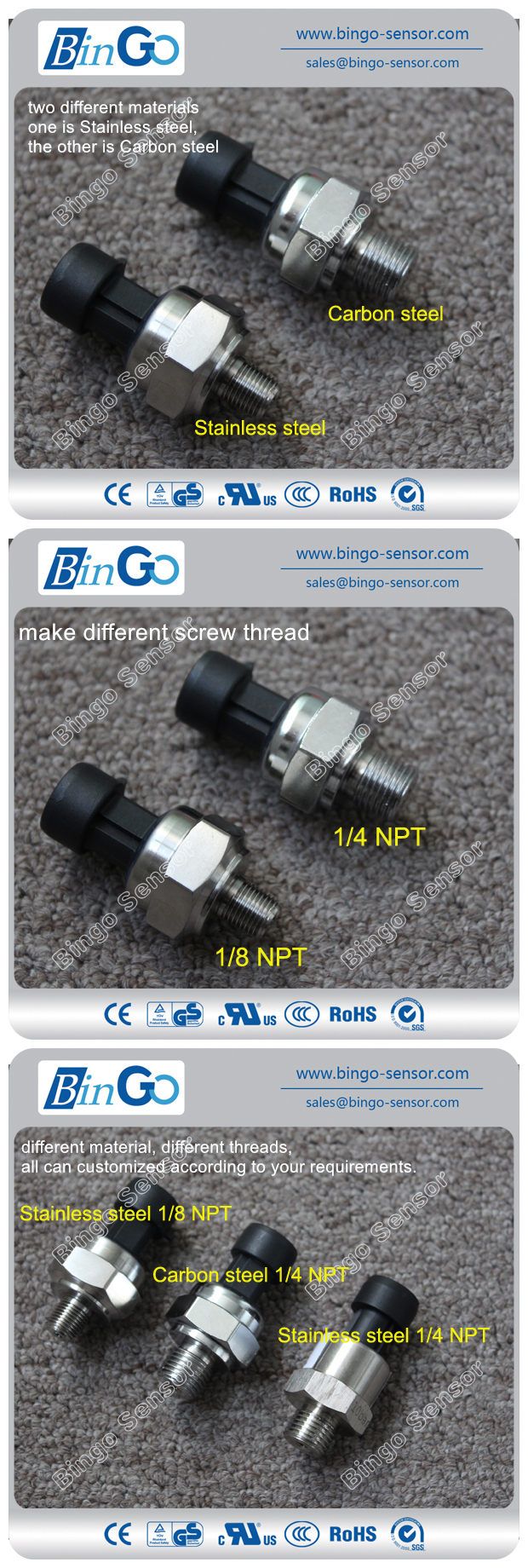

Product Show

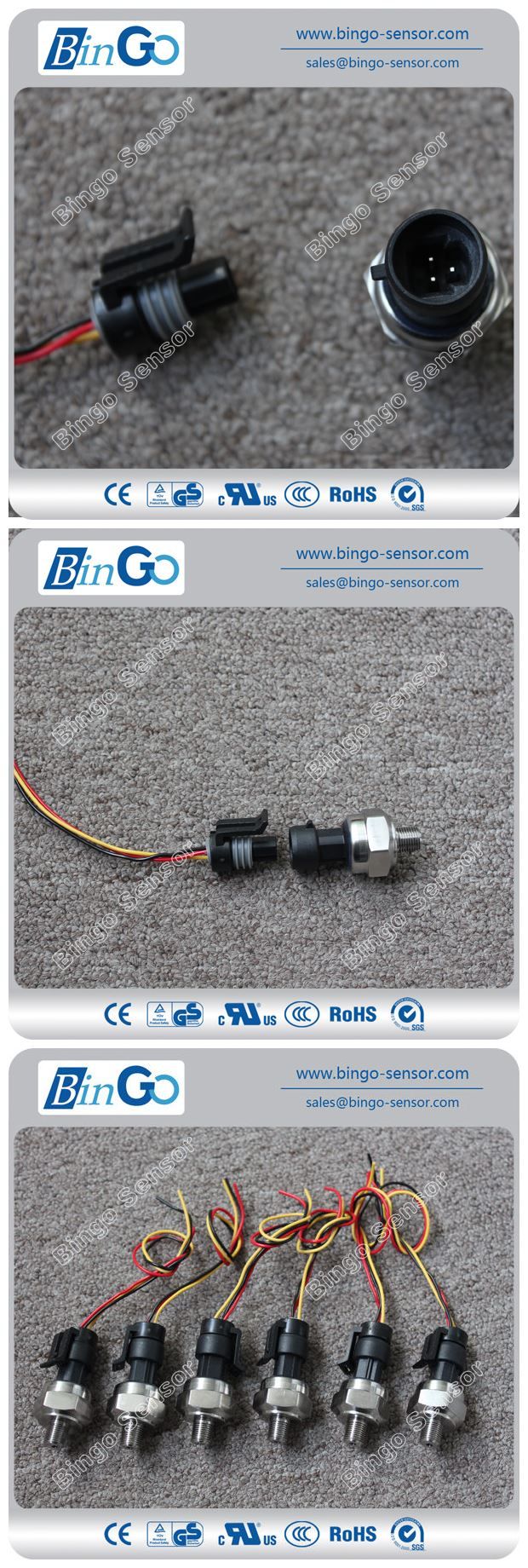

Detail Show

Specification
PT-ID01(Ceramic piezoresistance,for air condition,automotive)

Pressure range	0-10Mpa
Power supply	5.0VDC
Output	0.5-4.5VDC
Medium temperature	-10~80ºC
Measuring accuracy	±1.5%FS(1%FS available)
Material	cover(Carbon steel,SS304/316,brass),sensor(ceramic)
Pressure connection	G1/4'',NPT1/8'',customized
Protection grade	IP65

More detail

Model	Pressure	Max pressure	Damage pressure	Measuring accuracy	Response time
PT-ID016-05	0.5Mpa	0.75Mpa	1.0Mpa	±1.5%FS	≤2.0ms
PT-ID016-07	0.7Mpa	1.05Mpa	1.4Mpa	±1.5%FS	≤2.0ms
PT-ID016-08	0.8Mpa	1.2Mpa	1.6Mpa	±1.5%FS	≤2.0ms
PT-ID016-10	1.0Mpa	1.5Mpa	2Mpa	±1.5%FS	≤2.0ms
PT-ID016-12	1.2Mpa	1.8Mpa	2.4Mpa	±1.5%FS	≤2.0ms
PT-ID016-25	2.5Mpa	3.75Mpa	5Mpa	±1.5%FS	≤2.0ms
PT-ID016-50	5Mpa	7.5Mpa	10Mpa	±1.5%FS	≤2.0ms
PT-ID016-100	10Mpa	15Mpa	20Mpa	±1.5%FS	≤2.0ms
