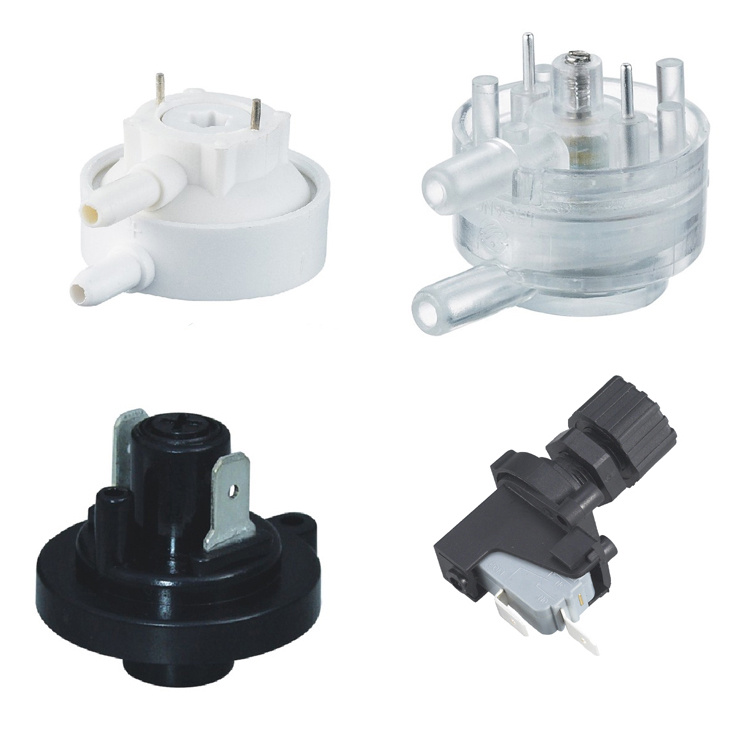

Micro Pressure Switch for Air Gas

Name: Micro Pressure Switch for Air Gas
Brand: all-electronics-online.com
SKU: 802415615
Availability: InStock
Rating: 4.9 (31 reviews)

Price:	US $ 0.19-0.38/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	kbq02c2
The Production Cycle:	7days
Transport:	The Ship or The Plane
Type:	Mechanical
Application:	Vehicles
Explosion-proof Type:	Flameproof
Contact:	Normally Open
Brand:	Avoa

Product Description

Low Pressure Switch for Air, Gas with Detailed Application
Product Description

1. Introduction:
This type is primarily shows the Low Pressure Switch for Air, Gas, Detailed Application used in washing machine, filter, heater, and boiler systems. They are suitable for air and also other non-inflammable and non-aggressive gases.

2.instructions
As the controlling part of pressure systems, the performance of KBQ-02C series pneumatic switches is stable and reliable. The switch can be used to test negative pressure nearly without any lag. The design of the switch makes its air interface rotate at any angle. In addition to directly welding on to printed circuit boards, the connection also fits to electric wires and inserted terminal.

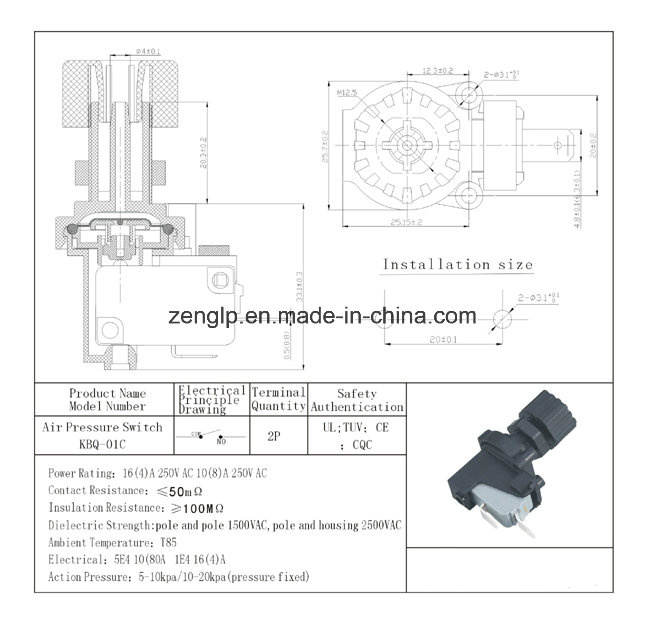

power rating	16(4)A 250VAC 10(8)A 250VAC
contact resistance:	≤50mΩ
insulation resistance	≥100MΩ
Dielectric strength:	pole and pole 1500VAC ,pole and housing 2500VAC
ambient temperature	T85
electrical:	5E4 10(8)A 1E4 16(4)A
action pressure:	5 10kpa/10--20kpa(pressure fixed)

3. How to get latest price quickly:

The following technical data is need you to show to us.
1. The working temperature:
2. The workiing pressure:
3. The quantity you want to purchase:
4. Where you use the products to

4.

model

KBQ02C2

medium

Non-corrosive gas

Electrical function

single-pole control,nomally open

Rated current and voltage

20ma 250V AC

Temperature range

-10ºC to -90ºC

Electrical connection

Diameter of welding foot 1.0mm,spacing 10mm or configuring wining and inserted teminal

Pressure range

Negative pressure:-1 to -80kpa

Maximum working pressure

-100KPA

Interface

outer diameter 4mm or 5mm

Circuit diagram
