| Prod Model: |
LXW-511G1/Z-15GW2-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operation Speed: |
0.01mm to 1m/S |
| Withstand Voltage2: |
Every Terminal 2000vac |
| Protection Degree: |
IP65 |
| Impact 2: |
Misoperation 300m/S |
| Operation Frequency: |
240times/Min (Mechanical) 20times/Min(Electrical) |
| Withstand Voltage: |
Non-Connection Wire 1500vac |
| Insulation Resistance: |
More Than100m Ohm (DC500V) |
| Impact: |
Durable 1000m/S |
| Version: |

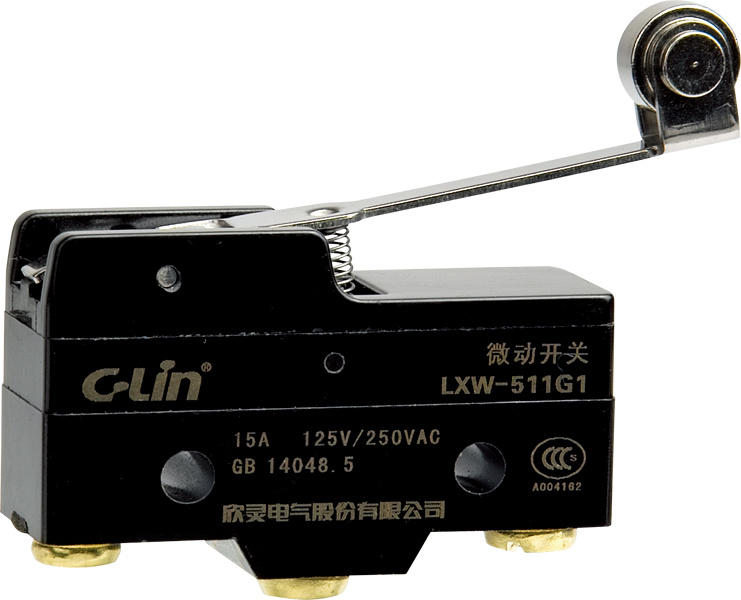

with Spring Handle and Roll |
| Contact Resistance: |
25m Ohm( Initial Value) |
| Pressing Type: |
Long Arm |
| Size: |
Normal Size |
| Application: |
Food Machinery, Automatic Packing Machine, etc. |
| Brand: |
Clin |
Product Description
Our C. LIN brand micro switch is a generic term used to refer to an electric switch that is able to be actuated by very little physical force. They are very common due to their low cost and extreme durability, typically greater than 1 million cycles and up to 10 million cycles for heavy duty models. This durability is a natural consequence of the design. Internally a stiff metal strip must be bent to activate the switch. Common applications of micro switches include computer mouse buttons and arcade game joysticks and buttons. Micro switches are commonly used in tamper switches on gate valves on fire sprinkler systems and other water pipe systems, where it is necessary to know if a valve has been opened or shut.
MICRO SWITCH Features:
1)Nice appearance, tight configuration.
Characteristic: Small contact gap, snap action, high sensitivity and small operating travel.
2)Long life and high relibality.
3)Variety of terminals.
4)A variety of models with low operating force to high operating force are available.
5)Variety of temperature grade.
7)Widely used in appliance, electronic equipment, automatic machine,
Communication equipment, car electric, apparatus and instrument, electro motion tool etc.
Main Technical Specification
| Operating Speed | 0.01mm~1m/s |
| Operating Frequency | Mechanical:240 operations/min;Electrical:20 operations/min |
| Contact Resistance | 15mΩ max (initial value) |
| Insulation Resistance | 100mΩ min(below 500VDC) |
| Conventional Thermal Current | 15A |
| Electrical Prameter | AC380V, 220V/1.5A DC220V/0.3A |
| Dielectric Strength | 1890V, 50/60Hz for 1min between terminals of the same polarity |
| 2500V, 50/60Hz for 1 min between terminal and non-current carrying metal parts |
| 2500V, 50/60Hz for 1 min between terminal and ground |
| Vibration | malfunction:10Hz~55Hz, 1.5mm double amplitude |
| Shock | mechanical resistance:1000m/s2; malfunction:300m/s2 |
| Ambient Environment | Temperature:minus10centigrade~80 centigrade(no ice); Humidity:<90%RH |
| Working Life | Mechanical:1*106 Min.; Electrical:5*105 |
| Model | Operating Force max | Pretravel max | Overtravel min | Operating Position |
| LXW-511D | 3.4N(0.35kgf) | 0.4mm | 1.6mm | 21.5±0.5mm |
| LXW-511G1 | 1N(0.1kgf) | 7.1mm | 4mm | 30.2±0.8mm |
| LXW-511G2 | 1.6N(0.16kgf) | 2.7mm | 2.4mm | 30.2±0.4mm |
| LXW-511M | 3.4N(0.35kgf) | 0.4mm | 5.6mm | 21.8±0.8mm |
| LXW-511N1 | 0.7N(0.07kgf) | 10mm | 5.6mm | 19±0.8mm |
| LXW-511N2 | 1.6N(0.16kgf) | 5mm | 2mm | 19±0.4mm |
| LXW-511Q1 | 3.4N(0.35kgf) | 0.4mm | 3.58mm | 33.4±1.2mm |
| LXW-511Q2 | 3.4N(0.35kgf) | 0.4mm | 3.58mm | 33.4±1.2mm |
| LXW-511Z | 3.4N(0.35kgf) | 0.4mm | 0.13mm | 15.9±0.4mm |
| LXW-515B | 1.6N(0.16kgf) | 2.7mm | 2.4mm | 43.1±0.8mm |
| LXW-515C | 3.4N(0.35kgf) | 0.1mm | 1.6mm | 28.2±0.5mm |
| LXW-515R | 1N(0.1kgf) | 20mm | 5.6mm | 19±0.4mm |
| LXW-515S | 3.0N(0.3kgf) | 4mm | 1.6mm | 28.6±0.8mm |
| LXW-515X | 3.0N(0.3kgf) | 4mm | 1.6mm | 17.4±0.8mm |
