Micro Switch with Super Quality

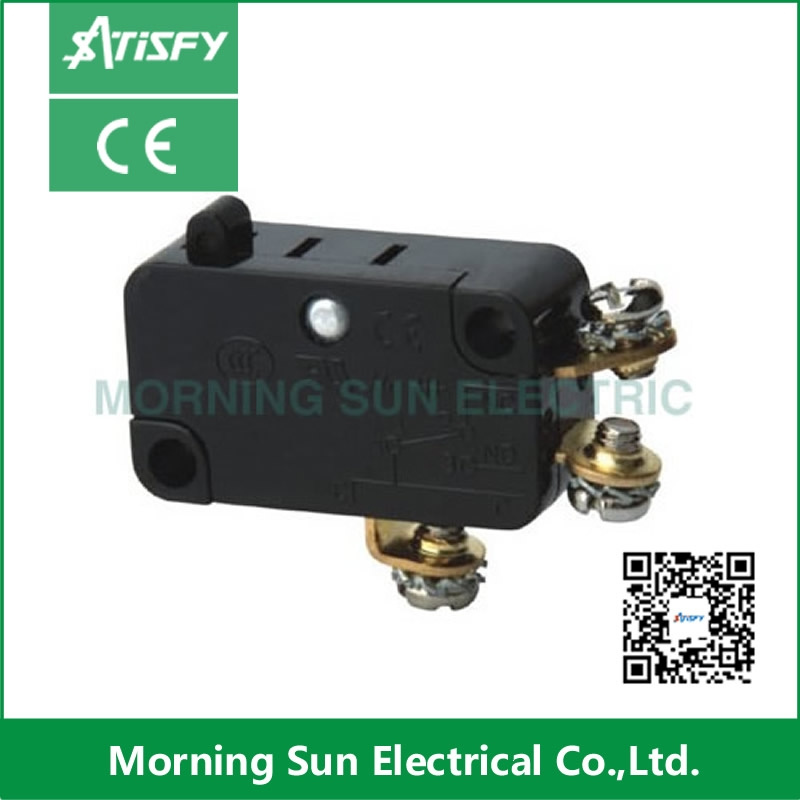

Name: Micro Switch with Super Quality
Brand: all-electronics-online.com
SKU: 667564365
Availability: InStock
Rating: 4.5 (97 reviews)

Price:	US $ 0.50/Piece
Trade Terms:	CIF,CIP,EXW
Min Order:	5000/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	KW-7-0L1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Quality Competitive Prices:	OEM
Pressing Type:	Lever Roller
Protection:	Dust-Proof
Size:	Small-Sized
Environment:	﹤250℃
Breaking Capacity:	Micro-Current
Breaking Form:	Multi Joint Type
Brand:	Satisfy

Product Description

Features:
Various levers and terminals are available for choice.
Various operating force are available.
Snap action, compact design, suit for small space.
Long operating life, high reliability, which could save the cost.
Various rating and temperature resistance degree are available.

Application:
Home appliance,Electronic device,Automation equipment,Communication equipment,Auto electronic, Instrument and meter,Sprayer machine,Water pump, Game machine, Air conditioner, Electric tool etc.

Item		Date
Operation speed		0.1mm-1m/s
Operation frequency	Mechanical	600time/min
Operation frequency	Electrical	40time/min
Insulation resistance		100MΩ(above)(DC500V)
Contact resistance		25MΩ initial value
Withstand voltage	Non-connection wire	1500VAC
Withstand voltage	Every terminal	2000VAC
Vibration	Misoperation	10-55Hz(Amplitude)1.5mm
Impact	Durable	1000m/s
Impact	Misoperation	300m/s
Life	Electrical	10,000(above)
Life	Mechanical	1,000,000(above)
Pretection degree		IP40
Ambient operating temperature		"-25+80ºC
Humidity		<=82%
Ue(v)	Le(A)	1th(A)
AC-250	7.5	10
AC-125	15	20
DC-250	0.3	0.45
DC-125	0.6	0.75

4.Operating Characteristics

Operation speciality	V-21-1-6	V-16-1-4

OF	400g	200g
RF	80g	50g
PT	1.2mm
OT	1.0mm
MD	0.4mm(0.3mm)
OP	14.7±0.4mm

Morning Sun Electrical Co., Ltd. Founded in 1995, located in the Liushi Town - "Electric Capital", mainly producing Micro switch, Contactor, MCB, MCCB, Auto-Air-Conditioner Parts and Thermostats and related products, which have been sold to Europe, North America, South America, Middle East, Southeast Asia and so on. Based of the "Good quality, competitive price, timely shipment and nice service", now getting regular repeated orders and enjoying the good reputation among our customers.

"Morsun" is prepared and willing to cooperate with any friends from all over the customers for the mutual benefits and bright tomorrow!
