CNC Electric Group Co., Ltd. >> Micro Switch (Z-15 Series)

Micro Switch (Z-15 Series)

Micro Switch (Z-15 Series)
Price: Negotiable/Piece
Trade Terms: FOB,CIP,others
Min Order: 50/Piece
Pay Type: L/C,T/T
Prod Model: Z-15 Series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage: Control Button
Kind: Single-pole on-off Switch
Type: Normal Open

Product Description

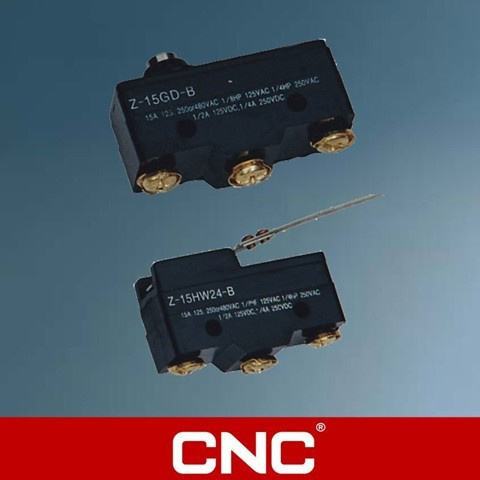

Z-15 series micro switch

Protection grade: IP62
Mechanical life: 1, 000, 000times
Electrical life: 600, 000times
Operating frequebcy: Mechanical 240times /minute
Electrical 20times /minute
Load: Ordinary AC 380V 100VA
DC 220V 10W
Large current AC 660V 1000VA
DC220V 100W
Operating speed: 0.1mm / s ~ 0.5mm / s
Contact resistance: ≤ 15MΩ
Insulation resistance: ≥ 100MΩ(DC500V)
Ambient temperature: -25° C~40° C
Humidity: ≤ 90%
Altitude: ≤ 2500m

Standards compliant: GB14048.5, JB/GQ8012-84
Dielectric strength:
Between terminals at the same level (1140V)
Between metal piece between (1140V)
BetweenTerminal and non-charged metal pieces (2000V)
CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
