| Prod Model: |

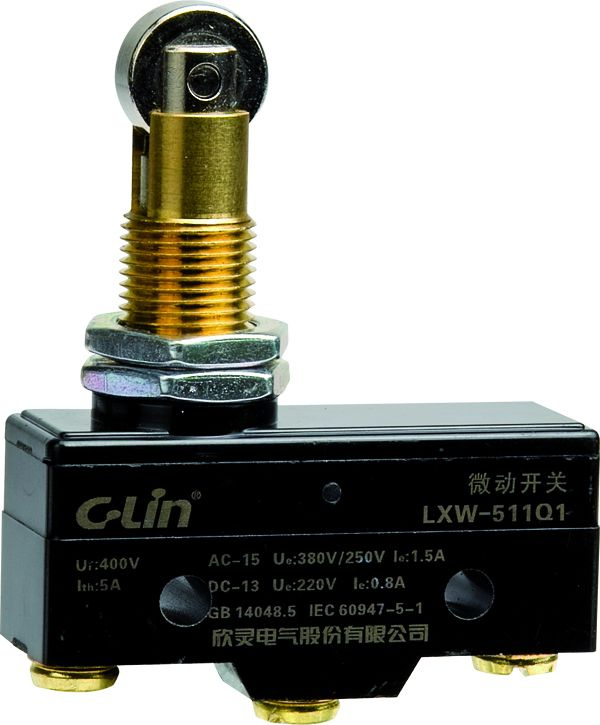

Z-15GQ22-B/LXW-511Q1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operation Speed: |
0.01mm to 1m/S |
| Operation Frequency: |
240times/Min (Mechanical) 20times/Min(Electrical) |
| Version: |
with Roll |
| Contact Resistance: |
15m Ohm |
| Contact Capacity: |
15A 380vac/220vac 0.3A 220vdc |
| Pressing Type: |
Spring Roller |
| Size: |
Normal Size |
| Application: |
Food Machinery, Automatic Packing Machine, etc. |
| Brand: |
Clin |
Product Description
Our C. LIN brand micro switch is a generic term used to refer to an electric switch that is able to be actuated by very little physical force. They are very common due to their low cost and extreme durability, typically greater than 1 million cycles and up to 10 million cycles for heavy duty models. This durability is a natural consequence of the design. Internally a stiff metal strip must be bent to activate the switch. Common applications of micro switches include computer mouse buttons and arcade game joysticks and buttons. Micro switches are commonly used in tamper switches on gate valves on fire sprinkler systems and other water pipe systems, where it is necessary to know if a valve has been opened or shut.
Features:
Plastic closure, single air-space and with alternative contacts, with different operating elements on the switch, limit switch to be installed with three terminals. Spring handle and pushbutton versions are available. The switches can be installed in any desired position.
Relevant Standad: EN 60947-1
General purpose micro switches may be used in AC control circuits of 50/60Hz, with a voltage up to 380V and a rated control capac ity
Of 100VA or in DC control circuits with a voltage up to 220V and rated control capacity of 10W.
| International Model | C. lin Factory Model | OF max. | PT max. | OT min. | OP |
|
| Z-15GD-B | LXW-511D | 3.4N(0.35KGF) | O. 4 mm | 1.6 mm | 21.5± 0.5mm |
| Z-15GW2-B | LXW-511G1 | 1.6N(0.16KGF) | 7.1 mm | 4 mm | 30.2± 0.8mm |
| Z-15GW22-B | LXW-511G2 | 1.6N(0.16KGF) | 2.7 mm | 2.4 mm | 30.2± 0.4mm |
| Z-15GQ-B | LXW-511M | 3.4N(0.35KGF) | O. 4 mm | 5.6 mm | 21.8± 0.8mm |
| Z-15GW-B | LXW-511N1 | 3.4N(0.35KGF) | 10 mm | 5.6 mm | 19± 0.8mm |
| Z-15GW21-B | LXW-511N2 | 0.7N(0.07KGF) | 5 mm | 2 mm | 19± 0.4mm |
| Z-15GQ22-B | LXW-511Q1 | 1N(0.1KGF) | O. 4 mm | 3.58 mm | 33.4± 1.2mm |
| Z-15GQ21-B | LXW-511Q2 | 3.4N(0.35KGF) | O. 4 mm | 3.58 mm | 33.4± 1.2mm |
| Z-15G-B | LXW-511Z | 3.4N(0.35KGF) | O. 4 mm | O. 13 mm | 15.9± 0.4mm |
| Z-15GW2277-B | LXW-511B | 3.4N(0.35KGF) | 2.7 mm | 2.4 mm | 43.1± 0.8mm |
| Z-15GS-B | LXW-511C | 1.6N(0.16KGF) | O. 1 mm | 1.6 mm | 28.2± 0.5mm |
| Z-15HW52-B | LXW-511R | 1N(0.1KGF) | 20 mm | 5.6 mm | 19± 0.4mm |
| Z-15GL2-B | LXW-511S | 3.0N(0.3KGF) | 4 mm | 1.6 mm | 28.6± 0.8mm |
| Z-15GL-B | LXW-511X | 3.0N(0.3KGF) | 4 mm | 1.6 mm | 17.4± 0.8mm |
Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.
Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.
The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.
Xinling is ready for creating a magnificent tomorrow together with you!
