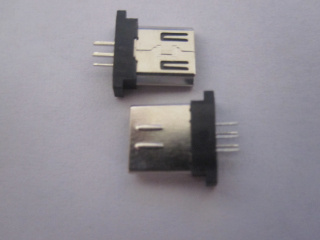

Micro USB 11p, PCB Application, Male Connector

Name: Micro USB 11p, PCB Application, Male Connector
Brand: all-electronics-online.com
SKU: 743654465
Availability: InStock
Rating: 4.4 (36 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW,others
Min Order:	1000/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MUMS10-XXXXX
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gender:	Male
Application:	Automobile, Audio & Video, PCB

Product Description

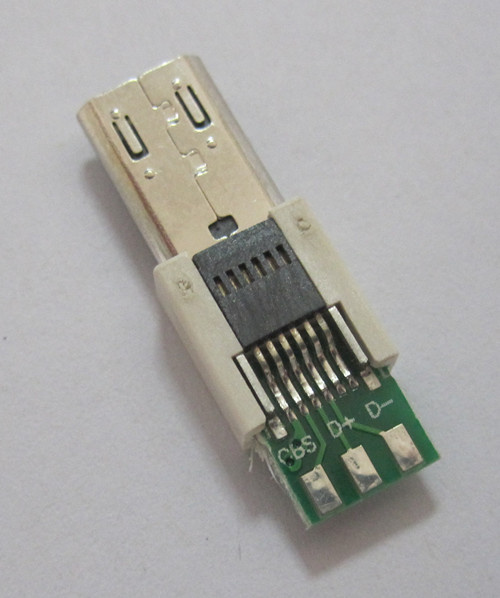

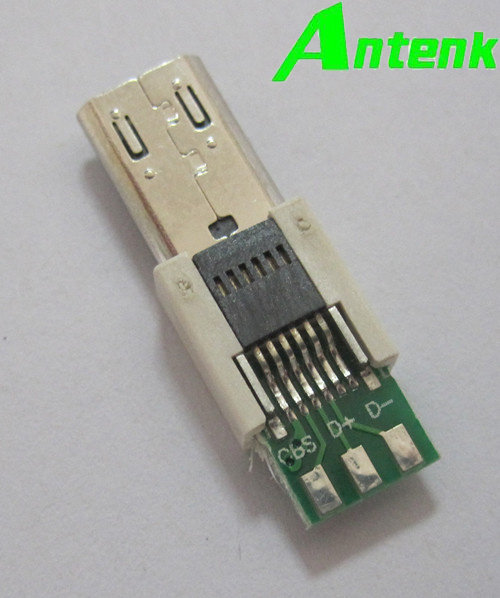

Micro USB 11P, Plug Straggle C Type With PCB Board

1.Material:

Shell: SUS 301 R-1/4H
Insulator: SEE TABLE+30% G.F. UL94V-0
HOOK: SUS 301 R-EH
CONTACT: C5191 R-EH

2.Mechanical:

Mating Force: 35N max
Withdrawal Force: 8N min initial
Durability: 10000 cybles min

3.Electrical:

Current-max(amps): 1.0A
Voltage-max(volts): 30V
Withstanding Voltage: 100V AC
Contact Resistance(ohms): 30 milliohms max
Insulation Resistance(ohms) : 100 Megohms min

4. Plating:

Contacts: Gold 1U" and tin over Nickel Plated
Shell: Nickel over all plating.

5. Enviromental:

Temprature range: -30°C ~+ 80°C

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.
