Micro USB 3.0 Plug Connector

Name: Micro USB 3.0 Plug Connector
Brand: all-electronics-online.com
SKU: 689442145
Availability: InStock
Rating: 5 (51 reviews)

Price:	US $ 0.18/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Integrated IC
Installation Mode:	Automatic Pop-up
Type:	SIM Jack
Interface Type:	USB
Shape:	Bar
Production Process:	Injection
Customized:	Non-Customized
Working Frequency:	High Frequency
Feature:	Fire/Flame Retardant

Product Description

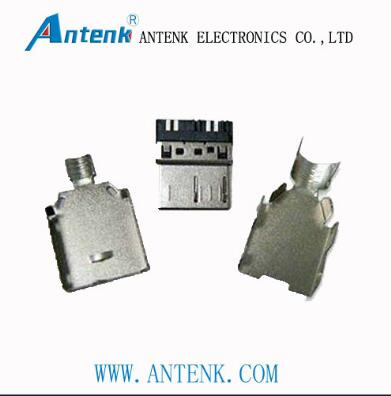

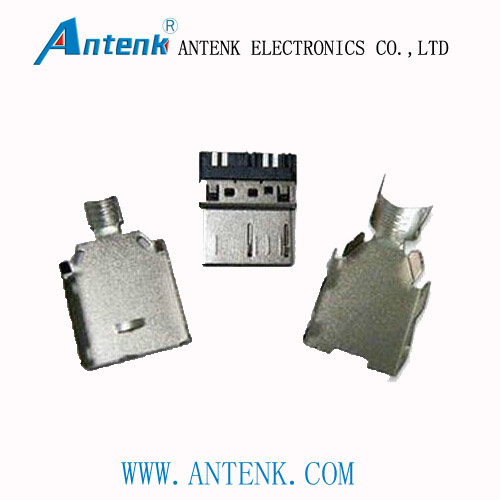

Micro USB3.0 Connector with B Male Solder Type Connectors, Used for Audio and Video

Micro USB 3.0 B solder type connector

Electrical:

Current rating: 1.8A applied to pin 1 and pin 4, 0.25A applied to all the other contacts

Voltage rating: 30V DC RMS (maximum)

Withstanding voltages: 100V AC (for 1 minute)

Insulation resistance: 100MΩ (minimum)

Contact resistance: 30mΩ (maximum)

Working temperatures: -40 to 85C

Mechanical:

Insulator material: High temperature thermoplastic (UL94V-0 rated)

Contact: Copper alloy

Insertion force: 35N (maximum)

Withdraw force: 10N (minimum)

Durability mating cycle: 1, 500 cycles (minimum).

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
