Micro USB Connectors with B Ejector Type Receptacle 4 Shell DIP

Name: Micro USB Connectors with B Ejector Type Receptacle 4 Shell DIP
Brand: all-electronics-online.com
SKU: 741003805
Availability: InStock
Rating: 4.8 (61 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Mircro USB 2.0 Connectors 001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Application:	Car

Product Description

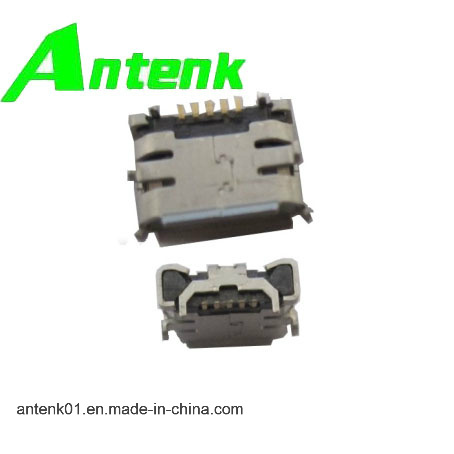

Micro USB Connectors with B Ejector Type Receptacle 4 Shell DIP

Notes:

1. Mechanical:

Mating force: 35N MAX

Unmating Force: 10N min initial 8~20N after 1000 cycles

Durability: 5000 cycles min

2. Electrical:

Current: 1.0 A

Voltage: 30V MAX

Withstanding Voltage: 100V AC

Contact Resistance: 30mΩ Max initial 10mΩ Max after 10000 cycles

3. Environmental:

Operating termpeature range: -30° C~+80° C

4. Salt spray: 24H at 35% DC with 5%-salt- solution concentration

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
