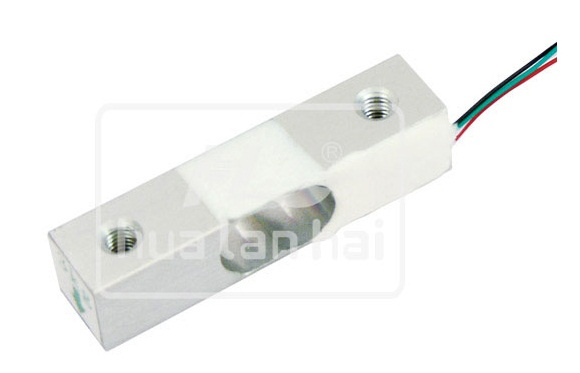

Micro Weighing Load Cell -Czl635

Name: Micro Weighing Load Cell -Czl635
Brand: all-electronics-online.com
SKU: 827586065
Availability: InStock
Rating: 4.4 (75 reviews)

Price:	US $ 2/Piece
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CZL635
Pattern:	Micro Load Cell

Product Description

Applications:

Our micro-load cells can be applied in body scales, hand scales, kitchen scales, postal scales, fishing scales, baby body scales and other micro electronic weighing systems.

Material:     aluminium alloy
Surface:      anodized treatment
Protection:   IP65
Application:   portable scales

1. Rated Load	1-80Kg(Kg)
2. Rated Output	1.0±0.1 mV/V
3. Zero Balance	±15%F.S
4. Input Resistance	1050±50Ω
5. Output Resistance	1000±50Ω
6. Excitation Voltage	9-12VDC
7. Nonlinearity	0.05%F.S
8. Hysteresis	0.05%F.S
9. Repeatability	0.05%F.S
10.Creep(30min)	0.05%F.S
11.Operating Temperature	-10ºC To +50ºC
12.Temperature Effect on Zero	0.15%F.S/10ºC
13.Temperature Effect on Span	0.2%F.S/10ºC
14.Insulation Resistance	2000MΩ(50VDC)
15. Safe Overload	120%F.S
16.Ultimate Overload	150%FS
17. Cable	200mm(flat 4-wires)

Guangdong South China Sea Electronic Measuring Technology Co., Ltd. (SCS)is located at Dongguan City, Guangdong Province, Where is the manufacture centre of China. Established in 1992, it specializes in developing and manufacturing advanced load cells, force sensor, Torque sensor, axle weigher, wheel weigher, pressure transducer based on strain-gages. We also manufacture custom designed load cells and weighing system whatever our customers can dream up. Some of our products have "OIML" and European approved "CE" mark. Hope we will establish a long term business-ship with you.
