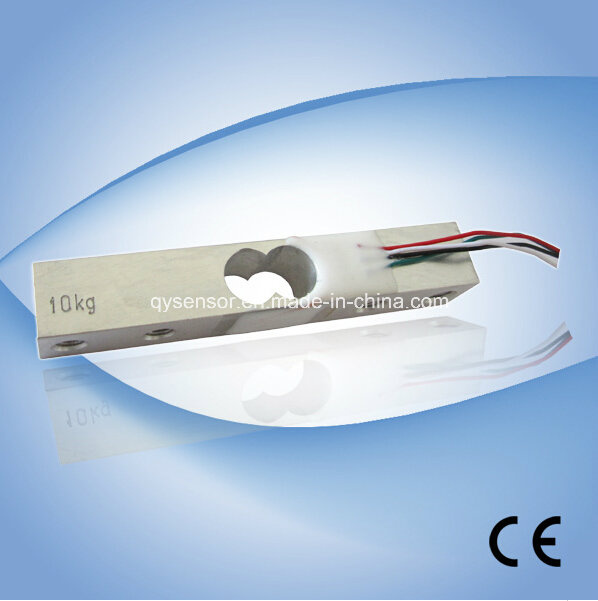

Micro Weight Sensor for Kitchen Scale

Name: Micro Weight Sensor for Kitchen Scale
Brand: all-electronics-online.com
SKU: 772989135
Availability: InStock
Rating: 5 (147 reviews)

Price:	US $ 10.80/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	QL-55
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pattern:	Parallel Beam Type
Feature:	Metail Foil Strain Gage
Material:	Aluminium

Product Description

QL-55(II) mini load cells are available in the capacities from 0.5 kg to 50 kg.
Aluminum alloy construction with parallel beam type.
Silicon adhesive sealed, surface anodized and anti-corrosion.
Integral structure and easy installation.
Suitable for electronic balance, electronic platform scale and other electronic weighing devices.
Features
1. Capacity 0.5kg~50kg
2. High accuracy
3.Aluminum alloy parallel beam
4.Max. platform size:200x300mm
5.Integral installation
6. The cable length could be chose by customer's application.

Specifications:
capacity	kg	QL-55(II): 0.5, 1, 2, 3, 5, 10, 20, 30, 50,
capacity	kg	QH-55(II): 20, 30, 50, 80, 100
safe overload	%FS	120
ultimate overload	%FS	150
rated output	mV/V	1.0 ± 0.1
excitation voltage	Vdc	5 ~ 12
combined error	%FS	± 0.05
zero unbalance	mV/V	± 0.1
non-linearity	%FS	± 0.05
hysteresis	%FS	± 0.05
repeatability	%FS	± 0.03
creep	%FS/5min	± 0.05
input resistance	Ω	1090 ± 50
output resistance	Ω	1000 ± 10
insulation resistance	M Ω	≥ 3000 @ 50 Vdc
operating temperature range	ºC	-20 ~ +55
compensated temperature range	ºC	-10 ~ +40
temperature coefficient of SPAN	%FS/10ºC	± 0.05
temperature coefficient of ZERO	%FS/10ºC	± 0.05

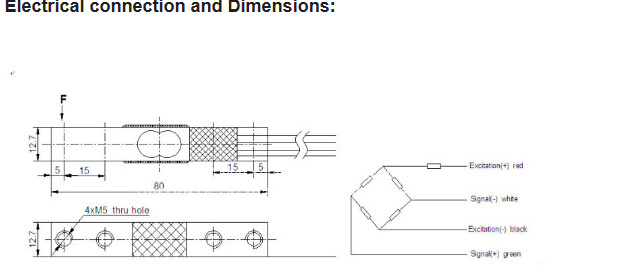

Electrical connection:
Excitation+ red Excitation- black Signal+ green Signal- white
The four-dispersion wire could be selected
Cable length: 160mm ±20 mm
Cable diameter: 0.8 ±0.2 mm
The cable length could be chose by customer's application.

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
