Microcomputer Temperature Humidity Controller Temperature Measuring Calibration

Name: Microcomputer Temperature Humidity Controller Temperature Measuring Calibration
Brand: all-electronics-online.com
SKU: 838113435
Availability: InStock
Rating: 4.4 (26 reviews)

Price:	US $ 9.5-11.5/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HP1028
Working Voltage:	230VAC+/-10%
Frequency:	50/60Hz
Hole Size:	71X29mm

Product Description

Microcomputer Temperature Humidity Controller Temperature measuring calibration

Description:

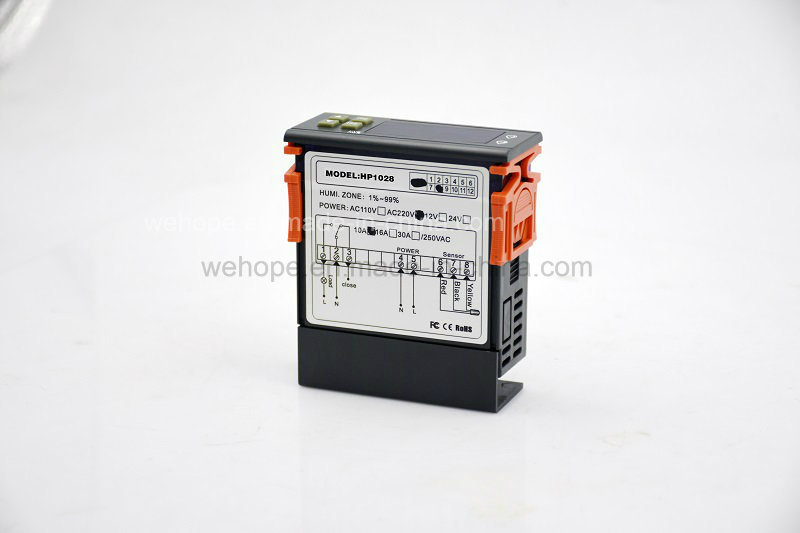

This digital humidity control controller HP1028 is with wide humidity measuring range and controlling range, comes with a humidity controller sensor probe with cable and a temperature sensor probe with cable.

Technical parameters:
A. 1.Working Voltage: 230VAC±10% 50/60Hz; Power consumption: ≤2W
2.Humidity Measure Range: 1%~99% ;Measurement error:3%
3.Humidity Control Range: 1%~99%; Humidity Control accurancy: 1%;Resolution: 1%;
   4.Humidity Probe: NTC 25ºC=10K B3435 ±1%,with 1.5 meters long
   5.Load Outpu: 1 Relay, Normally open contact 10A/250VAC
   6. Working Environment: Temperature:-40ºC~85ºC ; Himidity: 90%RH without condensation
   7. Overall Size: 75(W)x35(H)x82(D)mm
   8. Hole Size: 71(W)x29(H)mm

B. Indicator Status Description

Indicator	The light is always on	The light is not shine	The light is blinking
+	Humidification work status	Humidification operation stopped	Reach Humidification output conditions,but in a delayed state
-	Dehumidification operation status	Dehumidification operation stopped	Reach Dehumidification output conditions,but is a delayed state
