Microcomputer Time Controller (HHQ9; HHQ9-2, 4, 6)

Name: Microcomputer Time Controller (HHQ9; HHQ9-2, 4, 6)
Brand: all-electronics-online.com
SKU: 696214455
Availability: InStock
Rating: 4.3 (132 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HHQ9; HHQ9-2, 4, 6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Power:	AC220V 50Hz
Time Control Range:	1min.~168h
Battery:	Rechargeable Battery
Outline Dimension:	4848106mm
Installation Mode:	Panel Type

Product Description

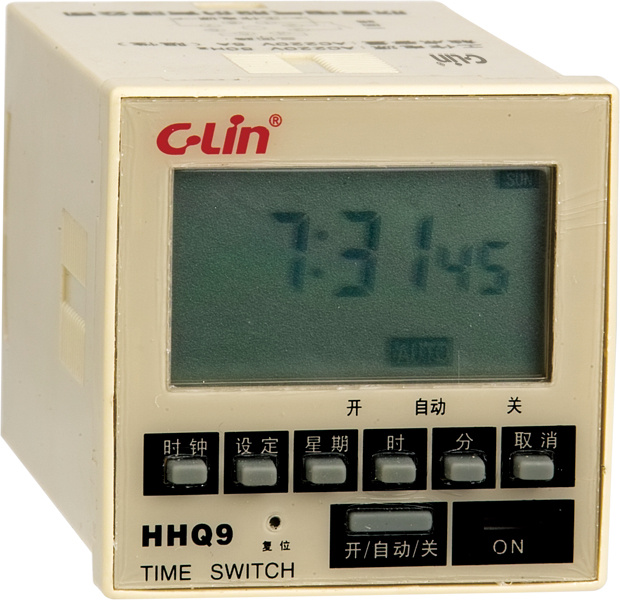

Microcomputer Time Controller
HHQ Series microcomputer time controller, adopting high performance LCD(Liquid Crystal Display) chips, is characterized by easy operation, clear display and outstanding anti-jamming capability. They substitute for the mechanical type time control switches.
Having a complete range of products with different kinds of installation(panel mounting, wall type, guide rail mounting type, socket type etc. ), HHQ Series can meet different customers' needs. They are widely used in the automatic control circuit of streetlights, neon lights, bells, broadcast & television equipments and household appliances.

Product name	Microcomputer time controller
Model number	HHQ9(DHC8), HHQ9-2, 4, 6
Working power	AC220V 50Hz
Time controll range	1min-168h
Timing error	less than or equal to 0.5 or minus 0.5s/day
Programmable number	HHQ9: 10 groups switches program
	HHQ9-1: 80 groups switches program
	HHQ9-2: 4 groups in single way, 8 groups in total
	HHQ9-4, 6: 6 groups in single way, 24/36 groups in total
Output	HHQ9: 1 way output
	HHQ9-1: 1 way output
	HHQ9-2, 4, 6: 2, 4, 6 way output
Contact capacity	HHQ9: 16A AC220V(resistance)
	HHQ9-2, 4, 6 single way less than or equal to 500W
Power consumption	less than 3.5VA
Ambient temperature	minus5-40 centigrade
Electrical life	1*105
Battery	rechargeable battery(equipped)
Dimension	4848120mm
Installation	panel mounting

Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.

Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.

The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.

Xinling is ready for creating a magnificent tomorrow together with you!
