Microduct Connector for Blowing Fiber Cable

Microduct Connector for Blowing Fiber Cable
Price: US $ 0.441-0.501/Piece
Trade Terms: FOB
Min Order: 200/Piece
Pay Type: L/C,T/T,Paypal
Prod Model: 14/10mm
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Red Color: 3mm~16mm
Transmission Medium: Multimode
Structure: LC
Number Of Cores: Multi-Core
Ferrule Endface: PC(',UPC)

Product Description

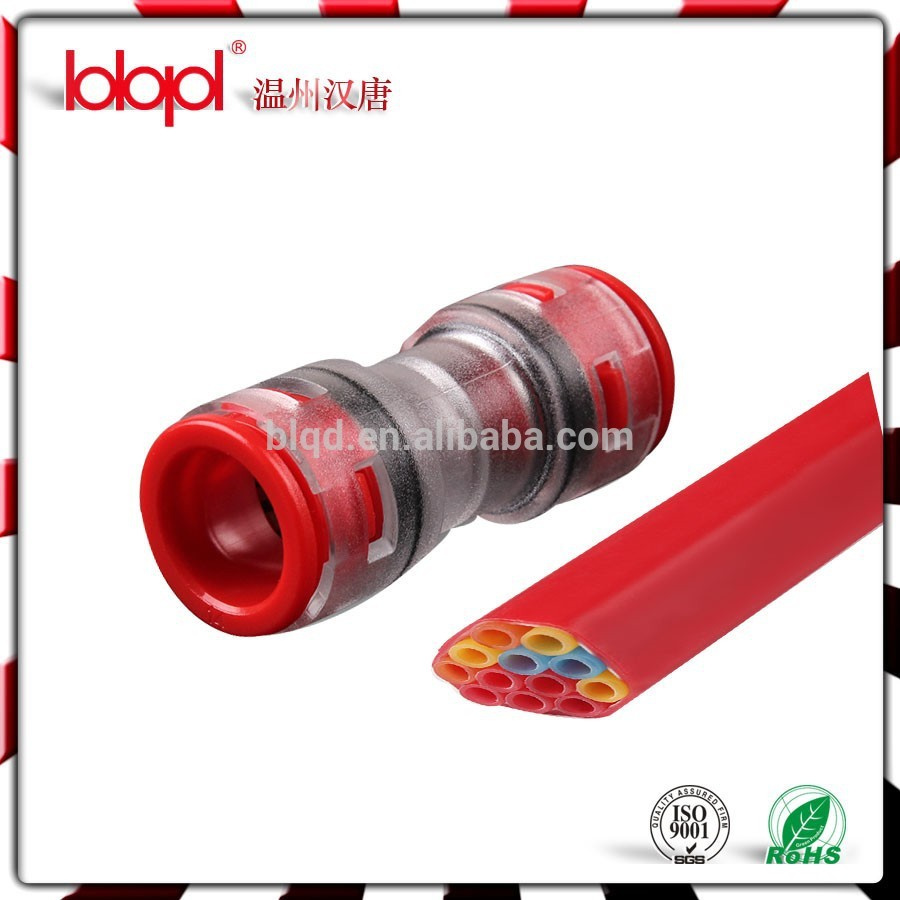

Microduct Connector for Blowing Fiber Cable



 Specifications



Clear Connector for MicroDuct

Easy installation
can be connected and disconnected 10 times

 System Benefits

l Installation time reduced.

l Locking clips available in order to prevent microducts accidental disconnection.

l Transparent body allows inspection of correct installation of the cable.

l Anti shock cover available in order to prevent damages. It's special design allow inspection of correct installation of the cable also when installed. Locking clip function included.



Technical Specifications



Fittings         Accessories:

Body:           Transparent PA                            Locking clip:    POM

Cartridge:    Nickel plated brass                     Anti shock cover: PP

Collect:        Black POM

Seals:          NBR

Lock claws: Stainless steel



Performance

Temperature:

Working temperature: -15°C ~ +45°C

 Pressure:

Working pressure: 15 bar

Burst pressure: >45 bar



Specification:

No.

Description

Model No.

For Tube OD(mm)

1

3mm~16mm





2







3









Company Information

Installation time reduced.
l Locking clips available in order to prevent microducts accidental disconnection.



 Specifications



Clear Connector for MicroDuct

Easy installation
can be connected and disconnected 10 times

 System Benefits

l Installation time reduced.

l Locking clips available in order to prevent microducts accidental disconnection.

l Transparent body allows inspection of correct installation of the cable.

l Anti shock cover available in order to prevent damages. It's special design allow inspection of correct installation of the cable also when installed. Locking clip function included.



Technical Specifications



Fittings         Accessories:

Body:           Transparent PA                            Locking clip:    POM

Cartridge:    Nickel plated brass                     Anti shock cover: PP

Collect:        Black POM

Seals:          NBR

Lock claws: Stainless steel



Performance

Temperature:

Working temperature: -15°C ~ +45°C

 Pressure:

Working pressure: 15 bar

Burst pressure: >45 bar



Specification:

No.

Description

Model No.

For Tube OD(mm)

1

3mm Straight Connector

S03

3-3

2

4mm Straight Connector

S04

4-4

3

5mm Straight Connector

S05

5-5

4

6mm Straight Connector

S06

6-6

5

7mm Straight Connector

S07

7-7

6

8mm Straight Connector

S08

8-8

7

10mm Straight Connector

S10

10-10

8

12mm Straight Connector

S12

12-12

9

14mm Straight Connector

S14

14-14

10

16mm Straight Connector

S16

16-16
