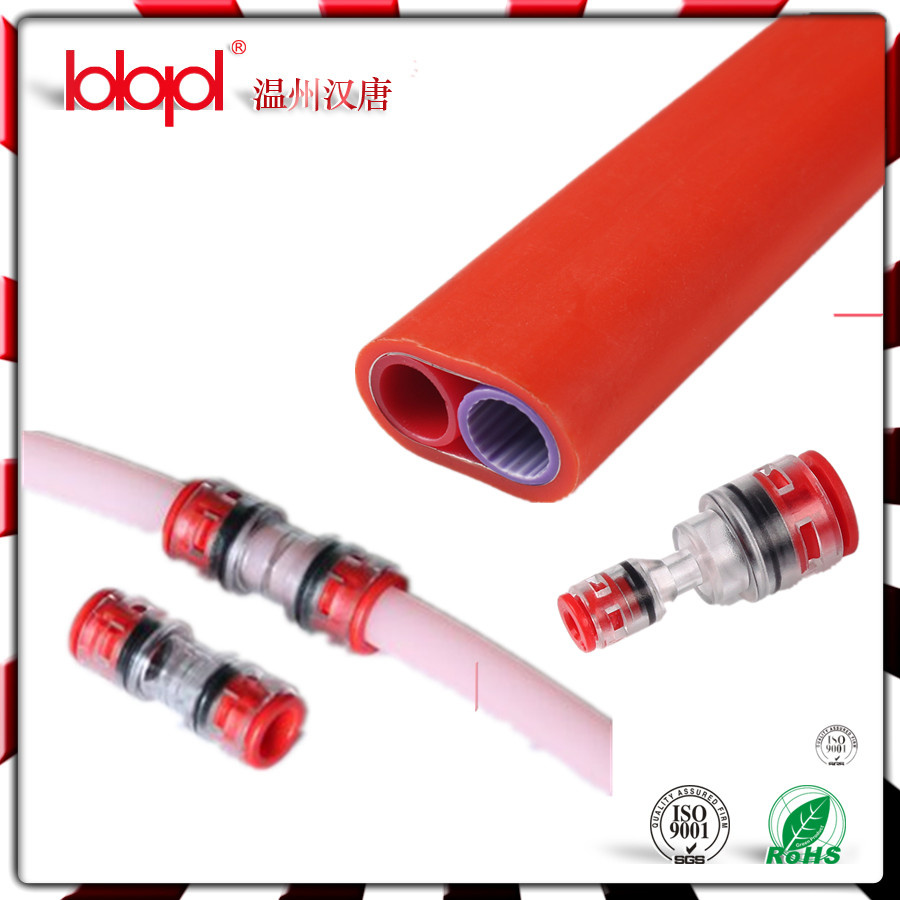

Microduct Connector, Straight Connector, Fibre-Optical Fitting 5mm

Microduct Connector, Straight Connector, Fibre-Optical Fitting 5mm
Price: US $ 0.501/Piece
Trade Terms: FOB,CFR,DAP
Min Order: 1000/Piece
Pay Type: L/C,T/T,Paypal
Prod Model: 5mm
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

The Push-Fit Connectors make splicing MicroDuct fast and easy. Simply push the MicroDucts into the center of the coupling. No tools are required. The coupler can be connected and disconnected 10 times and still maintain the high performance requirements for air blown installation systems.

Push-Fit MicroDuct connector operate at 15 BAR (218 psi) with a maximum permissible leakage rate of 1CC/min. This is equivalent to 1 bubble every 3 seconds. Higher pressures have been used in the field with no increase in leakage rate. Quick Burst rating is 25 BARS (363 psi).




Technical Specifications

Fittings         Accessories:
Body:           Transparent PA                            Locking clip:    POM
Cartridge:    Nickel plated brass                     Anti shock cover: PP
Collect:        Black POM
Seals:          NBR
Lock claws: Stainless steel

Performance
Temperature:
Working temperature: -15°C ~ +45°C
Pressure:
Working pressure: 15 bar
Burst pressure: >45 bar

Specification:

No.

Description

Model No.

For Tube OD(mm)

1

3mm Straight Connector

STR03

3-3

2

4mm Straight Connector

STR04

4-4

3

5mm Straight Connector

STR05

5-5

4

6mm Straight Connector

STR06

6-6

5

7mm Straight Connector

STR07

7-7

6

8mm Straight Connector

STR08

8-8

7

10mm Straight Connector

STR10

10-10

8

12mm Straight Connector

STR12

12-12

9

14mm Straight Connector

STR14

14-14

10

16mm Straight Connector

STR16

16-16
