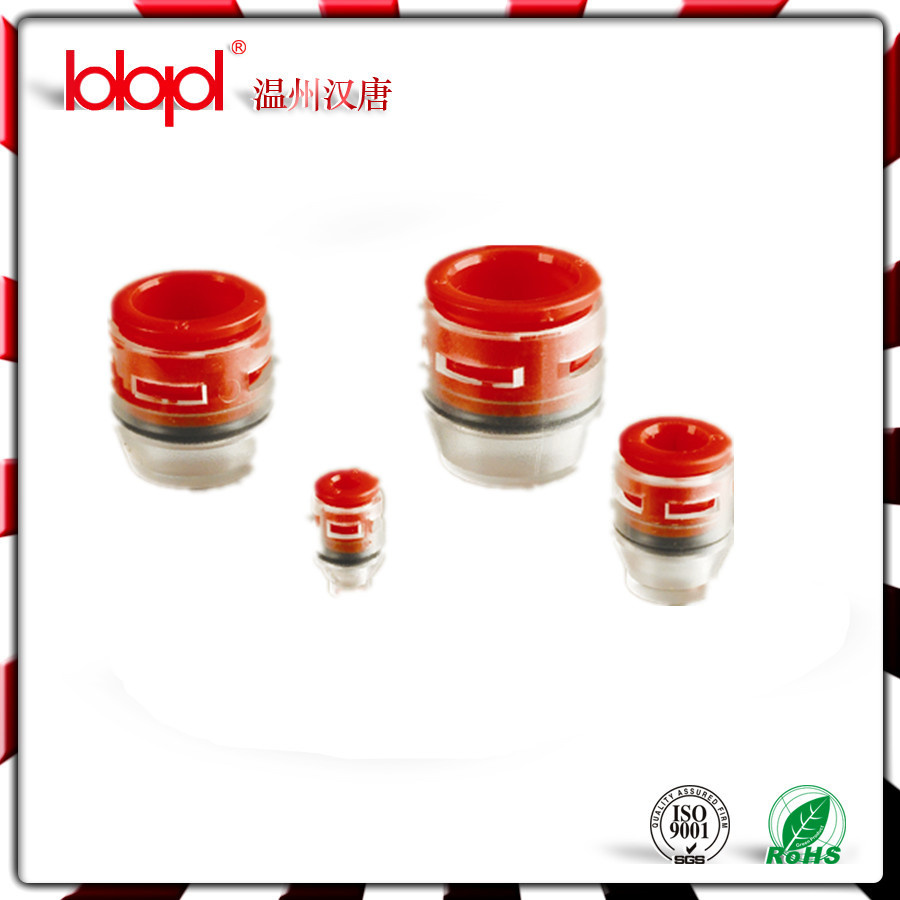

Microduct End Stop 8mm

Microduct End Stop 8mm
Price: US $ 0.451-0.501/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 200/Piece
Pay Type: L/C,T/T,Paypal
Prod Model: EST8mm
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Product Description
The Push-Fit Connectors make splicing MicroDuct fast and easy. Simply push the MicroDucts into the center of the coupling. No tools are required. The coupler can be connected and disconnected 10 times and still maintain the high performance requirements for air blown installation systems.

Push-Fit MicroDuct connector operate at 15 BAR (218 psi) with a maximum permissible leakage rate of 1CC/min. This is equivalent to 1 bubble every 3 seconds. Higher pressures have been used in the field with no increase in leakage rate. Quick Burst rating is 25 BARS (363 psi).

Feature:
Material: Clear PC
Leakage Pressure: 15bar
Negative Pressure: -750mmHg(10 Torr)
Proof Pressure: 25bar
Temperature Range: -10 ~ 60ºC
For Tubing Type: PE, PU, Nylon, Polyurethane
No.Model No.For Tube OD(mm)
1EST033
2EST044
3EST055
4EST066
5EST077
6EST088
7EST1010
8EST1212
9EST1414
10EST1616
