| Prod Model: |
RS-FB80-C |
| Solar Panel: |
Monocrystalline Silicon |
| Model: |
Remote Control |
| Luminous Flux: |
3000lm |
| Mounting Height: |
5-6m |
| Power Supply: |
Solar |
| Lamp Body Material: |
Aluminum Alloy |
| Power: |
20w |
| Application: |
Garden |
| IP Rating: |
IP65 |
| Certification: |
RoHS |
| Input Voltage: |
12v |
| With Light Source: |
With Light Source |
| LED Chips Brand: |
Bridgelux |
| Color Temperature: |
3000-6500k |
Product Description

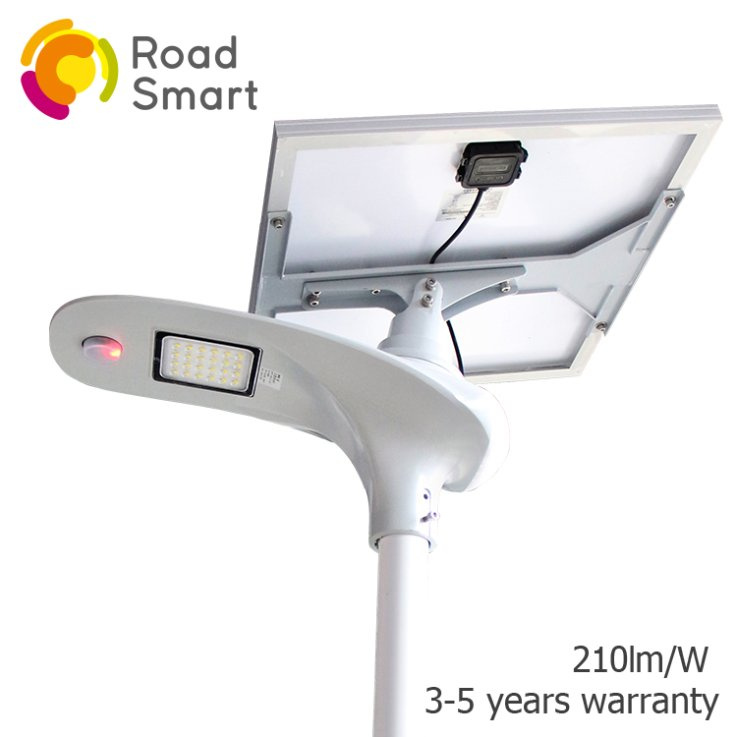

All In One Waterproof Outdoor Integrated Solar Street Light
WHY CHOOSE Road Smart?
OUR VALUE MESSAGE IS "QUALITY IS OUR CULTURE''
1. Unique design with solar panel adjustable & battery protected perfectly
2. Above 50PCS of Patent on appearance, structure and circuit
3. Very easy to install for any one without engineer experience
4.8years' experience on solar controller and 5years' experience on LED driver
5. Combine solar panel, battery, LED lamp together, DIY design for simple maintenance
6. Low costing on transportation & installation & maintenance7. Lead time: Samples within 3days, bulk order about 5-10 working days. Specification: | Product name | Solar Flybird Light |
| Type | RS-FB50 | RS-FB65-C | RS-FB80-C |
| Lamp power | 15W | 15W | 20W |
| Solar panel | Monocrystalline |
| 50W/18V | 65W/18V | 80W/18V |
| Battery | LiFePO4 battery | Ternary battery |
| 170WH/12.8V | 195WH/11.1V | 275Wh/11.1V |
| LED qty | 24PCS |
| Luminous Flux | 2260lm | 3360lm | 3000lm |
| Charge time | 5.5hrs |
| LED chip | Bridgelux |
| Color temperature | 3000-6500K |
| CRI | ≥70Ra |
| Light distribution | Bat wing with polarized light |
| Lighting time | 2-3days |
| Sensor area | 5-10 meters |
| Lighting last | 20-30s |
| Working temperature | -20-60ºC |
| Lifetime | ≥50000 hours |
| Material | Solar Panel: Mono crystalline |
| Body: Socreat Patent design, High quality aluminum alloy, can support 100kgs |
| Mounting height | 5-6meters |
| Installation spacing | 10-30meters |
| Warranty | 3years | 2years | 2years |
| Net weight(kgs) | 16 | 17 | 20 |
| Gross weight(kgs) | 18 | 19 | 22 |
| Volume weight(kgs) | 20 | 22 | 25 |
| 20GP(PCS) | 310 | 290 | 270 |
| 40GP(PCS) | 580 | 550 | 500 |

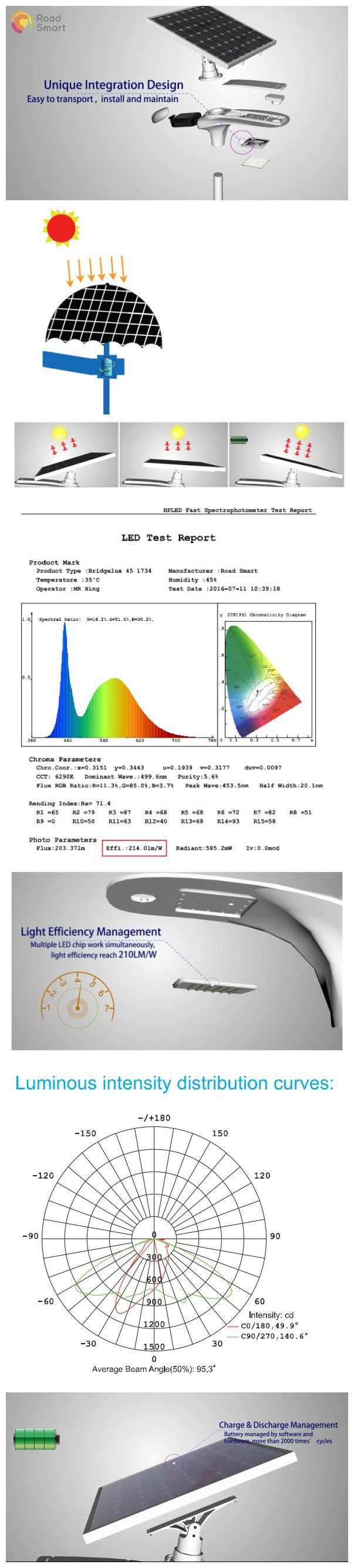

Advantage: 1. Unique Integration DesignIntegrated solar panel, battery, LED body and controller into one complete system, save cost on transport, installation and maintance. 19% photoelectric conversion efficiency mono solar panel looks like an umbrella to protect battery from high temperature and extend th elifetime.
Solar panel adjustable manually in vertical and horizontal direction, ensure the maximum efficiency of solar energy.

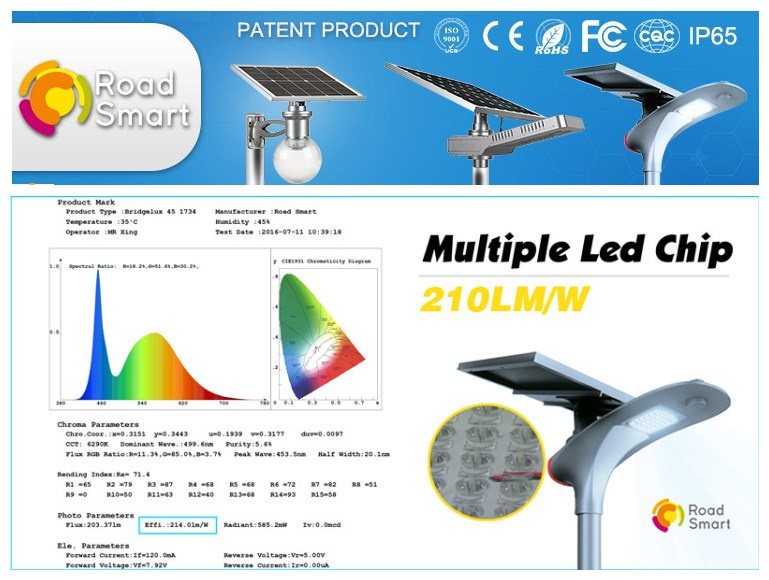

2. High Light Efficiency
Multiple LED chip work simultaneously, light efficiency could be 160lm/w, light luminance improve 75% than old design lights.
3. Light distribution
Patent bat-wing lens with polarized light customizable designed, lighting area mich wider, the maximum of using the lighting all light on the road.
4. High Capacity Battery
LiFePO4 battery over 2000 times' cycle charge & discharge, extend life time to 8 years and high temperature resistance.

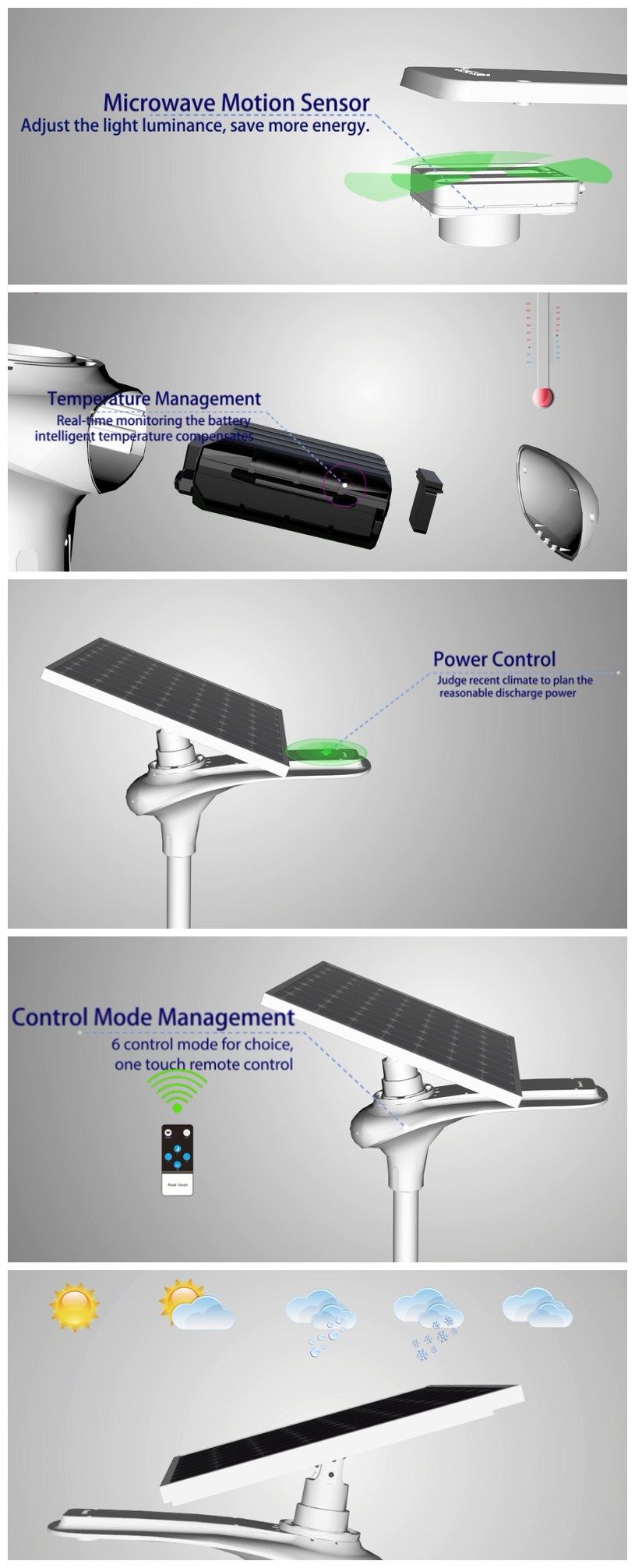

5. Microwave Motion Sensor
Radar controled, called doppler sffect. To test ambient movement intelligent, auto-adjust light luminance. More intelligent, energy-saving.
6. Temperature Management
Real- time monitoring the battery, intelligent temperature compensate.
Temp>50ºC, switch fan to cooling.
Temp<-5ºC, swithch heat to warming-up.
Protect the battery by control the working temperature.
7. Power Control
Judge the recent climate automatically, to plan the resonable discharge power, balance the light luminance and discharge time in a perfect degree.

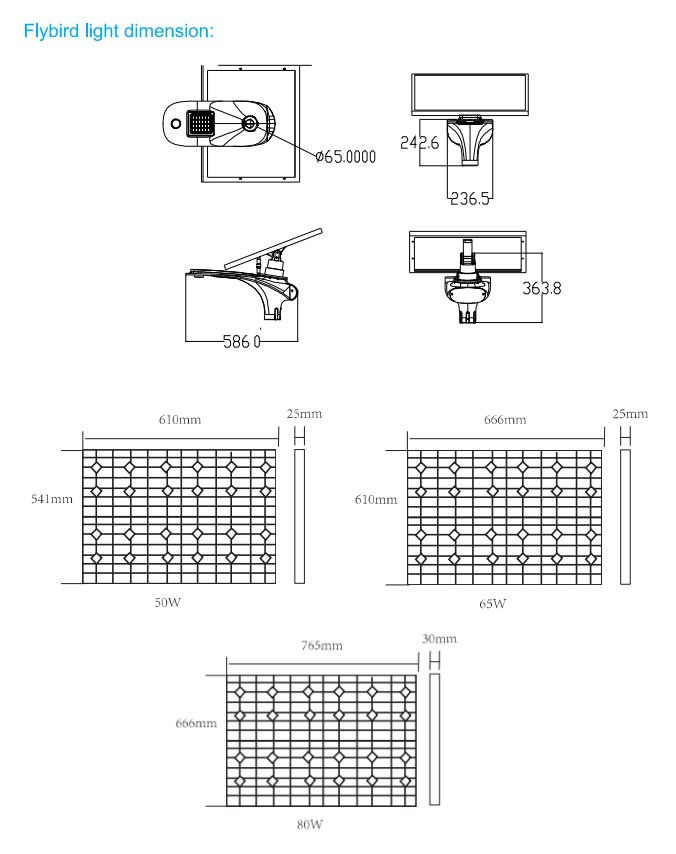

Dimension:

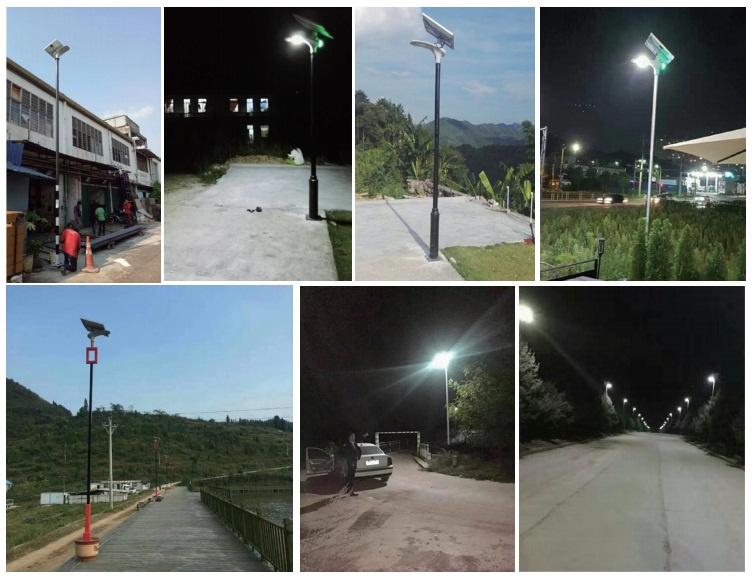

Applications: Widely used in Rural road, Courtyard, Villa, Park, Square, Farm, School, Factory, Slow lane etc...The places where need outdoor lighting and with enough sunshine.
Trade Terms: 1. Body material: Aluminium alloy.
2. Solar panel with high efficiency monocrystalline silicon.
3. Lighting time is about 3-5days. Solar battery charging.
4. Sample Policy: Sample should be paid, delivery time within 3 workdays.
5. Mini Order: 10sets. Lead time will be 5 workdays after receipt of deposit.
6. Payment term: T/T(30% in advance, balance before shipment), Western Union, Paypal, L/C.
7. Package: Neutral packing. Company Information: Socreat Electronics Technology Limited is a high-tech joint venture enterprise from Hongkong and Mainland, specializing in R&D, production and sales of intelligent LED lightings Headquarter office in Shenzhen, factory area is about 3000 square meters. Based on "Come from nature, create our future" conception, we are devoted to R&D, production and sales of high quality outdoor LED light, intelligent solar street light, motion sensor LED light, portable solar lighting system.
Socreat has a professional R&D team which composes of experienced LED driver engineers and lighting designers. We have a solid technical strength and rich experience in product design, and we cooperate with professors and experts from Xi'an Jiaotong University and Xi'an University of science and technology to provide customers the best products.
Road Smart is a new brand of Socreat company, the brand management system in mainland officially forming in 2016. We are sure this new brand will be super star in the whole world, leading the development of solar street light market. As a leader, we insist on a direction of "expert in intelligent lighting, light up the world", keeping R&D in intelligent lighting products and improving the quality of light. We are creating a more comfortable, more energy-efficient, higher quality living
Environment by wisdom.
