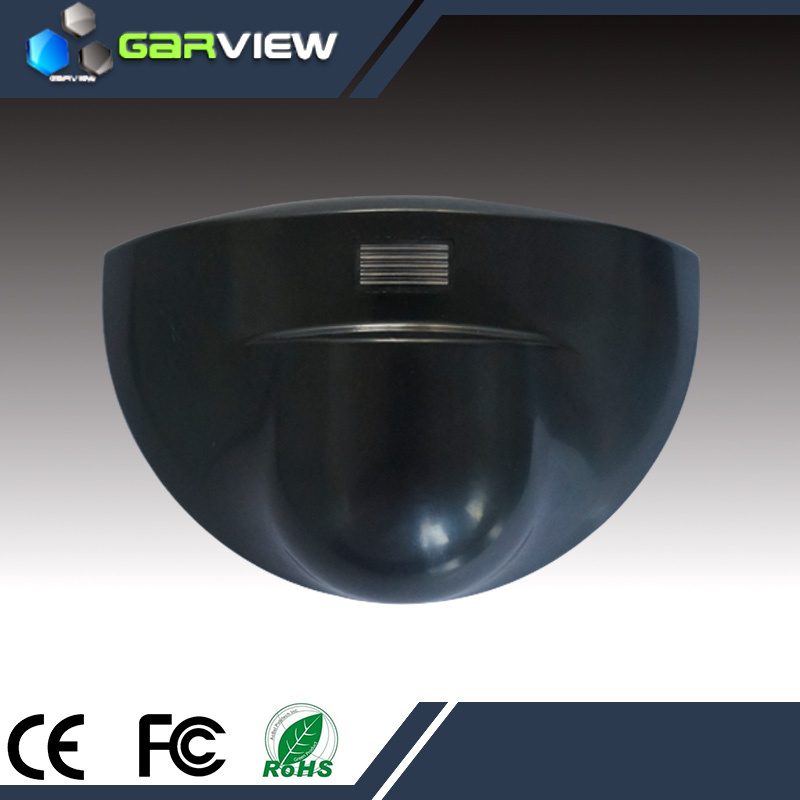

Microwave Movement Sensor for Interior Automatic Glass Sliding Door

Microwave Movement Sensor for Interior Automatic Glass Sliding Door
Price: US $ 14-20.5/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: GV-606
Technology: Microwave&Microwave Disposer
Frequency: 24.125GHz
Transmitting Power: 20dBm Eirp
Launch Frequency Density: 5MW/Cm2
Installation Height: 4m
Detection Mode: Motion Type
Detection Speed: 5cm/S
Detection Range: Detection Range:4m*4m(Installation Height 2.2m)
Protection Class: IP54

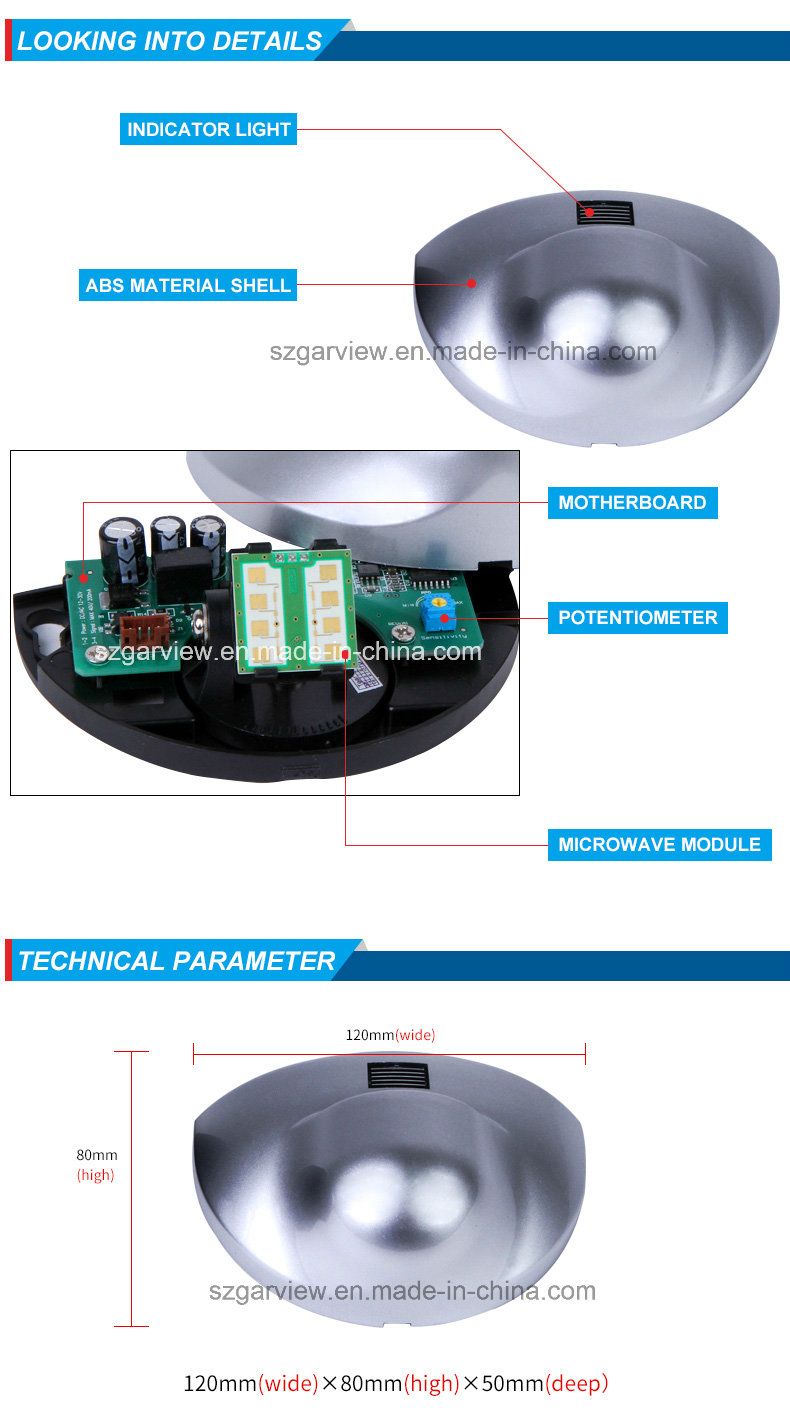

Dimension: 120mm(W)*80mm*50mm(D)
Type: Microwave Sensor Switch
Principle: Hall
Wires: Two-Wires
Standard: Standard
Size: 120 Type
Certification: CE
Application: Automatic Door

Product Description

microwave movement sensor for interior automatic glass sliding door

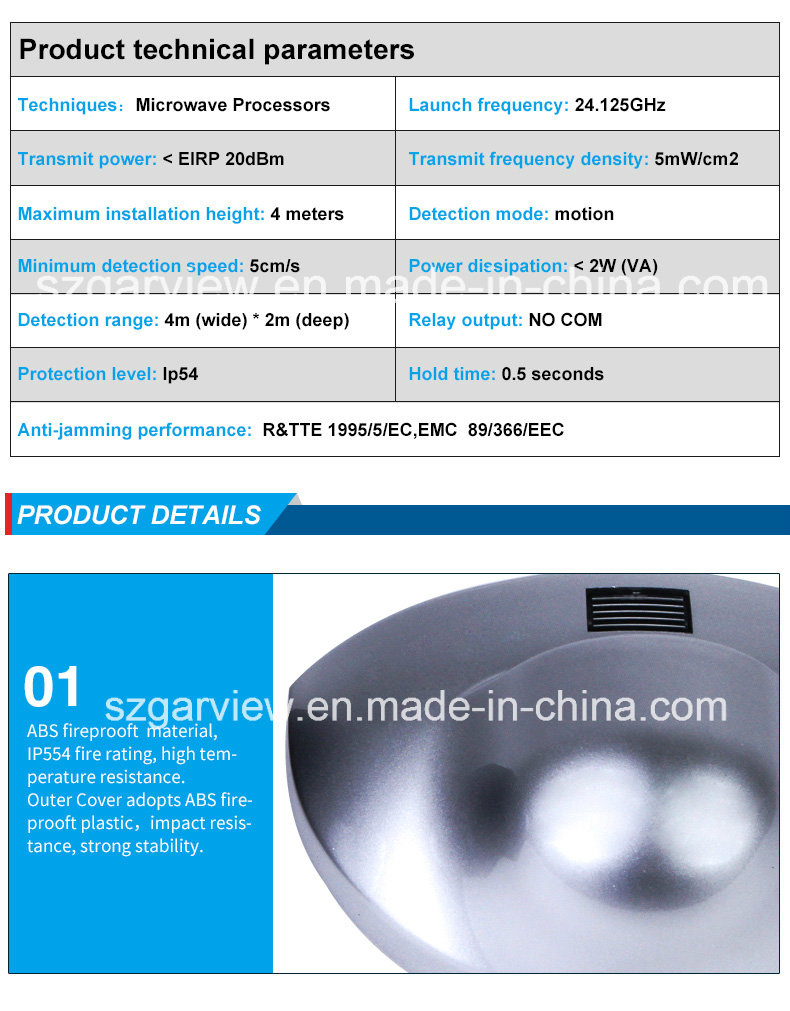

 Product Parameters
TechnologyMicrowaveµwave disposer
Frequency24.125GHz
Transmitting power20dBm EIRP
Launch frequency density5mW/cm2
Installation Height4M(MAX)
 Installation Angle0-90 degree
Detection ModeMotion Movement
Min detection speed5cm/s
Power2W(VA)
Detection range4m*4m(Installation Height 2.2M)
Maximum voltage42AC-60V DC
 Maximum Current1A
Maximum switching power30W(DC)/60VA(AC)
 Retention time0.5S
Shenzhen Garview Technology Co., Ltd, has been specialized in automatic door control, access & attendance products for years. Garview series products are widely used in automatic door control system, business/office building access control and attendance checking systems, bank management system and medical purification control system.

We own rich experience in automatic door controlling system and product application in the market. Garview provides full series accessories for automatic door:

Infrared safety sensor, Motion activation sensor, funtional switching selector, hand free sensor, wireless touch switch, keypad access, Power for access, Electronic bolt, EM lock for sliding door…

With high quanlity products, Garview items are regularly provided to different automatic door factories, engineer contractors and export merchants. Garview Company has become a globalized professional in this field since our products exported to oversea markets such as Iran, Tukey, Portugal, the Netherlands, and has gained a good reputation among customers. In the spirit of innovative, Gariview focuses on providing high quality, advanced & pragmatic product to serve worldwide markets, in the fields of automatic door access control, intelligent and security guard.
