| Prod Model: |
VT200W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tracking Platform: |
Web-Based and Mobile APP |
| Fuel Monitoring: |
Yes |
| Live Tracking: |
Yes |
| External Antennna: |
Yes |
| Detecting Car Door: |
Yes |
| Data Logger: |
2MB |
| Built-in Battery: |
650mAh |
| I/O: |
2 Inputs, 2 Outputs |
| Active RFID: |
Yes |
| Sos Button: |
Yes |
Product Description
Middle East Popular GPS Car Tracker With Smart Phone Reader GPS tracker VT200 is advanced terminal with GPS positioning and GSM connectivity, which is able to get device coordinates and other data and transfer them via GSM network. This device is perfectly suitable for applications where location acquirement of remote objects is needed. So you can track your remote objects (trucks, cars etc.) quickly and easily.
In case of losing connection GPS tracker can store more than 10,000 records, and once the connection is established the device will send stored data via GPRS. So you won't lose your data(coordinates, sensors data and etc.)
VT200 also plus a newest car alarm solution --- Smart phone Reader. This is as RFID reader, it can connect to your phone as detector. When you with phone leaving the car, the system will be armed automatically, if someone opens the door/ignition/moving your car, system will send alert, you will get alert notification on your phone, immobilizer scenario which enables to start engine only after reading your phone. When you walk close to the car and your phone is recogized, system will be disarmed.
1. Applications
* Vehicle Real Time Tracking
* Vehicle Security/Anti-Hijack
* Fleet Management
2. Features & Functions
* GPS coordinates and I/O data acquisition;
* Real time tracking;
* Smart algorithm of data acquisition (time, distance, angle, ignition and event based);
* Sending acquired data via GPRS (TCP/IP and UDP/IP protocols);
* 10,000 records saving into flash memory;
* Events on I/O detecting and sending via GPRS or SMS;
* One configuration file enables convenient configureation;
* Multi geofence zones (rectangular or circle);
* Deep sleep mode(saving vehicle's accumulator);
* Built-in 650 mA battery;
* Advanced overspeeding detection;
* Immobilizer scenario which enables to start engine only after reading smart phone reader;

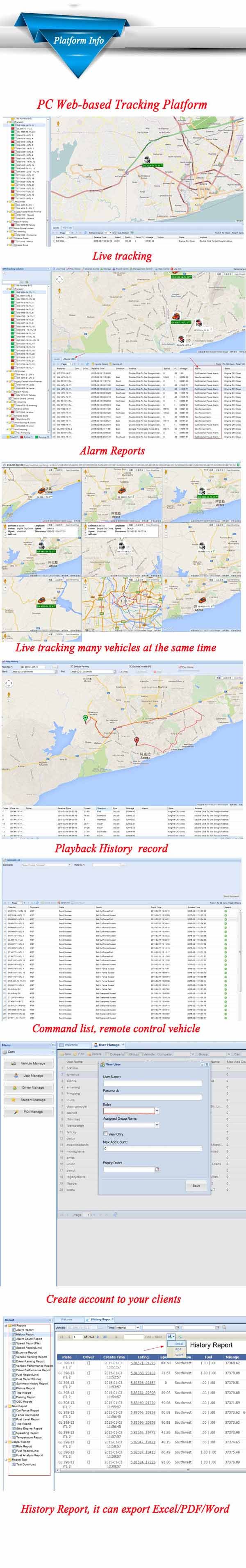

* Real time tracking via the web-platform
* Get location physical name via SMS & from the web-platform
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* SOS Panic button
* Remote Engine cut off to stop the car in safe condition
* Wiretapping/remote listening
* I/O: 2 Inputs, 2 Outputs, 1 Analog Input
* Analog input for Fuel sensor detecting/monitoring (optional)
* Cut extetnal power alert
3. Specifications
| Items | Specifications |
| Dimension | 75*54*25mm |
| Weight | 123g |
| Input voltage | DC 9V~24V/1.5A |
| Back-up Battery | 650mAh/3.7V |
| Power Consumption | 65mA standby current |
| Operating Temperature | -20°C~55°C |
| Humidity | 5%~95% |
| Battery Work Time | 33 hours in power-saving mode and 8 hours in normal mode |
| LED | 2 LED lights to show GPS, GSM status |
| Button | 1 SOS and 1 power on/off |
| Microphone | Default |
| Memory | 2M Byte |
| Sensor | Motion sensor |
| GSM Frequency | GSM 850/900/1800/1900MHz |
| GPS Chip | Latest GPS SIRF-Star III Chipset |
| GPS Sensitivity | -161dB |
| Positioning Accuracy | 10meters, 2D RMS |
| I/O | 2 Input
1 Analog Input Detection
2 Output
1 USB port |

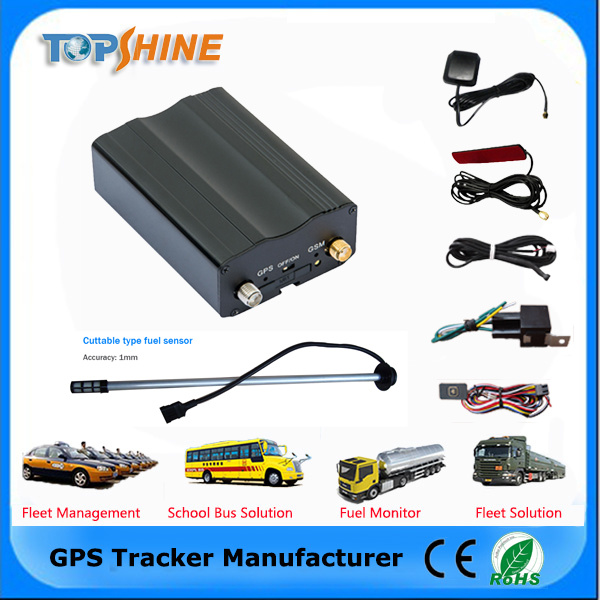

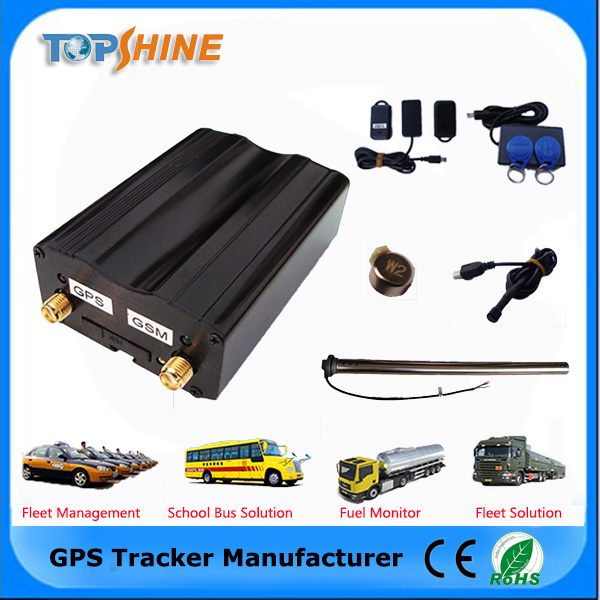

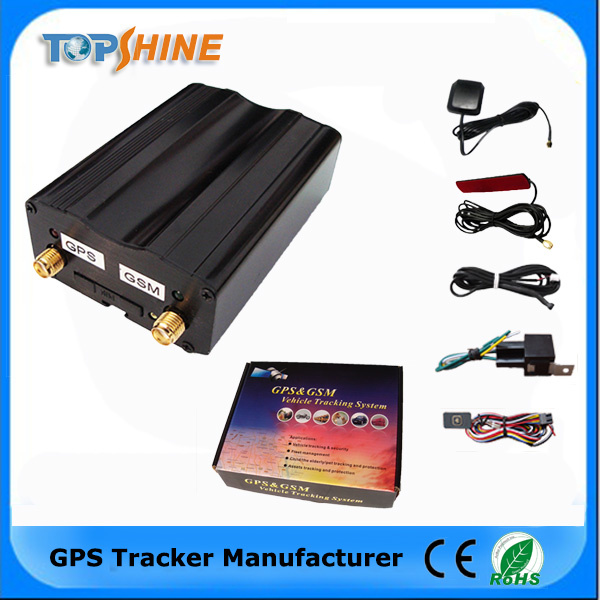

4. Package & AccessoriesVT200 unit: 1 unit
Wire : 1 piece
Relay: 1 piece
Microphone : 1 piece
SOS button :1 piece
GPS antenna :1 piece
GSM antenna : 1 piece
Optional Accessories* Ultrasonic fuel Sensor
* Cuttable fuel sensor
* Smart Phone Reader
* Crash Sensor
* Temperature Sensor
* USB configure Cable
5. Welcome to access Topshine free tracking softwarePC: www.track-car.com
Mobile Phone: http://www.track-car.com/M
User name: hongkong
Password: 123
6. Our Service* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No any monthly or yearly charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code. 7. Payment&Shipment
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.
