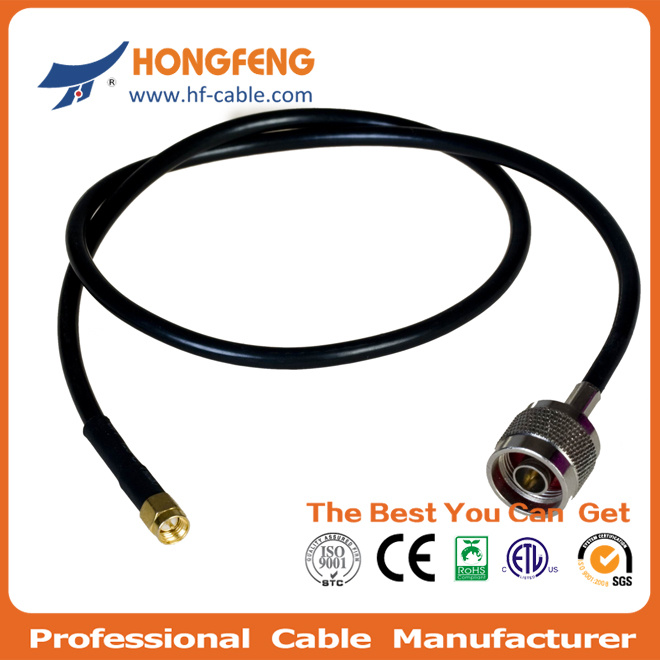

Mil-C-17 Rg174 Coaxial Cable

Prod Model:	RG174 Coaxial cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Conductor 1:	Tc/Spc 7*0.16 mm
Dielectric:	1.50mm PE Insulation (Foam/Solid)
Shielding:	80*0.10mm Cu/Tc/ Spc Wire
Outer Conductor:	2.1mm
Jacket:	2.95mm PVC
Impedance:	75 Ohms
Drop Cable:	Rg174 Coaxial Cable
Certificates:	ISO9001/Ce/RoHS/UL/ETL
Application:	Long Distance Symmetric Cable
Cover Material:	PVC
Certification:	ETL
Model:	Coaxial
Brand:	Hf/OEM
Type:	Coaxial
Conductor Material:	Tc/Spc

Product Description

Our services:
1, Good quality guarantee
2, CE. ROHS. ETL. ISO
3, Factory Price
4, OEM is ok
5, Short delivery time



1. Construction:

7*0.16mm Cu./TC (Tinned copper) + 1.50mm PE + 1.65mm (80*0.10*90%) Cu./TC braiding + 2.95mm PVC


2. Electrical Characteristics:


Impedance(Ohm): 50
Capacitance(pF/m): 96
Velocity(%): 70
Bending Radius(mm): 13
Max. Oper. Voltage(VMS): 1200
Max. Oper. Frequency (MHz): 3000
Operating Temp.: -55- +200



Main products:
1) RG series Coaxial Cable: Rg59, rg6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg213, rg214, RG316, etc;
2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc;
3) Vatc series Coaxial Cable: 17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8;
4) TRUNK Cable: 412, 500, 540;
5) LMR SERIES: LMR200, LMR400, LMR600;
6) Network Cables: Lan Cable CAT3, Lan Cable CAT5, Lan Cable CAT5e, Lan Cable CAT6, Lan Cable CAT7;
7) Combined Cable: Siamese Cables: RG59+2C, RG6+lan cable.

Note: If the specification is not you need, please tell me and i will offer you price according your requirements.






Mr. Leo
Hangzhou Hongfeng Cable Co., Ltd.
www.hf-cable.com
www.hf-cable.com.cn
Tel: +86-571-58615552
Fax: +86-571-63816227
Mb:  +86-18268847560




Attenuation(Typical)
Frequency(MHz)	Attenuation(dB/m)
100	0.453
400	0.912
1000	1.457
3000	2.572
