MIL Spec PTFE Insulation Coaxial Cable RG178

MIL Spec PTFE Insulation Coaxial Cable RG178
Price: US $ 0.366-0.434/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 2000/Meter
Pay Type: L/C,T/T
Contact Supplier
Showroom Product Company Profile
Prod Model: RG178
Insulation: PTFE
Jacket: FEP
Outer Conductor: Silver plated copper braid
Application: RF Cable
Certification: CPR
Conductor Material: silver plated copper-clad steel
Cover Material: FEP
Type: COAXIAL
Model: RG178

Product Description

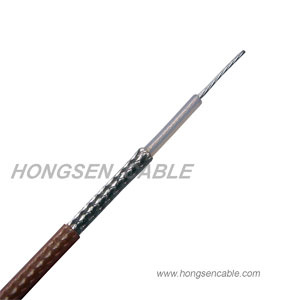

RG178 RF Coaxial Cable with Solid PTFE Insulated, Silver Plated Copper Braid, 1.8mm OD.

Physical properties:
Inner conductor: 7/0.10mm stranded silver plated copper-clad steel,
Insulation: 0.84mm PTFE
Outer conductor: Silver plated copper braid, 96% coverage
Jacket: 1.80mm FEP

Electrical properties:
Capacitance (pF/m): 96.5
Impedance (Ω ): 50.0
Velocity of Propagation (%): 69.5
Conductor DCR (Ohm/km): 800.5
Outer Shield DCR (Ohm/km): 47.9
Max Operating Frequency (MHz): 3000.0
Max Operating Voltage (RMS): 1000.0
Operating Temp Range (º C): -55 to 200

Typical Attenuation ( @ 20 ºC)

Frequency    (MHz) Attenuation   (dB/100ft) Attenuation (dB/100m)
5010.534.4
10014.346.9
20020.065.6
40030.098.4
70040.0131.2
90047.0154.2
100049.0160.8

RG178 coaxial cable was used in mobile phones, home applications, video, audio, security and medical equipment. Silver Plated Copper covered steel as inner conductor, PTFE dielectric, Silver Plated copper as braid wire, and FEP as jacket.
Hangzhou Hongsen Cable Co., Ltd. was established in 2002, a manufacturer specializes in RF & Microwave Coaxial Cables. mainly serving the defense, telecommunications, satellite, test and measurement markets.

Our products cover wireless RF Transmission cable, Mini Coax cable, Semi-Rigid, Semi-Flexible Microwave cable, RG MIL-C-17 Spec Cables, CCTV, CATV/MATV cable, satellite cable, video cable. Besides the standard cable, customer required cables are also available in our company.

Quality Control

Hongsen has developed a comprehensive quality assurance program and quality system. This program and system establishes controls throughout the entire manufacturing cycle -- from raw material purchasing and product manufacturing to end-item delivery. It also assures meeting quality objectives and minimizes the possibility of compromises which could affect product quality and reliability. The quality assurance program is complete and responsive to all requirements of ISO9001: 2000.

Our Mission

We are dedicated to providing our customers competitive price and excellent service.
