Milliohm Sampling Shunt Resistor for Meters

Name: Milliohm Sampling Shunt Resistor for Meters
Brand: all-electronics-online.com
SKU: 696413255
Availability: InStock
Rating: 5 (113 reviews)

Price:	US $ 0.1-0.2/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Environmental Certification:	ISO14000
Quality Certification:	ISO9001
Other Certification:	RoHS
Resistance:	Fixed Resistor
Function For Resistance:	Shunt Resistor
Installation:	DIP Resistor
Package Type:	Surface Mount
Type:	Photoresistor
Material:	Matel Oxide Resistor
Brand:	Liwang

Product Description

Milliohm Sampling Shunt Resistor for meters

Electric data

Rated power(W)	Resistance(mΩ)
2	10-20
3	5-10
4	3-10
5	3-10

Physical data:

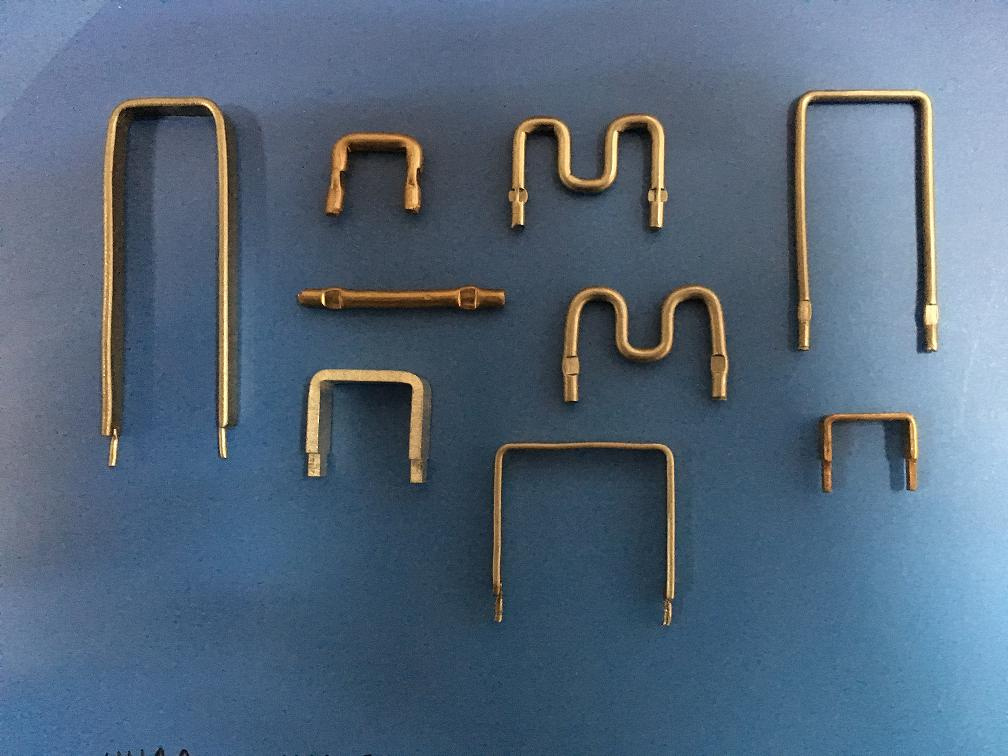

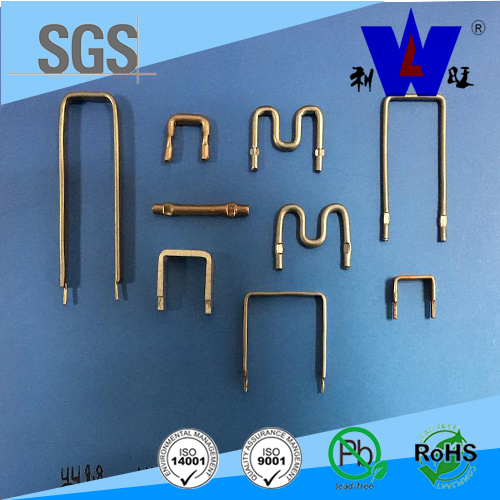

The resistors have many differrent types.
Name	Picture	Features
M type		To increase the resistance, some resistance can be made of folded handle, a M-type or other shape, and will not produce too much inductance. In order to satisfy the customers ,this type of resistance presser foot treatment, so the resistor are easier to position in the circuit board .
Thin wire

Performance data:

Conditions	The largest percentage change in resistance ΔR%
Work at 25 for 1000 hours at full load	1%
place in 100 hours in wet conditions	1%
At -40 ~ +150 temperature cycle 1000	1%

Strength:
1. Good material, sampling resistance precision and stable.
2. Various type.
3. Good service: Make according to customer requirement.
4. The hole is suit for two size screw.

Product Description:
1. Modle type: Shunt Resistor For Electicity Meter 250 micro ohm
2. Material: 6J13 manganin and pure copper(reach the country GB614599 F2 standard)
3. Shunt welding mode: Electric Beam Welding
4. Resistance value tolerance: ± 5%
5. Shunt type: The shunt should be mountable type with holes for screw fixing
6. Termination: Integrated lead wires are available
7. Temperature: Independent from temperature variation with low TCR value,
8. Characteristics: TC < 50PPM/K
9. Aging: 10 hours under 120 deg.
10. Power loss: 50 milli watt

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
