Mimo Omni Directional Antenna

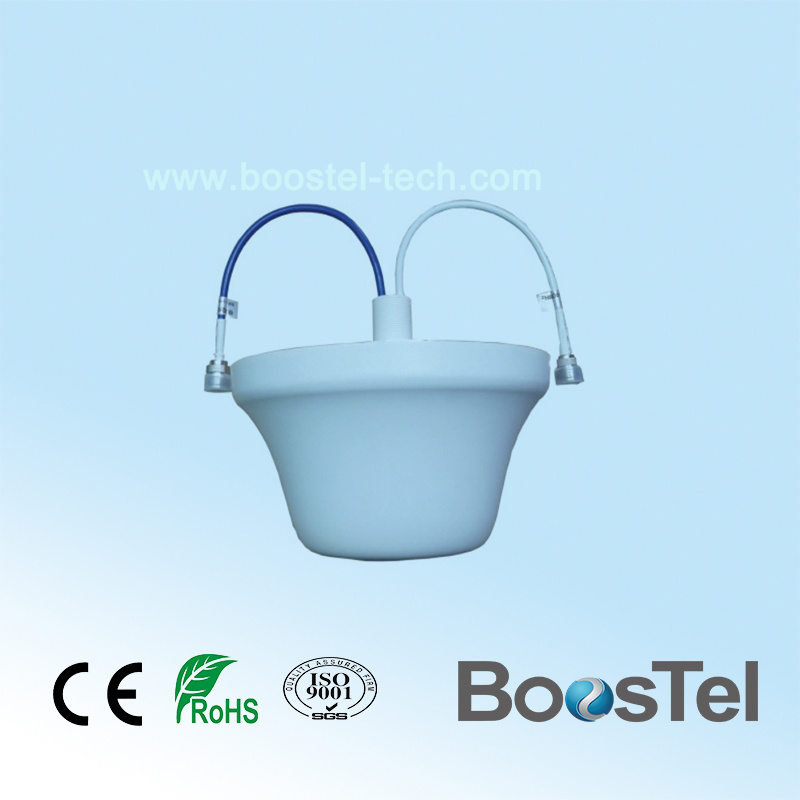

Name: Mimo Omni Directional Antenna
Brand: all-electronics-online.com
SKU: 815064125
Availability: InStock
Rating: 4.4 (70 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BT-0106082605360NF
Usage:	Radar Antenna
Operating Wavelength:	Medium Wave
Material:	Steel Plate
Directionality:	Omnidirectional Antenna
VSWR:	1.5~2

Product Description

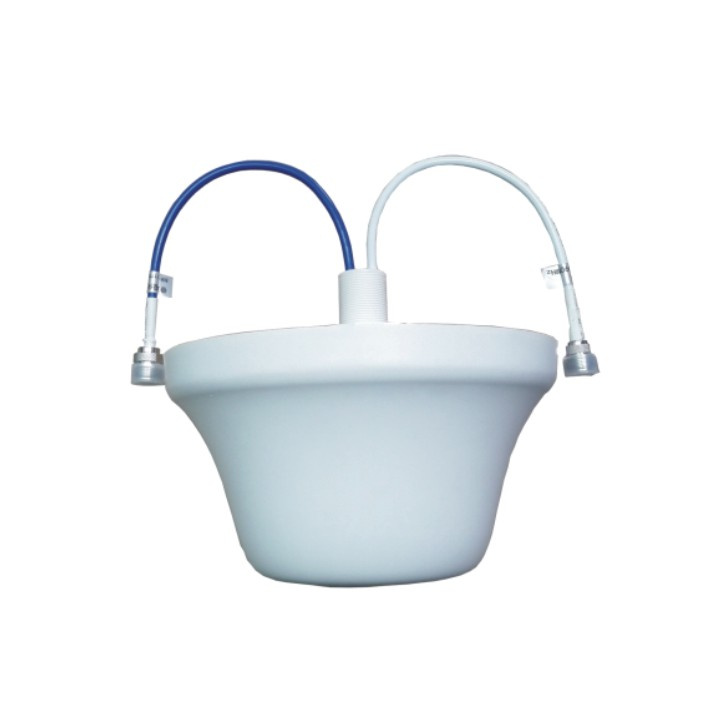

Specifications of MIMO Omni Directional Antenna
Model: BT-0106082605360NF

Frequency Range (MHz)	800~960	1710~1880	1880~2690
Gain (dBi)	2±0.5	3±0.5(H)/ 5±1(V)	4±0.5(H)/ 5±1(V)
Polarization	V	H/V	H/V
Beamwidth	90°±15°	55°±10°(V) 65°±10°(H)	50°±10°(V) 65°±10°(H)
Cross polarization Ratio(Db)	/	≥15	≥15
Isolation (dB)	/	1710~1880≥28 1880~2690≥30	≥30
Intermediation IM3	≤-107dbm(2×33dbm)
Nominal Impedance (Ω)	50
VSWR	≤ 1.5
Max. Power (W)	50
Connector	2*N-Type
Diameter (mm)	Φ198x110
Weight (Kg)	0.5
Operating temperance	-40°C ~60°C
Operating humidity	5~95%
Mounting Method	Fixed with nut

Shenzhen Boostel Technologies Co., Ltd. is a high-tech company integrating scientific R&D, manufacturing and marketing, with factory in Shenzhen China, and headquarters in Hongkong, mainly engages in scientific research, production, marketing, project and engineering service of the radio telecommunication system.

Since the inception, we have been a professional manufacturer and solution provider of RF network optimization system. Our products, including RF repeaters, IBS, BTS filters, combiners and amplifiers as well as NMS software system, have been deployed in more than 100 cities in China and 30 countries in Southeast Asia, Africa, European, South America and Middle East. We provide the infrastructure and total solutions to mobile operators and enterprises to enhance the cellular network.

Our products including High power Repeaters and Pico Repeaters which covering all the working frequency bands of TETRA Repeaters, iDEN Repeaters, LTE800MHz, GSM900MHz, DCS1800MHz, PCS1900MHz, WCDMA2100MHz and LTE2600MHz.

Since 1995, the first set of Fiber optic Repeater was manufactured in our factory, we have developed all kinds of Repeaters and sold it the opeartors all over the world.

We will provide the total solution of Repeaters with best quality and full technical supporting to you based on our more than 20 years experience of manufacturing Repeaters.
