Min Circuit Breaker

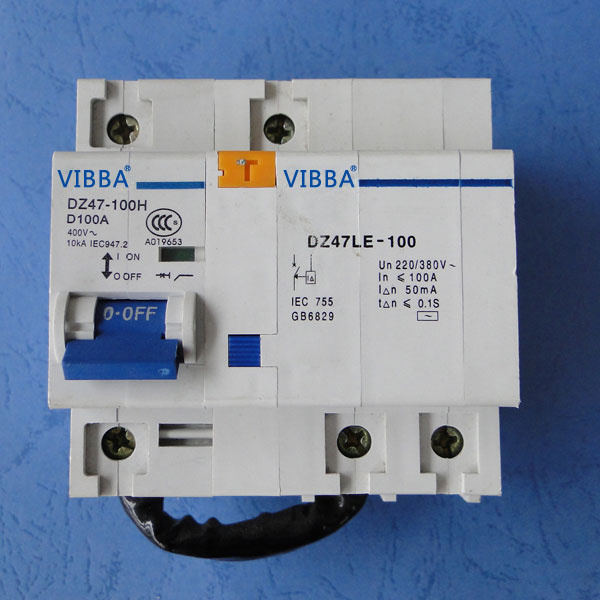

Name: Min Circuit Breaker
Brand: all-electronics-online.com
SKU: 719052835
Availability: InStock
Rating: 5 (20 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	DZ47LE-100

Product Description

Product Description
Mini Circuit Breaker(MCB) is applicable to circuit with rated voltage up 400V AC, rated frequency 50/60Hz and rated current up to 63A for protection and control of circuit against overload and short circuit in commercial, household and electric equipment installation. The product is suitable for non-frequently making and breaking operation.

Frame class	63A
Rated working voltage	240V/415V
Rated frequency	50/60Hz
Rated working current	1,3,6,10,16,20,25,32,40,50,63A
Making and breaking capacity	6000A(6~40A),4500A(50,63A)
Release type	B,C,D
Poles	1, 2,3,4P
Mechanical life	20000
Electric life	4000

Sequence NO .	Release	Test current I/In	Start state	Tripping time	Expected results
1	B,C,D	1.13In	Cold state	t≤1h	Not tripping
2	B,C,D	1.45In	Start right after the serial NO . 1 test	t<1h	Tripping
3	B,C,D	2.55In	Cold state	1s	Tripping
4	B C D	3In 5In 10In	Cold state	t≤0.1s	Not tripping
5	B C D	5In 10In 20In	Cold state	t<0.1s	Tripping

You are warmly welcome into Yueqing Vebo International Co., Ltd.

Your presence is honoured & your any comments/enquiries/suggestions would be appreciated. Established in 2011, We are one younger company with new management and thinking. We are not a big company and never exaggerate, but we have enough conditions to do your works as well as you hope.

1. )never change the raw material or main parts once we agreed,

2. )full order 100% tested exactly according to standard,

3. )finish your order within the lead time,

4. )no any mistake happened on printing, packing, boxes, labels and cartons,

5. )we have regular skilled workers and can finish large quantity order easily.

6. )English communications is available in twenty-four hours.

We heartily hope to establish good relations with you in the coming days!
