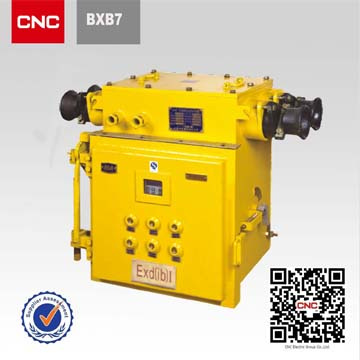

Mine Explosion-Proof Transformer (BXB7)

Name: Mine Explosion-Proof Transformer (BXB7)
Brand: all-electronics-online.com
SKU: 737028575
Availability: InStock
Rating: 4.4 (93 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BXB7
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage (V):	1140V, 660V
Rated Current (a):	1.2-15.9
Outline Dimension (Mm):	2300X595X800
Weight (Kg):	1400
Max Power (Kw):	590/340,450/270,290/170
Phase:	Single
Coil:	Amorphous Alloy Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Separated Winding Transformer
Application:	Audio

Product Description

About CNC

1. China Top 500 Enterprise.
2.26 years rich experience in manufacturing electrical products.
3. Sales in over 100 countries.
4. Pass ISO9001, ISO14001 CCC CE CB IEC ICO certificate and standar.

Product Description

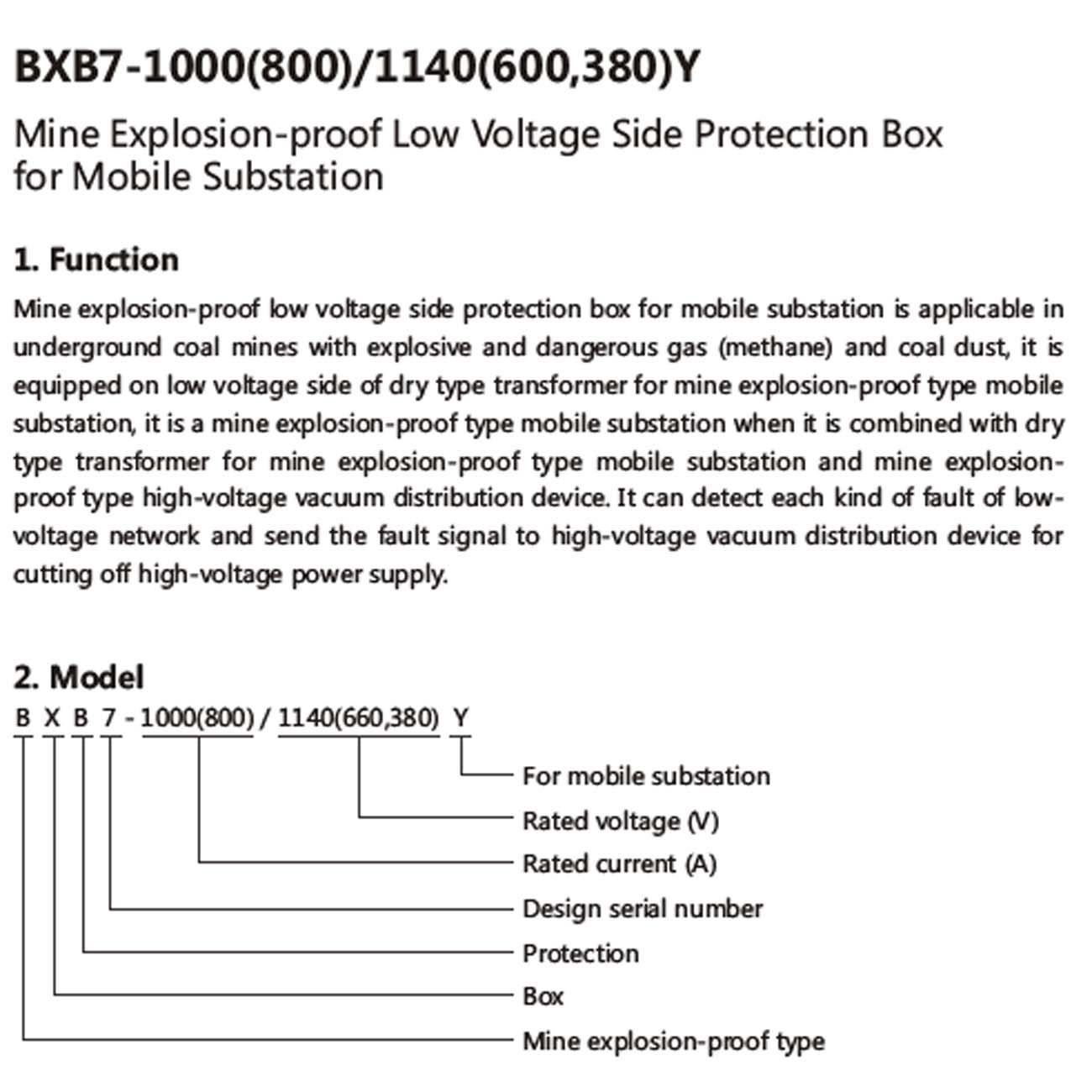

1. Function

Mine explosion-proof low voltage side protection box for mobile substation is applicable in

underground coal mines with explosive and dangerous gas (methane) and coal dust, it is

equipped on low voltage side of dry type transformer for mine explosion-proof type mobile

substation, it is a mine explosion-proof type mobile substation when it is combined with dry

type transformer for mine explosion-proof type mobile substation and mine explosionproof

type high-voltage vacuum distribution device. It can detect each kind of fault of lowvoltage

network and send the fault signal to high-voltage vacuum distribution device for

cutting off high-voltage power supply.

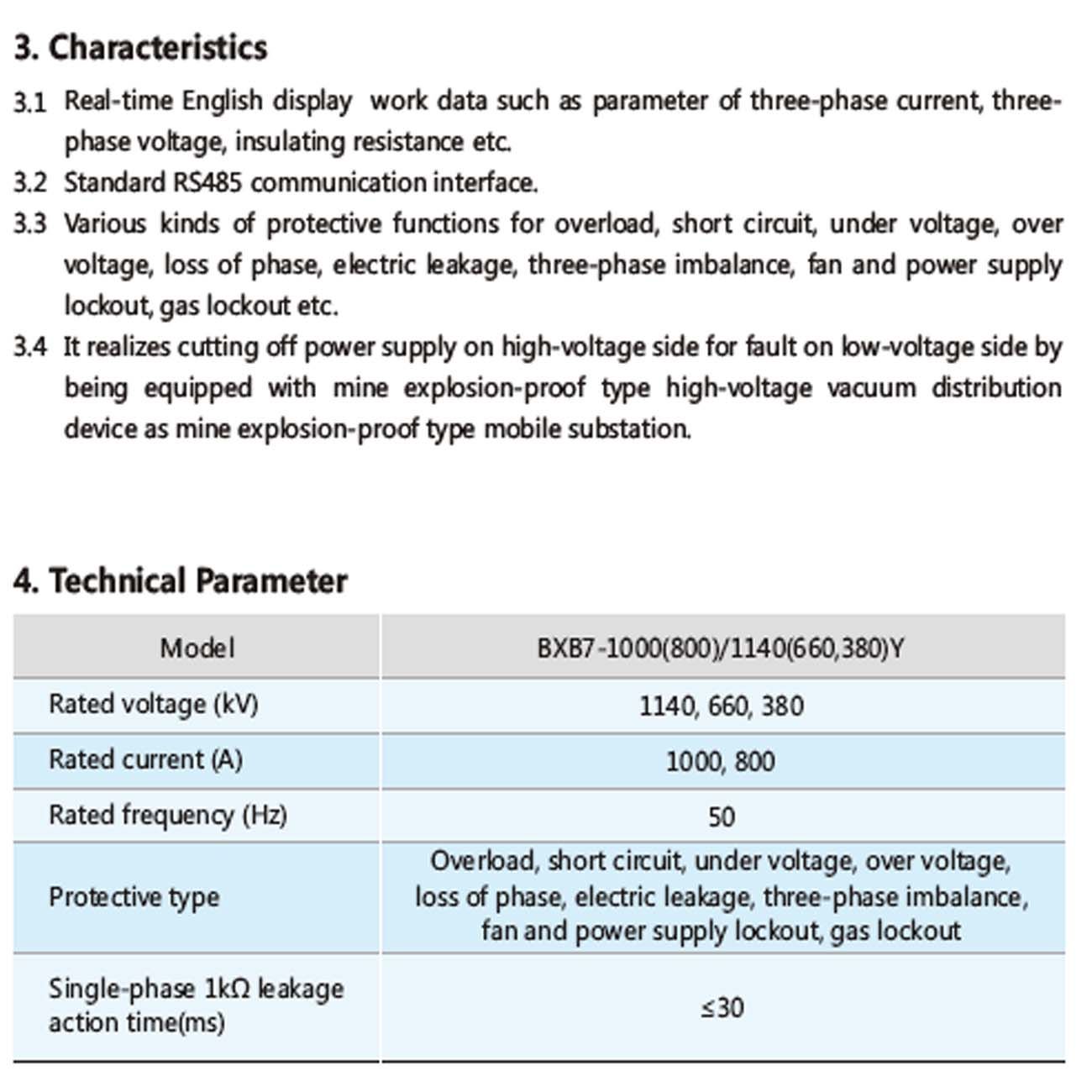

2. Characteristics

2.1 Real-time English display work data such as parameter of three-phase current, threephase

voltage, insulating resistance etc.

2.2 Standard RS485 communication interface.

2.3 Various kinds of protective functions for overload, short circuit, under voltage, over

voltage, loss of phase, electric leakage, three-phase imbalance, fan and power supply

lockout, gas lockout etc.

2.4 It realizes cutting off power supply on high-voltage side for fault on low-voltage side by

being equipped with mine explosion-proof type high-voltage vacuum distribution

2.5 device as mine explosion-proof type mobile substation.
