Mine Use Ex-Proof Vacuum Feed Electromagnetic Soft Starter

Mine Use Ex-Proof Vacuum Feed Electromagnetic Soft Starter
Price: US $ 500-2000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: QBZ2-200
Model: Qjz-120
Voltage: 380V/660V/1140V
Power: 47kw/82kw/142kw
Main Loop Cable Diameter: 12-51mm
Control Loop Cable Diameter: 8-19mm
Outsize: 550*420*650mm
Weight: 130kg
Ex-Proof: Yes
Mine Use: Yes
Water Proof: Yes

Product Description

Application of Mine Use Ex-Proof Vacuum Feed Electromagnetic Soft Starter

Mine Use Ex-Proof Vacuum Feed Electromagnetic Soft Starter for coal and under the surrounding medium containing methane, coal dust and other explosive mixtures of gas in the environment. Mainly used for direct start or stop AC 50Hz, rated voltage to 1140V, rated current to 200A mine explosion-proof three-phase asynchronous motor. Remote control, joint control, sequence control, irreversible starter can be reversed when the reversing; reversible starter can be charged on the motor for frequent positive and negative operation.

Main Feature of Mine Use Ex-Proof Vacuum Feed Electromagnetic Soft Starter
1. The main circuit using vacuum contactor, no arc, long life, high reliability;

2. Using JDB digital protector, with overload, short circuit, phase failure, the main circuit leakage protection and other protection functions.
3. Can be equipped with liquid level controller as a water level control dedicated switch.

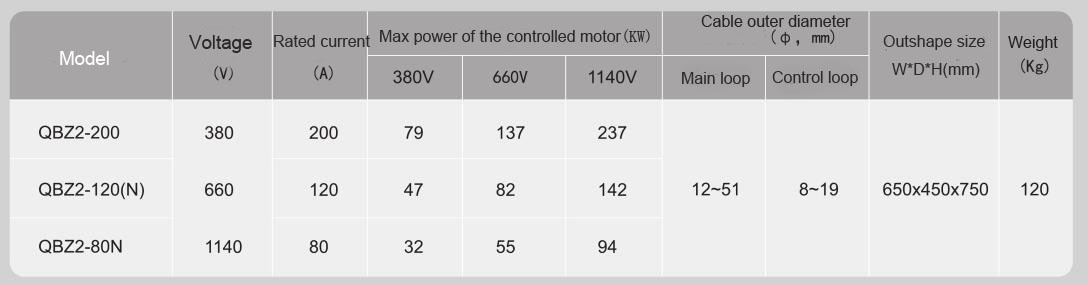

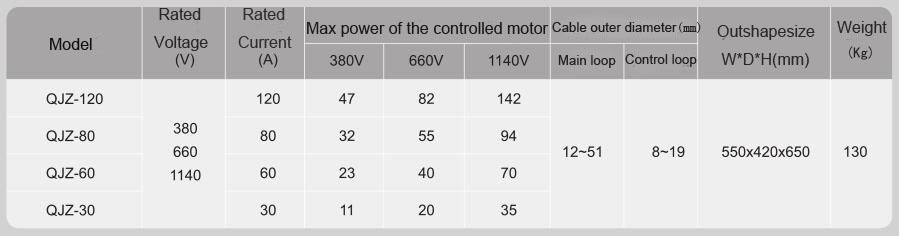

Main Parameter of Mine Use Ex-Proof Vacuum Feed Electromagnetic Soft Starter

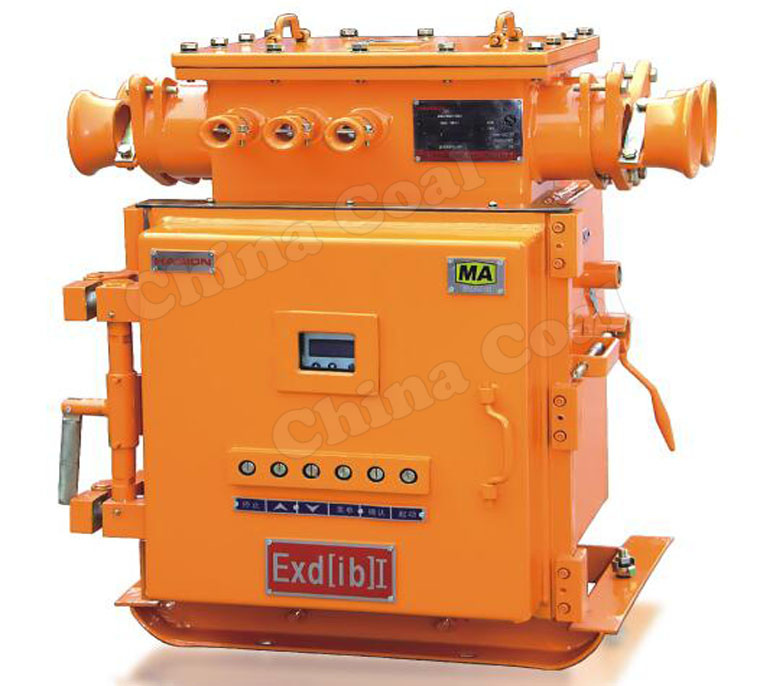

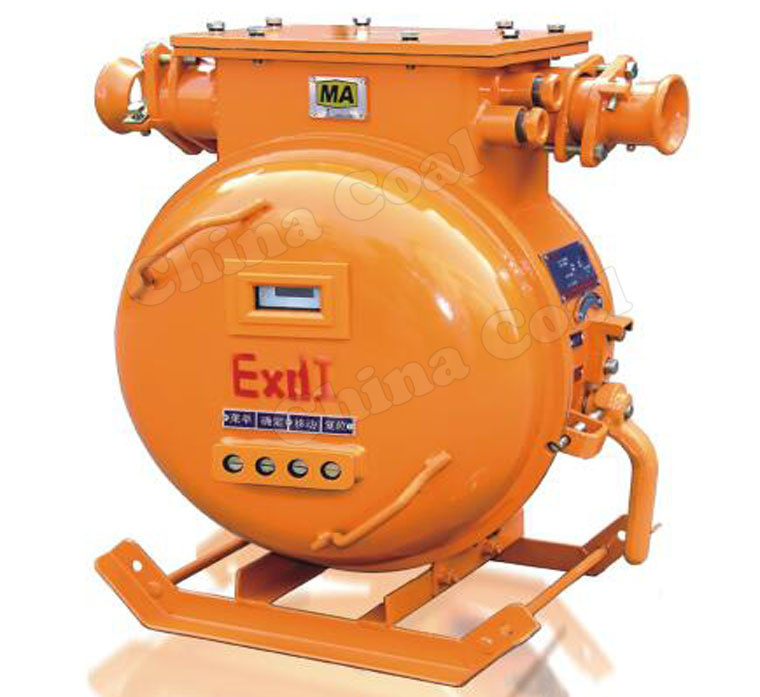

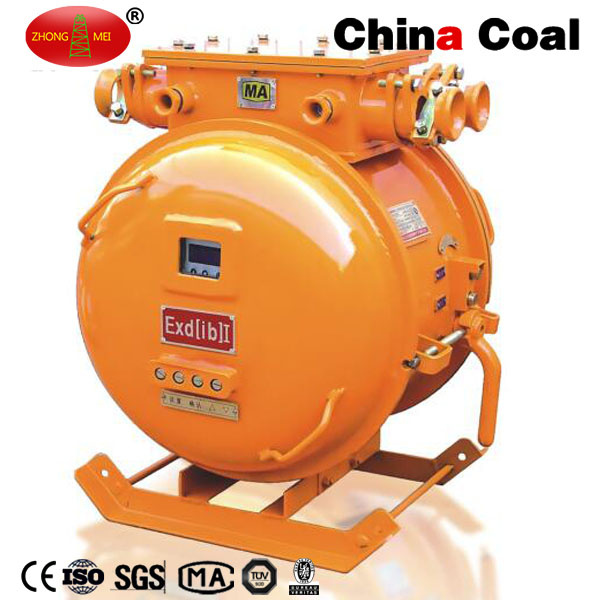

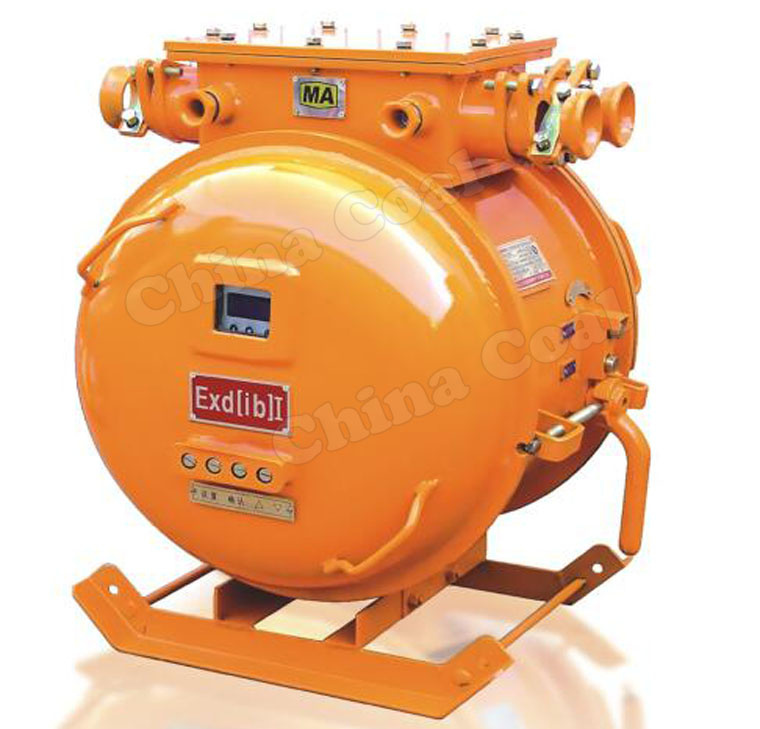

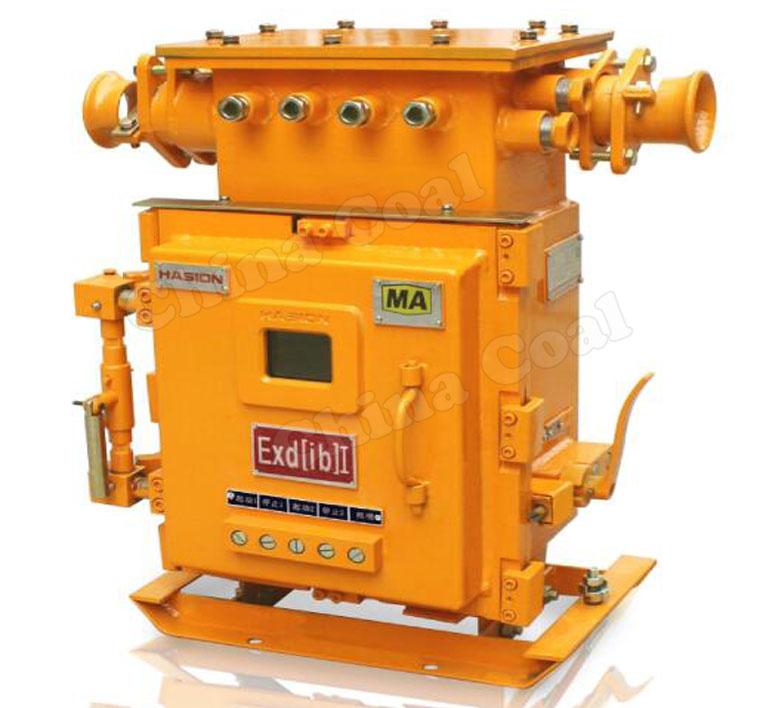

Figure Images of Mine Use Ex-Proof Vacuum Feed Electromagnetic Soft Starter
