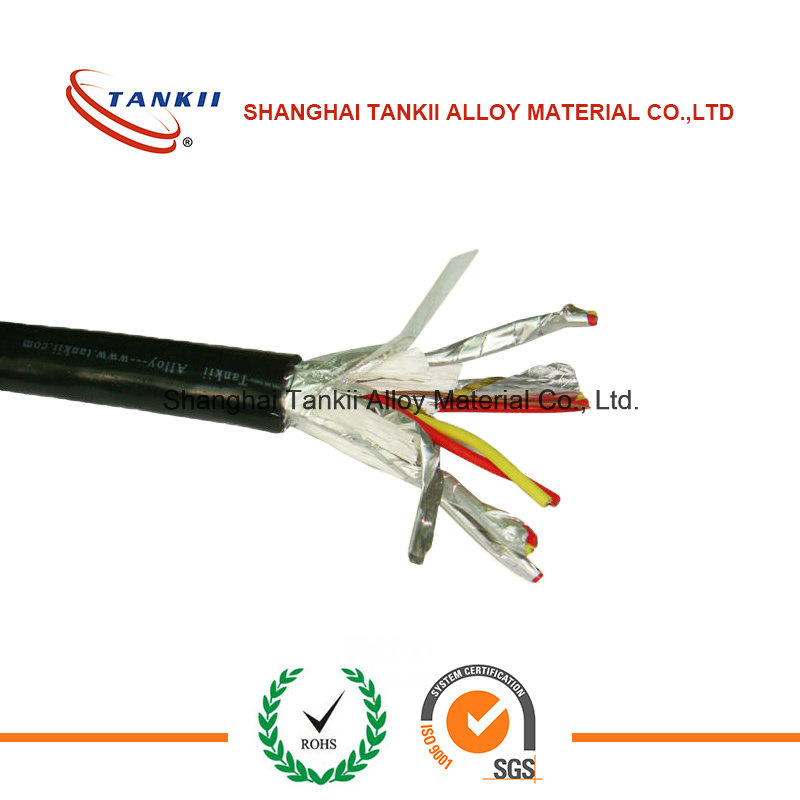

Name: Mineral Insulated Cable Compensation conductor k type thermocouple wire
Brand: all-electronics-online.com
SKU: 677467185
Availability: InStock
Rating: 4.4 (121 reviews)

Price:	US $ 15.7-26/Meter
Trade Terms:	FOB,EXW
Min Order:	500/Meter
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Type K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Round Wire:	Chromel Alumel
Type:	Insulated
Conductor Type:	Stranded
Application:	Heating
Certification:	CE
Range Of Application:	Temperature Measurement
Brand:	Tankii
Sheath Material:	Stainless Steel Gh3030
Insulation Material:	MGO
Conductor Material:	Chromel Alumel

Product Description

Mineral Insulated Cable Compensation conductor k type thermocouple wire

NiCr-NiSi (Type K) thermocouple finds the widest use in all basemetal thermocouple, at temperature above 500 °C.
Type K thermocouple has strong resistance to oxidation than other base metal thermocouples. It has high EMF
against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended
for oxidizing or inert atmospheres, but cannot be used directly in the following cases:

(1) Alternatively oxidizing and reducing atmosphere.
(2) Atmosphere with sulphur gases.
(3) Long time in vacuum.
(4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.

Detailed Parameter

Chemical Composition
Conductor Name	Polarity	Code	Nominal Chemical Composition /%
Conductor Name	Polarity	Code	Ni	Cr	Si
Ni-Cr	Positive	KP	90	10	--
Ni- Si	Negative	KN	97	--	3

Working Temperature
Diameter/mm	Long time Working temperature /ºC	Short period Working temperature /ºC
0.3	700	800
0.5	800	900
0.8,1.0	900	1000
1.2,1.6	1000	1100
2.0,2.5	1100	1200
3.2	1200	1300

Application:
Heating - Gas burners for ovens
Cooling - Freezers
Engine protection - Temperatures and surface temperatures
High temperature control - Iron casting

Packing & Delivery
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package.
As the order quantity and customer requirement.

Delivery Detail: By sea/ air. About 7 days, as the order quantity.
