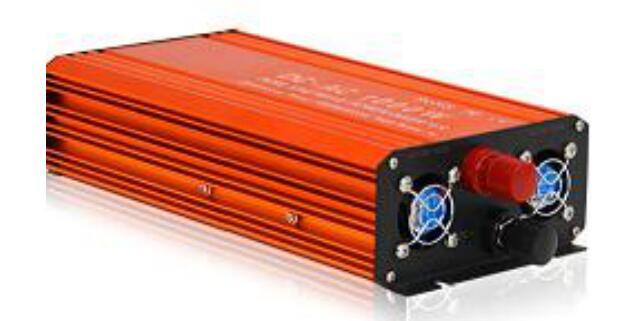

Mini 1000W Pure Sine Wave Inverter Support DC & AC Voltage&OEM with Patent and Smart Design

Mini 1000W Pure Sine Wave Inverter Support DC & AC Voltage&OEM with Patent and Smart Design
Price: Negotiable/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: Mini Ideal Star Series
Protection: Low / Over Voltage,Overload,Over Temperature
DC Voltage: 12V/24V/48V Auto
AC Voltage: 100VAC-240VAC Optional
Frequency: Frequency 50Hz±0.5Hz or 60Hz±0.5Hz
USB Outlet: 5V 500mA
Production Size: 285*145*69(mm)
Packing Size: 360*198*115 (mm)
N.W/G.W(Kg): 2.4/2.8(Kg)

Product Description

1000W Pure Sine Wave Inverter Support DC &AC Voltage & HZ OEM
UPSEN Inverter Support 5 Type Protection
1):Low / Over Voltage
2):POverload
3):Over Temperature
4):Short Circuit
5):Input Oppose


Product Features
1):GB Copper Wire,reducing the line losses
2):High quality silicone thermal pad,thermal faster,insulation better.
3):Oxidation treatment radiator,heat dissipation more better, more safe.
4):Stainless steel screws,insulation covering played shell and radiator insulation,more safe.
5):Insulating paper,make the heat sink and PCB circuit board insulation,

avoid leakage,safety protection
6):The former driver control panel,PWM signal, the perfect protection,

precision patch.Capacitive touch button
7):The after driver control panel,Four-layer board sided precision chip technology,

 improve the protection of  the sine wave signal modulation

Technical Specification
ModeIS1000
Continuous Power1000W
Surge Power2000W
DC VoltageDC12VDC24VDC48VDC12VDC24VDC48V
AC Voltage100VAC or 110VAC or 120VAC ±5%220VAC or 230VAC or 240VAC ±5%
No Load Current Draw0.8A0.4A0.2A0.8A0.4A0.2A
Frequency50HZ±0.5HZ or 60HZ±0.5HZ
Wave FormPure Sine Wave
UPB Outlet5V 500MA
AC RegulationTHD<3%(Linear load)
Output efficiencyHightest94%
DC Voltage Range10-15.5V20-31V40-61V10-15.5V20-31V40-61V
Low Voltage Alarm10.5±0.5V21±0.5V42±1V10.5±0.5V21±0.5V42±1V
Low Voltage Shut
Down
10±0.5V20±0.5V40±1V10±0.5V20±0.5V40±1V
Over Voltage Shut
Down
15.5±0.5V31±0.5V61±1V15.5±0.5V31±0.5V61±1V
Low Voltage Recovery13±0.5V24±0.5V48±1V13±0.5V24±0.5V48±0.5V
Over Voltage
Recovery
14.8V±0.5V29.5V±0.5V59V±1V14.8V±0.5V29.5V±0.5V59V±0.5V


Protection
Low Voltage/Over Voltage

LED Alarm and Automatic Recovery
Overload
Over Temperature
Short Circuit
Input Oppose
Working Temperature-10°C- +50°CQuantity/Carton10pcs
Storage Temperature-30°C- +70°CCarton Size620*430*405 (mm)
Production SizeProduction SizeCarton Weight28(kg)
Packing SizePacking SizeWarranty2 Years
N.W/G.W(KG)2.4/2.8(kg)StartBipolar soft-start
CertificationCE FCC ROHSCooling WayIntelligent Cooling Fan

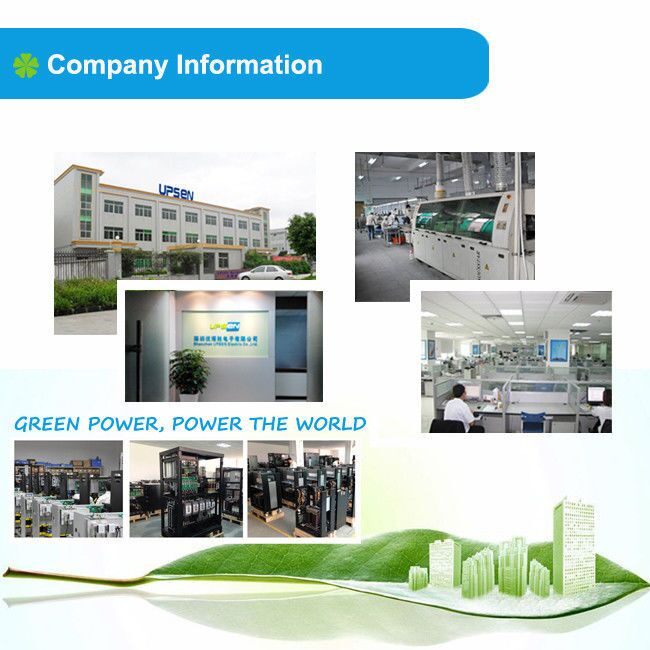

Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.

We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.

We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.

We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
