Yueqing Winston Electric Co., Ltd. >> Mini 12V AC DC 40A Power Relay (JQX-38F 2Z)

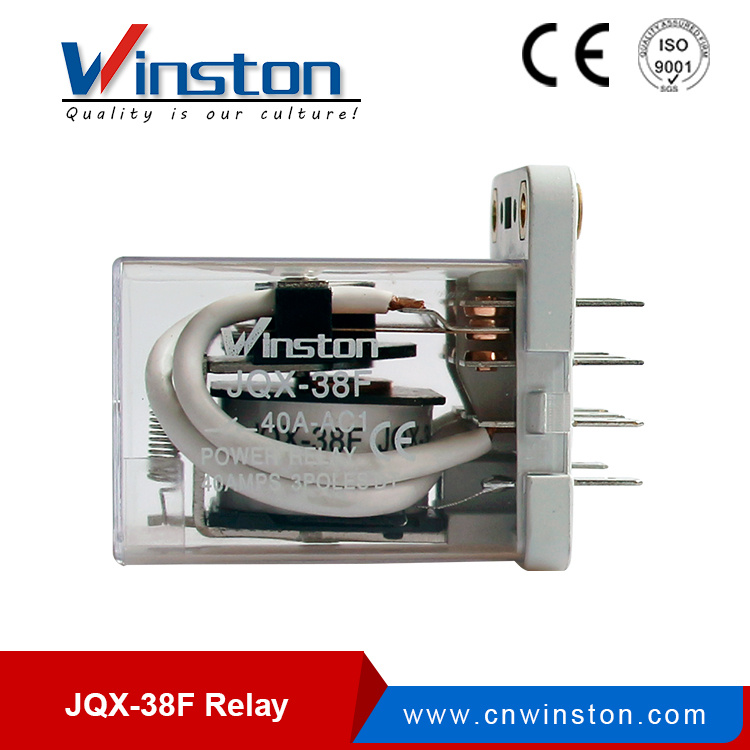

Mini 12V AC DC 40A Power Relay (JQX-38F 2Z)

Mini 12V AC DC 40A Power Relay (JQX-38F 2Z)
Price: US $ 3.19-4.2/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: JQX-38F 2Z
Current: 40A
Brand: Winston
Protect Feature: Sealed
Contact Load: High Power
Voltage: DC 12V

Product Description

Mini 12V AC DC 40A Power Relay (JQX-38F 2Z)

Feature
With open type,dust-proof cover type
With matched socket

Contact Ratings
Contact Ratings2Z, 2H, 2D3Z, 3H, 3D
Contact Resistance100mΩ(1A 6VDC)
Contact MaterialAgCdO
Contact Capacity40A 250VAC/30VDC40A 250VAC/30VDC

Specification
Insulation Resistance1000MΩ. 500VDC
Dielectric StrengthBCC 1200V 1min
BOC 2500V 1min
Operate Time25ms/15ms
Terminal TypePCB

Coil Ratings
Nominal Coil PowerDC2W~2.5W AC4.5W

Coil Versions
Nominal
voltage
VDC
Pull-in
voltage
VDC
Release
voltage
VDC
Coil Resistance
Ω:±10%
128.41.257
2416.82.4230
4833.64.82000
6042.06.02850f

Nominal
voltage
VAC
Pull-in
voltage
VAC
Release
voltage
VAC
Coil Resistance
Ω:±10%
129.63.610
2419.27.240.3
11088.636.0847
220/240176.072.03380

PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

Our Services

1. Prompt reply: Any inquiry or questions would be replied within 24 hours.
2.  Quality Product: Manufacture company, each of the products is tested and calibrated.
3.  Hospitality: Offer smiling service and your visiting is highly welcomed
4.  Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.

Trade Information

Trade TermsFOB ,CIF ,CFR,EXW,DDP
Payment termsT/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions30% deposit in advance,70% balance before shipping.
Delivery time3-7working days after deposit,2-4 working days for inventory
PackingNeutral carton,Wooden case for large size
ShippingBy sea,by air and by express delivery
Payment conditions30% deposit in advance,70% balance before shipping.
Delivery time3-7working days after deposit,2-4 working days for inventory
PackingNeutral carton,Wooden case for large size
ShippingBy sea,by air and by express delivery
Yueqing Winston Electric Co., Ltd, established in 2010, is a rapid growing enterprise who integrate the production and marketing of Industrial electrical appliance. After seven years' effort and development, now we have become one of the leading electrical manufacturers and suppliers in China. We are always keeping very kind relationship with many strong electrical factories and Insearch institutes in China. We have been enjoying high reputation in electrical market domestically and internationally.

Our factory focus on formulating most kinds of electrical in China. Which include proximity sensor, power supply, motor soft starter, frequency inverter, relay, thermostat, heater, transformer and so on. We are capable of supplying our products in various kinds of packaging according to customers' specific requirements. Now we are producing more than 100 kinds of electrical products which are exported to about 80 countries and regions all over the world. But Winston have never stop going forward, in order to control the cost, and supply competitive price for our customers, in 2012, together with our partners, we build another factory, which producing circuit breaker, distribution box, AC contactor, etc.

Winston have an special professional registration department, who in charge of the domestic registration and oversea registration. We can help our current or potential customers to do registration work. We have a good relation with domestic famous institute who can provide us with authoritative impurity analysis and toxicological report. Quality and Service are always the top concern in Winston. We provide full set of service, including data and samples, which are available on request.

Winston's Mission is: "Focus on the industrial Electrical protection, serve the worldwide Electrical. And our tenet is: "Hold integrity, Forge Ahead, Serve the world". We are always trying our best to offer the best services and the most competitive prices with high quality goods for our customer, It's the way we win our customers and the market.

Given Chance and full space, we would show you all of our advantages and let's grow up together. I am sure we can establish long term and friendly business relationship with your esteemed company because of your trust and our excellent service.

Our advantage:

1. Quality is our culture.

2. We have our own developing and designing team, which ensure our own technological and innoative products for customers.

3. For any customers who have new idea about some products, just let us know, we can according to your idea provide a unique design of the products.

4. For any customers who send us the samples of some products, we will design and develop better ones based on the samples!

5. For every customer, we will choose the best fit material, and also innovative material for their products!

6. We can according to any customers' design to do sample of them!

7. We are manufacturer, factory, so we have the ability of mass production!

8.24*7 service, professional sales group.

Technical Support:

Most of our Winston products adopt Germany advanced technology, and the producing machine are all equipped with advance system, all our workers are experienced and skilled!

Besides, for some products material are all use imported parts.

So the quality and safety are guaranteed!

After sale service:

Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our product sold to everywhere of the global.

Winston has a complete supply system for the parts, which can guarantee the company's demand of product accessories. We have stocked the common parts in the major cooperation point world widely, which can shorten the supply time largely. So if have any question, just contact us any time at your convenience!

Transportation service:

We can guarantee the fast and safe delivery to the customers' hand.
