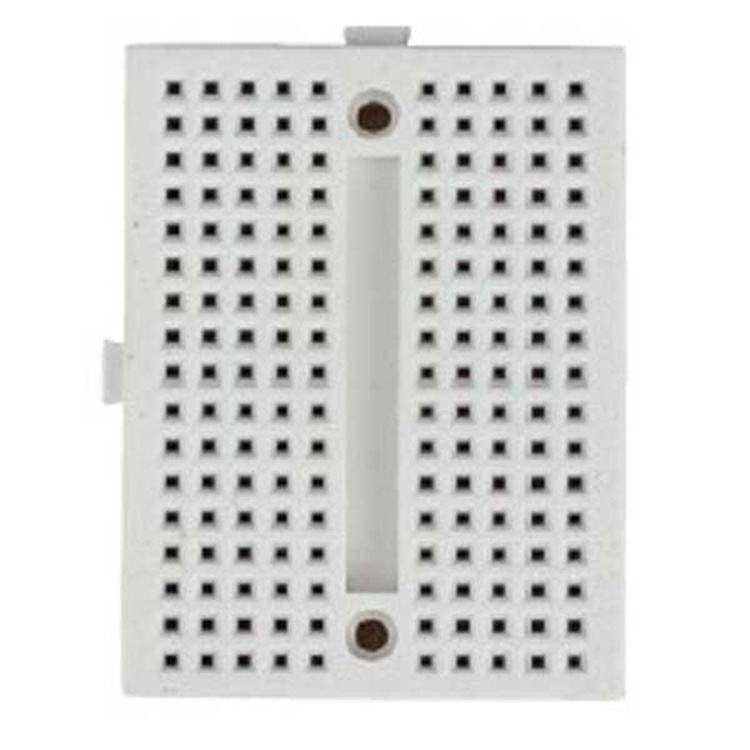

Mini 170 Point Solderless Breadboard

Prod Model:	ZY-170
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
1 Terminal Strip:	Tie-Point 170
Color:	White
Housing Material:	ABS
Product Size:	4.7*3.5*0.85cm
Dielectric:	FR-1

Product Description

Mini 170 point solderless breadboard

Product Details:
1)Twin adhesive back, could be fix and remove to any position easily
2)Protection: Short circuit / Overload / Over voltage
3)Cooling by free air convection
4)All material Rohs compliance
5)Low cost, high reliability & fast delivery

Features:
1. Contact resistance: 100mΩ Max
2. Insulator resistance: 1000MΩ Min. @DC 500V
3. Dielectric withstanding voltage: AC 500V for 1 minute
4. Operating temperature: -20oC~+80oC
5. Housing material: ABS
6. Contact maerial: Copper alloy nickel palted
7. Contact way: Spring clip
8. Connector type: Socket
9. Plug times: ≥ 10000 times
10. Housing size( L*W*H): 47mm*35mm*8.35mm
11. Pitch=2.54mm / 0.1''

More Information:
Accepts transistors, diodes, LEDS, resistors, capacitors and virtually all types of components
An invaluable tool for the most demanding prototyping and design applications in the R&D or university lab.
Item NumberTP-031
1 Terminal Strip230 PTS
2 Distribution Strip40 PTS
Product Size4.5x8.4x0.85cm
ColorWhite
PackageBlister card
All material Rohs compliance
The follow picture is details:
