Mini 5V 12 Volt DC Motor for Electric Threading Knife

Name: Mini 5V 12 Volt DC Motor for Electric Threading Knife
Brand: all-electronics-online.com
SKU: 822132635
Availability: InStock
Rating: 4.7 (144 reviews)

Price:	US $ 3.104-4.019/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MR-13SS030
Usage:	Surveillance Cameras
Application:	Lock
Operating Speed:	Low Speed
Structure And Working Principle:	Brush
Certification:	Ce,RoHS
Brand:	Mipre

Product Description

Specification

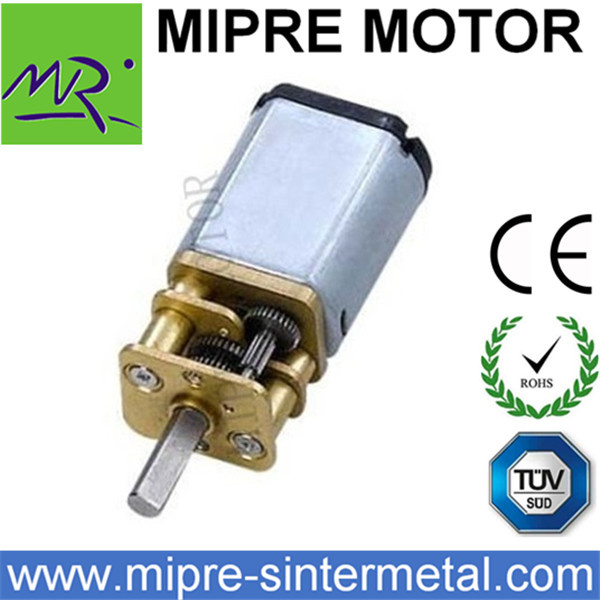

Dia 13mm DC Geared Motor

Model No.: MR-13SS030

1. Typical Applications:

Coffee Machine Cordless Drill

Robot Electric Lock

Video/Camera

Weight: 15g(approx.)

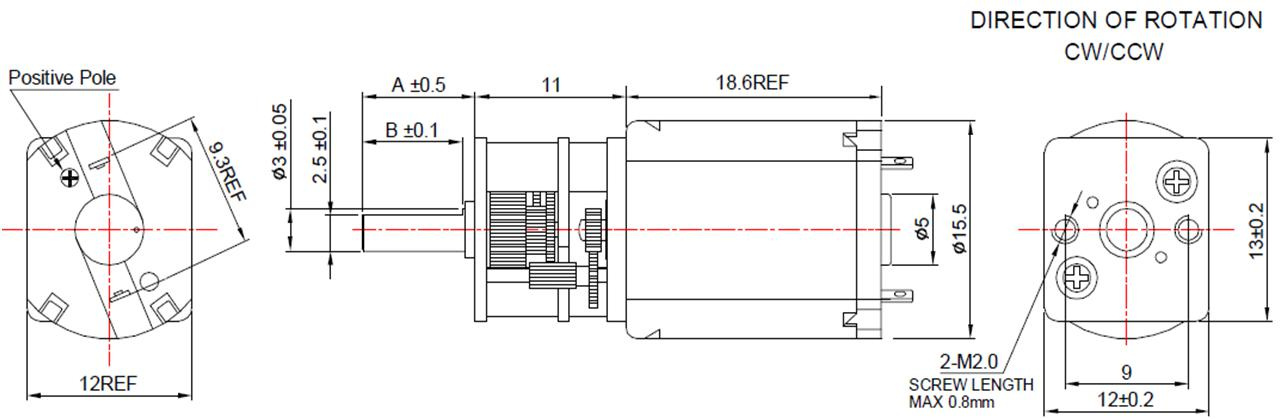

2. Dimensions(mm)

Customization:

-Length A, B

-Technical Data

-Shaft Shape

3.Gearbox data.

Number of stages

Reduction ratio

3,7,10

16.17,20,30,35,50,63,70,86

115,150,210,250,360

Gearbox length 'L' mm

Breaking torque(kgf.cm)

0.6

0.9

Gearbox efficiency

81%

65%

59%

4.Driving motor data.

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
MR-030-038000	3	≤55	8000	≤250	6000	4	0.2	≥16	≥500
MR-030-0310500	3	≤80	10500	≤300	7200	5	0.4	≥20	≥750
MR-030-068000	6	≤30	8000	≤120	5000	4	0.2	≥16	≥150
MR-030-0610500	6	≤40	10500	≤160	7000	5	0.4	≥20	≥400

5. Gear motor data.

Model No.

Voltage

No load

On load

Operating range(V)

Nominal

Current

Speed

Current

Torque

Speed

r/min

kgf.cm

r/min

MR-13SS030-0667

3.0-7.2

0.05

0.19

0.40

MR-13SS030-0627

3.0-7.2

0.05

0.19

1.20

MR-13SS030-05242

3.0-7.2

0.05

242

0.19

0.12

176

MR-13SS030-05134

3.0-7.2

0.05

134

0.19

0.23

MR-13SS030-0599

3.0-7.2

0.05

0.19

0.31

MR-13SS030-0574

3.0-7.2

0.05

0.19

0.40

MR-13SS030-0556

3.0-7.2

0.05

0.19

0.52

MR-13SS030-0523

3.0-7.2

0.05

0.19

1.20

MR-13SS030-03143

1.5-4.5

0.10

143

0.50

0.06

104

MR-13SS030-0379

1.5-4.5

0.10

0.50

0.12

MR-13SS030-0358

1.4-4.5

0.10

0.50

0.16

MR-13SS030-0333

1.5-4.5

0.10

0.50

0.27

MR-13SS030-0314

1.5-4.5

0.10

0.50

0.65

Remarks

Customized electric performance on request by using suitable dc motor windings and ratio.
Available with required shaft length, D-shape size and length, grease type etc.

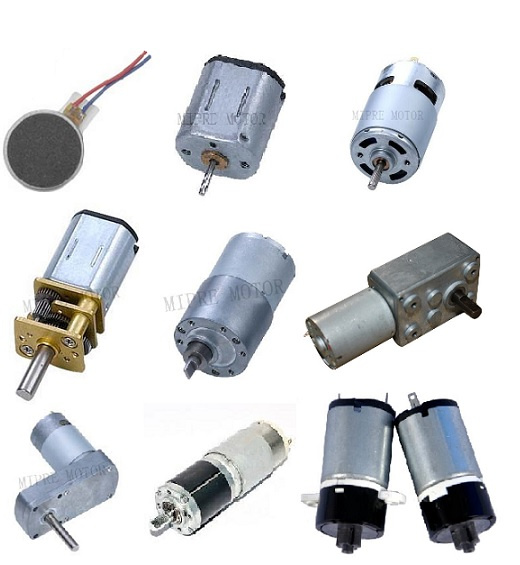

Related motors

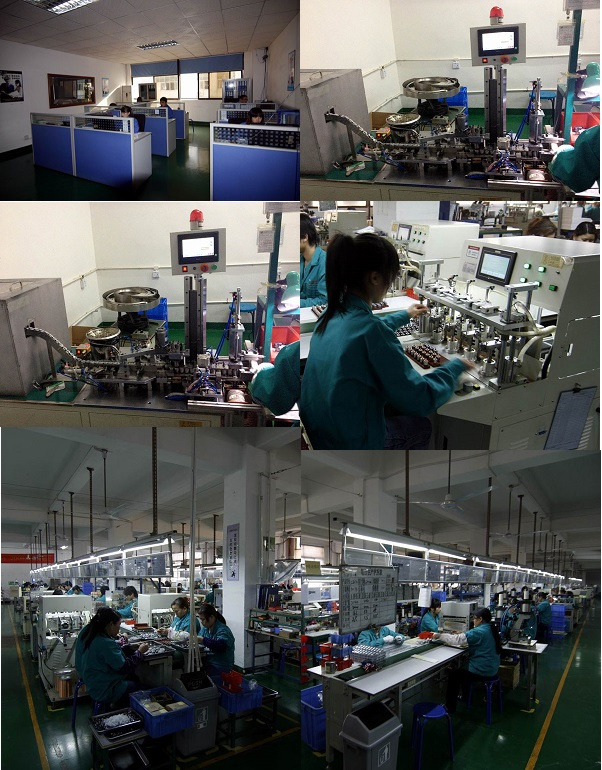

Our company:

FAQ

Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.
Q: How about Sample order?
A: Sample is available for you. please contact us for details.
Q: Which shipping way is avaliable?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.
Q: How long is the deliver?
A: Devliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
