Mini Car/Motorcycle Vehicle GPS with Real Time Positioning (A10)
| Price: |
US $ 25-26/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
A10 |
| GSM Antenna: |
Copper-Nickel Alloy |
| Battery: |
2500mAh |
| Acquisition Sensitivity: |
Black |
| GPS Chip: |
-143dBm |
| Storage Temp: |
Mtk3337 |
| GPS Anttnna: |
High Sensitive Ceramic Antenna |
| SIM Card Slot: |
One Slot |
| Chipset: |
Mtk Mt6261 |
| Tracking Sensitivity: |
-159dBm |
| GPS Signal: |
L1, 1575.42MHz C/a Code |
Product Description
Specification: | | Product positioning | Intelligent positioner |
| Main features | GPS+LBS Dual mode localization, voice intercom. Intelligent province electricity, real-time positioning, intelligent surveillance |
| 1. structure division |
| structure parts | category | specification |
| ID design | high-end,business,the atmosphere. |

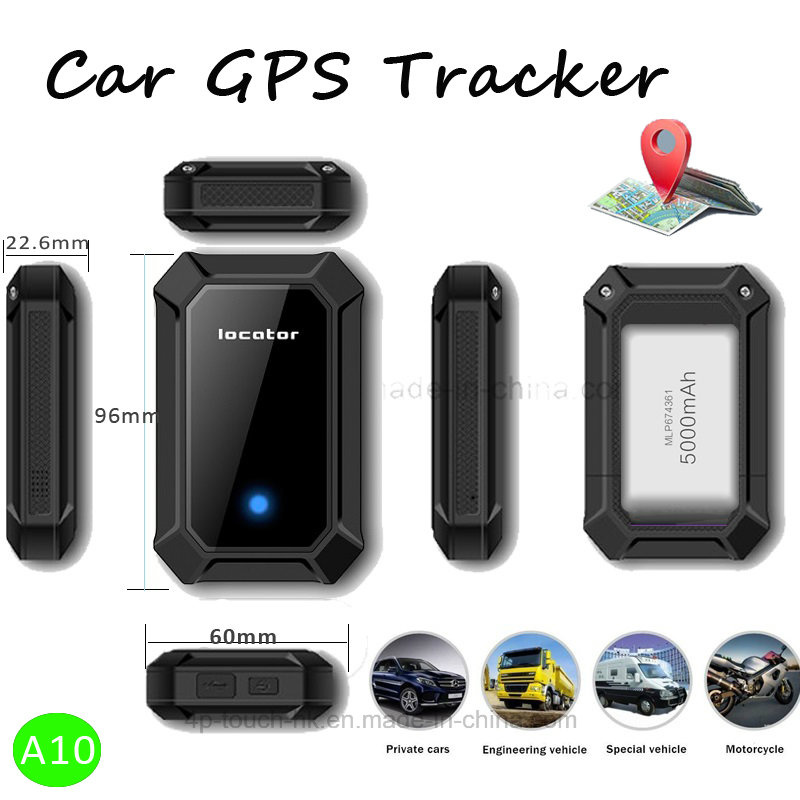

| Whole machine size | 96X60X22.6mm |
| colour | Carbon Black |
| button | one button for switch power |
| screen | no |
| gps antenna | High sensitive ceramics active antenna |
| GSM antenna | FPC antenna |
| battery | 5000mAh |
| SIM card slot | 1 pc |
| G-sensor | support |
| I/O port | USB charge |
| 2. Hardware parts |
| Hardware parts | CPU | MTK MT6261 |
| GPS chip | MTK3337 |
| GPRS | Class12 |
| GPS signal | L1,1575.42MHz C/A |
| GPS channel number | 20 channels |
| GPS chip receive sensitivity | Tracking sensitivity: - 159 DBM, capture sensitivity: - 143 DBM |
| GPS location accuracy | 5~15M |
| LBS location accuracy | 100-1000M |
| Minimum standby current | less than 0.5 mA |
| Average stndby current | less than 2.5 mA |
| Average working current | less than 55mA |
| Working temperature | -20~70ºC |
| Working humidity | 5% to 95% non-congealable |
| Test and certification | can approval by 3C,CE&ROSH |
| GPS antenna | Built-in high sensitivity FPC antenna |
| GSM antenna | Built-in four frequency method of antenna |
| bluetooth | bluetooth 3.0(Normal closed) |
| G-sensor | Support |
| MIC | Support |
| 3. software parts |
| software parts | supported operating systems | Support android 2.3 and above system, IOS5.0 and above. |
| call function | The remote monitoring |
| Language support | Simplified Chinese and English |
| GSM+GPRS+GPS | GPS+LBS Multi-modal positioning |
| support AGPS | Cold start 26 seconds positioning |
| call function | Free of interference pattern,the family number forced through,listening environment |
| power management | Ultra-low power consumption of power management,intelligent dormancy |
| One key emergency | no |
| Smart Geo-fence | Outside the range setting can be automatic alarm |
| historical route | Can check history of three months |
| wireless upgrading | Software upgrade, remote debugging maintenance, remote setting parameters |
Our Service
1.All of our products can be offered at OEM, such as custom logo, packaging, etc.
2.All our product will be strictly tested before we delivered to you.
3. we will try our best to provide the lowest shipping cost for you.
Warranty
1.Our product warranty is one year since the date of purchase.
2.We have the after-sale service. If any comments or questions after received our item, please e-mail us immediately, we will answer you as soon as possible.
FAQ
*What's the MOQ and lead time?
For our existing mold items, normally we don't have strict MOQ, samples or trial order is available.
Our sample lead time 2-3days, our production lead time is 10-15days, which also based on the order quantity.
*How can I get a sample to check quality?
Please just forward me the sample order summary (include the exact item number, preferred colors, sample quantity), then I will make the sample PI for your approval, after received your payment through Paypal, I will send out the sample to you
*When can I get the prices?
Within 12 hours after we received your inquiries.If any question,just feel free to contact me!
Peter Wu:
Mobile: +86 15220194018
Thank you!
Hongkong Yushengchang Technology Co., Ltd is the department of Shenzhen city for adminstration for industry and Commerce approved established of a limited liability company. Founded in March, 2013, company registeres capital of 5 million Yuan in RMB, is located in Jinhai Building, Songgang Town, Shenzhen. Yushengchang is specilize in Smart Watch, Smart Watch Phone, Smart Bracelet, Mini GPS Tracker for Person, Kids/Adults/Elderly GPS Tracker Watch, Personal GPS security monitoring solution...etc.
Please kindly note we are Made-in-China Annual Audit in Shenzhen, and we participate in HKTDC Fair twice a year.
Yushengchang has excellent corporate culture, pay attention to employee growth, to realize their full potential, encourage loyalty, responsibility, innovation, enhance the talents in the rapid development of enterprises, while their personal values and accumulated after years of business, Yusheng Chang has a highquality personnel, technical advice, business contact, new product development and aftersales services with efficient processing and competence, to the praise of the client side. We always uphold the "continuous improvement, the pursuit of excellence, the basics, self-perfection" spirit of enterprise, the quality of survival, technology and development, and to be honest as a fundamental business principles reputation for the soul, and constantly improve themselves.
