Mini Circuit Breaker with Low Volatage and High Breaking Capacity

Name: Mini Circuit Breaker with Low Volatage and High Breaking Capacity
Brand: all-electronics-online.com
SKU: 813806145
Availability: InStock
Rating: 4.5 (141 reviews)

Price:	US $ 0.58/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	5SX
Items:	5sx Simenens Type Mini Circuit Breaker
Service:	OEM and ODM
Warranty Time:	2 Years
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Installation:	Open Frame
Structure:	MCB
Poles Number:	4
Certification:	CCC
Arc-extinguishing Medium:	Mini Circuit Breaker

Product Description

Introduction

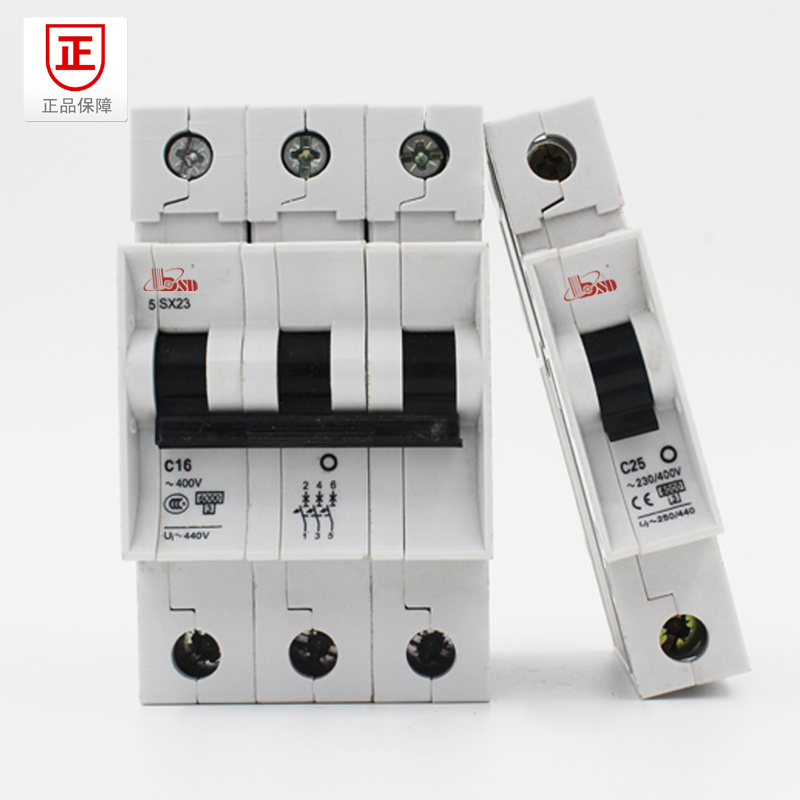

5SX series mini circuit breaker is mainly suitable for overload and short circuit protection. It is especially used for illumination and distribution industry and commerce. It is of pleasing out-look, light weight, reliable performance, high breaking capacity, etc. its frame and parts adopt plastics of high inflammable resistance and shock resistance for long service for long service life. It is mainly used for overload and short circuit protection within the circuit of AC 50/60HZ, rated voltage of single pole up to 240V, two, three or four poles up to 415V. It can also be used for an unfrequented switchover of the circuit and illumination under normal conditions.

SPECIFICATION
Frequency    50/60Hz Rated
voltage 240/415V AC
Rated breaking capacity   3000A,6000A
Rated frame current   63A
Rated trip current (A)   2,4,6,10,16,20,25,32,40,50,63
No. of pole ,  1,2,3 ,4
Standard: Iec60898

Frame class	80A
Rated working voltage	240/415V
Rated frequency	50/60Hz
Rated working current	16, 25, 40, 63,80A
Rated residual operating current	30, 100, 300, 500mA
Rated residual un-operating current	15, 50 , 150 , 250mA
Sensibility	A& AC
Maximum operating time	IΔn t ≤ 0.1s, 5I Δn t ≤ 0.04s
Rated making and breaking capacity	ln≤50A 500A, ln≤63A 630A
Limiting value of un-operating current	6ln
Rated limiting short-circuit current	6000A
Pole No.	2P, 4P
Mechanical life	10000

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
