Mini Circuit Breaker (YCB3)

Name: Mini Circuit Breaker (YCB3)
Brand: all-electronics-online.com
SKU: 611006315
Availability: InStock
Rating: 5 (63 reviews)

Price:	US $ 1-1.2/Piece
Trade Terms:	FOB,EXW
Min Order:	50/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YCB3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	50/60Hz
Poles:	1p+N
Rated Voltage:	220V
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Certification:	CB
Structure:	Moulded Case Circuit Breaker
Type:	Circuit Breaker
Function:	Overcurrent Protection

Product Description

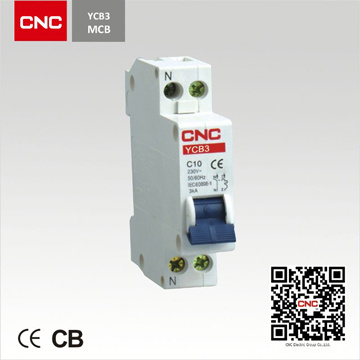

YCB3 Mininature circuit breaker (DPN)

General
1,application
    for protecting equipment against overload and short circuit

2,General rules for choosing MCB
    a, technical data of the network at the point considered
         the earthing systems, short-circuit current at the circuit breaker in stallation point. which must always be less than the breaking capacity of this device , network normal voltage.
     b,there is 1 curve characteristics for YCB3 magnetic operation
         C curve protection and control of the circuits against overloads and short circuit; protection for resistive and inductive loads with low inrush current.

1. IEC60898.
2Used in AC 50/60Hz
3)Output: 15000PCS/day
4)CE. CB. ISO9001, 14001, IEC
5)OEM
6)Min. Order: 5, 000PCS
7)Normal home use

Specification:

Model	YCB3
Frequency	50 / 60 Hz
Poles	1P+N
Insulation Voltage	300V
Rated Current (A)	1, 2, 3, 4, 6, 10, 16, 20, 25, 32A
Rated Voltage	220 V
Breaking Capacity	3 KA
Electrical Life	4000 times
Mechanical Life	10, 000 times

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
