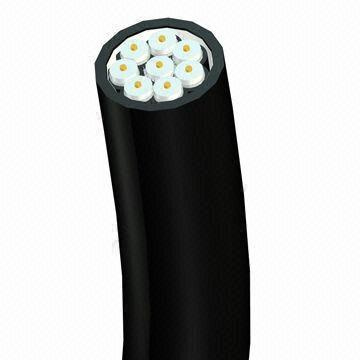

Mini Coaxial Cable, 8 Bundled PVC, RoHS Directive-Compliant

Mini Coaxial Cable, 8 Bundled PVC, RoHS Directive-Compliant
Price: Negotiablekm
Trade Terms: FOB
Min Order: 200km
Pay Type: L/C,T/T
Prod Model: Coaxial Cable
Center Conductor: Bare Copper
Application: Coaxial Cable
Conductor Material: BC/CCS/CCA/TC/CU/CCAG
Cover Material: PVC
Certification: RoHS
Model: RG6
Brand: Wanma

Product Description

Product Description:
Mini 8 Bundled, SC, Bonded Laminated Aluminum Tape, 95% Braid, Flame Retardant PVC Jacket CMR, Paper Tape, Rip Cord, Flame Retardant PVC Jacket CMR
Center Conductor:
23AWG Bare Copper
Diameter: 0.577mm+/-0.01mm (0.0277")
Dielectric:
Gas Injected Foam Polyethylene
Diameter over Dielectric: 2.59mm+/-0.05mm (0.102")
Shield:
1st shield: Aluminum Laminated Tape Bonded to the Dielectric 2nd shield: Tinned Copper Wire, 6*16*0.127mm, 95% Coverage
Jacket:
Material: Flame Retardant PVC CMR
Diameter Over Jacket: 4.04mm+/-0.10mm (0.159") Color: 12 Colors Available
Cabling:
8 Cables with PP Filler, Paper Tape Binder, Rip Cord.
Jacket:
Material: Flame Retardant PVC CMR
Diameter Over Jacket: 16.5mm+/-0.50mm (0.65") Color: 12 Colors Available

Electrical Properties:
Impedance: 75Ohm+/-3Ohm
Nominal Velocity of Propagation: 83%
Nominal Structure Return Loss: 5MHz~3000MHz≥20dB


                                                      Nominal Attenuation @ 68F(20C)
FrequencydB/100feet (Max)dB/100meters(Max)
5MHz1.003.28
55MHz2.829.25
211MHz5.3017.38
300MHz6.2620.53
350MHz6.7522.14
400MHz7.2523.78
450MHz7.7025.49
500MHz8.1126.60
550MHz8.5428.01
600MHz8.9229.26
750MHz10.0132.83
870MHz10.7935.39
1000MHz11.6238.11
1500MHz15.2349.95
2000MHz18.3860.29
2250MHz19.5364.06
3000MHz22.7974.75
Wanma is a professional cable manufacture located in Lin'an, Zhejiang Province, an ancient Chinese city.Since its establishment in 1989, Wanma has devoted over 20 years in constantly research, investigation, and improvement in not only our products, but also management philosophies and technical abilities.Thus allowing us to achieve rapid progress in the field of cable manufacturing industry, and also becoming a trusted OEM and ODM supplier to a number of well-known Fortunes 500 enterprises and many famous CATV, satellite system operators across the world.

Our major products include RG series cable, HDMI, USB2.0&3.0, A/V and Fiber Optic cables.Our annual output includes 700, 000 km of coaxial cables and 20 million pieces of related cable assemblies.Along with the development of cable products, we've also paid great attention to vertical integration of the supply chain;We set up our own individual plant for PVC and Aluminum foil.

Utmost quality is our constantly seeking and demand, we have accurate testing device for high frequency electrical performance, and a full set of testing equipments complying with UL's strict requirements.We passed through ISO 9002 quality system acceptance in 1999, acceptance to UL's safety specification as well as CSA nominated products in 2002.We became HDMI adopter and passed HDMI Compliance Test in 2010.In addition, we have passed GE and Thomson's quality management audit.

We are determined to assume the responsibility for the protection of our environment and society.We passed the SGS ethics acceptance in 2005, ISO 14000 acceptance in 2006, Wal-Mart EHS audit in 2012.Our products completely conform to the requirements of RoHS guidance.

We are always ready for your professional inquiry.
