Mini CT Clamp Sensor Split Core Current Transformer

Name: Mini CT Clamp Sensor Split Core Current Transformer
Brand: all-electronics-online.com
SKU: 782669825
Availability: InStock
Rating: 5 (38 reviews)

Price:	US $ 2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CT SCT023
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Saturation Magnetic Induction:	Low Core Loss
Application:	Lighting
Type:	Current Transformer
Phase:	Single and Three

Product Description

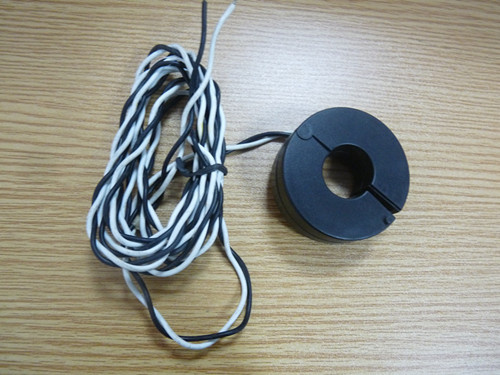

mini CT clamp / CT sensor split core CT SCT023R R core

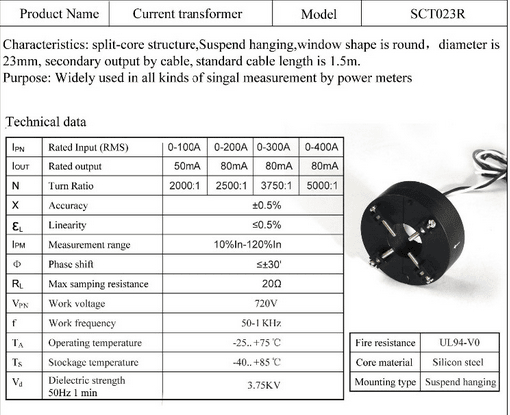

1 Model : SCT023R

2 opening size: 23mm

3 primary current : 400A AC

4 secondary: 80mA

5 turn ratio : 1:5000

6 shape : round type, split core , suspend hanging

7 fire resistance : UL94-V0

8 accuracy : ±0.5%

9 work voltage : 720V

10 dielectric strength : 3.75KV / 1 min 50Hz

11 operating temperature : -25 ~+75°c

12 AC current clamp

13 Round core current transformer

14 split core current transformer

C.Technical parameters of commonly used product specifications

Commodity	Specifications	Primary current	Secondary current	Overload multiple	Linearity		(Ω) Load
Commodity	Specifications	Primary current	Secondary current	Overload multiple	(±%) Ratio difference	(±%) Phase displancement	(Ω) Load
CTs	10(40)A/10mA	10	10	4	<0.1	≤5	<20
	10(60)A/10mA	10	10	6	<0.1	≤5	<20
	10(60)A/4mA	10	4	6	<0.1	≤5	<20
	10(60)A/4mA	10	4	6	<0.1	≤5	<20
	5(60)A/2.5mA	5	2.5	12	<0.1	≤5	<20
	5(60)A/2mA	5	2	12	<0.1	≤5	<20
	5(80)A/5mA	5	5	16	<0.1	≤5	<20
	20(100)A/20mA	20	20	5	<0.1	≤5	<20
	5(40)A/5mA	5	5	8	<0.1	≤5	<20
	15(60)A/10mA	15	10	4	<0.1	≤5	<20
	5(30)A/5mA	5	5	6	<0.1	≤5	<20
	20(80)A/10mA	20	10	4	<0.1	≤5	<20
	10(100)A/10mA	10	10	10	<0.1	≤5	<20
	5(20)A/5mA	5	5	4	<0.1	≤5	<20
The Triple CTs	0.3(1.2)A/5mA	0.3	5	4	<0.1	≤5	<20
	0.5(2)A/5mA	0.5	5	4	<0.1	≤5	<20
	1(4)A/5mA	1	5	4	<0.1	≤5	<20
	1.5(6)A/5mA	1.5	5	4	<0.1	≤5	<20
	2.5(10)A/5mA	2.5	5	4	<0.1	≤5	<20

Note: The above specifications are stock products' specifications. We can also design for customers according to their requirements.
