Mini Current Transformer with Minimal Phase Angle Error (GWTA2321)

Name: Mini Current Transformer with Minimal Phase Angle Error (GWTA2321)
Brand: all-electronics-online.com
SKU: 615548814
Availability: InStock
Rating: 4.9 (103 reviews)

Price:	US $ 0.5-1.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GWTA2321
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type1:	Current Transformer
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

Low cost

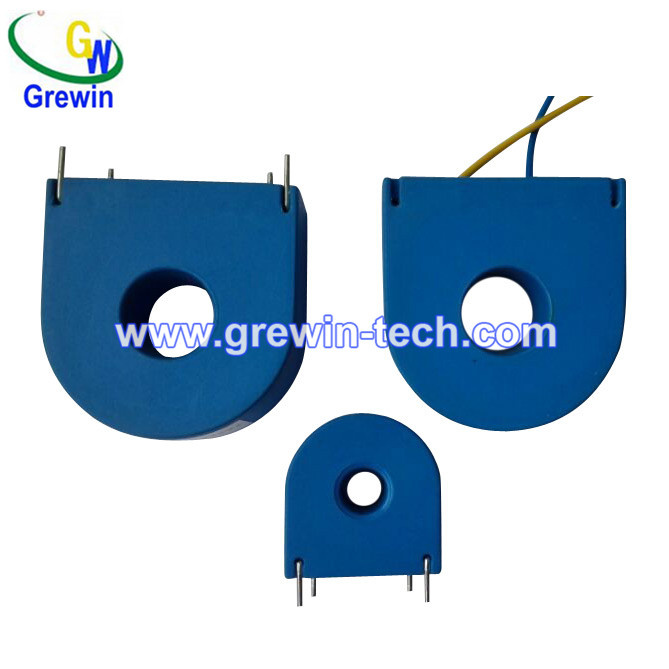

The GREWIN TA series Miniature current transformers are designed for applications where AC current signals must be transformed accurately into a lower AC current or voltage signal appropriate for micro-processor based circuits.
TAXX2X series current transformer is specially designed for steady protection relay, used to accurately convert steady-state shortcircuit current signal, which is 20, 30, 40, 50, 60 times of rated current, to signal in weak electric circuit. encapsulated with epoxy resin, this series can be used for poor working environment.

Features
       Low cost

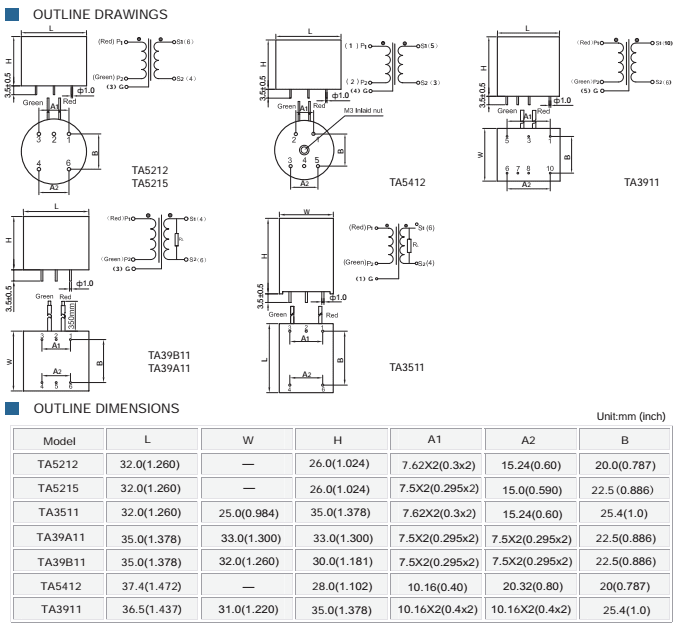

       More than 50 standard sizes
       Non-symmetrical mounting pattern
       Toroidal Silicon steel and Nickel Alloy cores
        available
Applications
       For applications that require exceptional
        accuracy with minimal phase angle error
       Applications would include Current, power and
        energy monitoring devices.
Specifications
       Exterior Material:PBT Resin UL flame retardant
        rating 94-V0
       Interior Insulation:Epoxy Encapsulated
       Isolation Current:2500 Vrms for 1 minute
       Dielectric Resistance:1000 M Ohms @ 500 Vdc
       Surge Withstand: 5000V(1.2/50μs standard
        shock wave)optional
       Rated Load Resistance:100K Ohms
       Operating Temperature:-25 to +55ºC,-40 to
        +85ºC optional
       Frequency:50 to 400 Hz
       Accuracy Class:as defined in IEC 60044-1 Part 1
        Current Transformers Class 0.5,1.0
       RoHS Compliant

contact info:

Victor Dong

Tianjin Grewin Technology Co.,Ltd.
Web: http://grewin-tech.en.made-in-china.com or www.grewin-tech.com
TEL:86-22-84943756
FAX:86-22-85909471

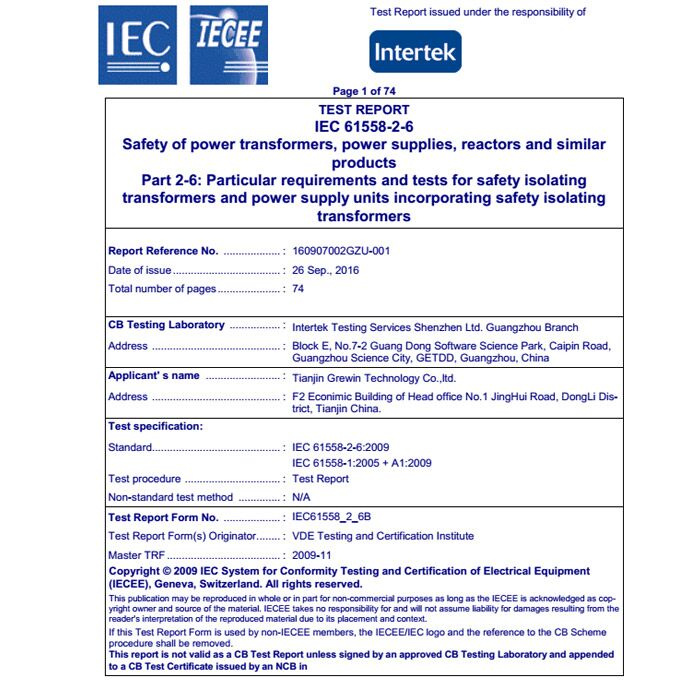

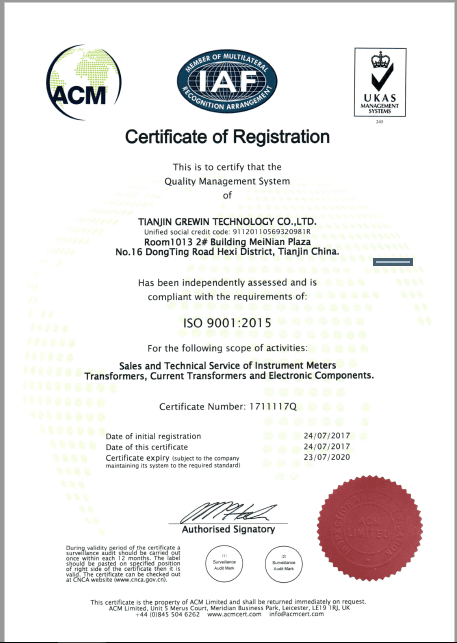

GREWIN as manufacture for Toroidal Transformer, current transformer, high frequency magnetics transformer, split core current sensor, clamp on CT, EI power Transformer etc. We have abtained ISO9001: 2015, IEC, CE, VDE, approval.

Our company have many advantages which can be your honesty and reliable supplier:

WHY CHOOSE US?

A. Business philosophy "Quality and Honesty First“

B. Over 40 years experience of transformer designing and producing.

C. Transformer 100% test before the shipment;

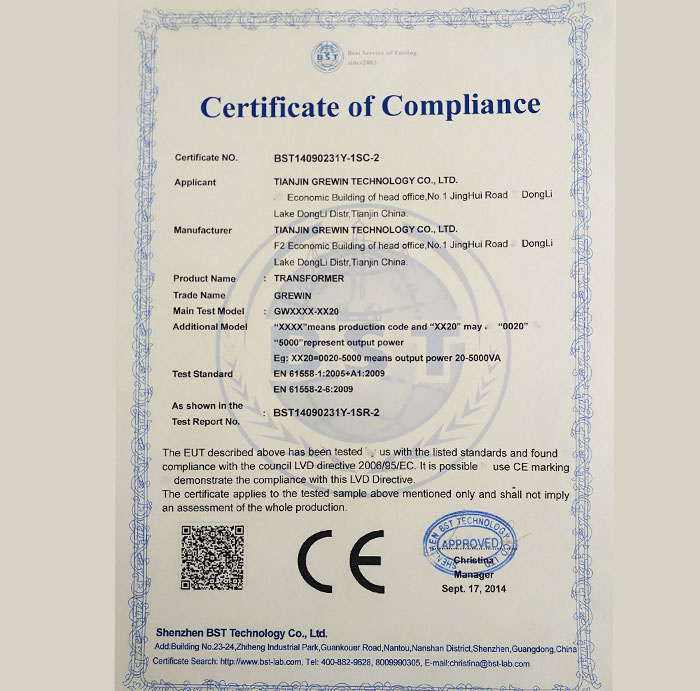

D. UL, CE, ISO9001: 2008

E. We offer custom-made transformers, OEM and ODM are welcome

F. We expect at consistently competitive prices

G. Transformer quality lifetime: 10 Years.

H. Professional experiences of the sales and engineers: 5 -10 Years

Grewin Mission: Growing together side by side, Mutual success hand in hand.

We sincerely invite you to join us to create a bright future.
