| Prod Model: |
ZWBMD010010-168 |
| Rated Voltage: |
3V DC |
| Gearbox Diameter: |
10mm |
| Gear Material: |
Metal |
| No Load Speed: |
98rpm |
| No Load Current: |
80mA(Max) |
| Rated Load Speed: |
86rpm |
| Rated Load Current: |
220mA(Max) |
| Torque: |
106 GF.Cm |
| Ratio: |
168:1 |
| Gearbox Type: |
Planetary Gear Motor |
| Application: |
CCTV Camera |
| Operating Speed: |
Low Speed |
| Structure And Working Principle: |
Brushless |
| Excitation Mode: |
Permanent Magnet |
| Casing Protection: |
Drip-Proof |
| Type: |
Gearbox Motor |
| Certification: |
RoHS |
| Brand: |
Zhaowei |
Product Description

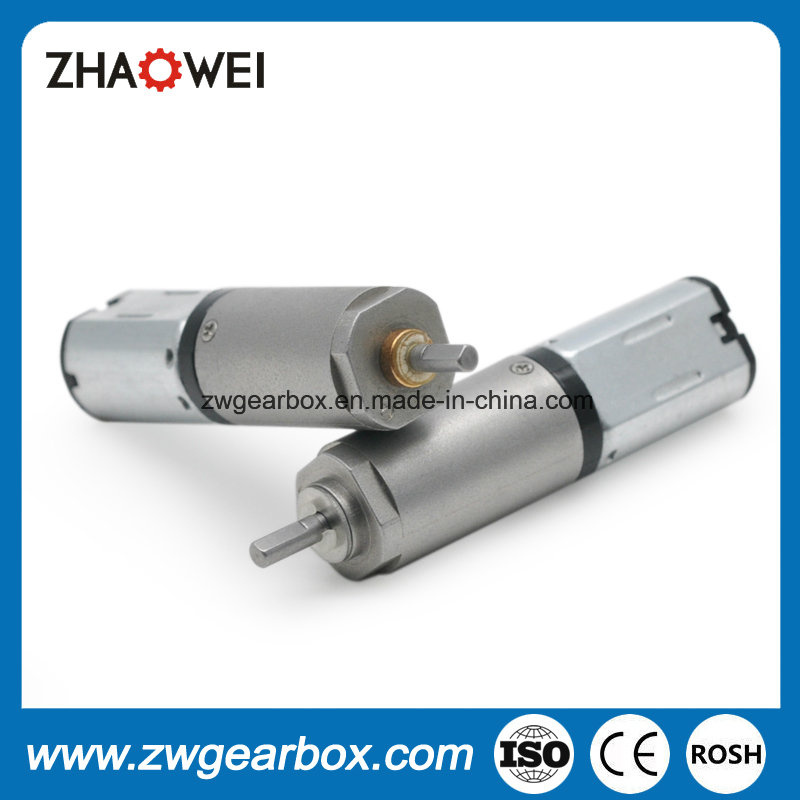

Mini Dc Geared Motor Planetary Gear Motor For Robot Toys
Product Description
Model: ZWBMD010010-168
Rated Voltage: 3.0V
No Load Speed: 98 rpm
No Load Current: 80mA(MAX)
Rated Load Speed: 86 rpm
Rated Load Current: 220mA(MAX)
Rated Load Torque: 106 gf.cm
Max Rated Torque of Gear Box: 2,000 gf.cm
Max Instant Torque of Gear Box: 6,000 gf.cm
Overall Length L: 34 mm
Gear Box Length L1: 19 mm
Model | Typical Application Parameters | Max Rated Torque of Gear Box | Max Instant Torque of Gear Box | Gear Ratio | Gear Box Length
L1 |
| Rated | At No Load | At Rated Load | Overall Length
L |
| Voltage | Speed | Current | Speed | Current | Torque |
| VDC | rpm | mA(MAX) | rpm | mA(MAX) | gf.cm | mN.m | mm | gf.cm | gf.cm | mm |
| ZWBMD010010-46 | 3.0 | 375 | 80 | 315 | 215 | 39 | 3.8 | 30.9 | 2000 | 6000 | 46 | 15.9 |
| ZWBMD010010-69 | 3.0 | 250 | 80 | 210 | 215 | 58 | 5.7 | 2000 | 6000 | 69 |
| ZWBMD010010-102 | 3.0 | 169 | 80 | 142 | 215 | 86 | 8.4 | 2000 | 6000 | 102 |
| ZWBMD010010-151 | 3.0 | 114 | 80 | 96 | 215 | 127 | 12.5 | 2000 | 6000 | 151 |
| ZWBMD010010-168 | 3.0 | 98 | 80 | 86 | 220 | 106 | 10.4 | 34 | 2000 | 6000 | 168 | 19 |
| ZWBMD010010-249 | 3.0 | 66 | 80 | 58 | 220 | 158 | 15 | 2000 | 6000 | 249 |
| ZWBMD010010-368 | 3.0 | 45 | 80 | 39 | 220 | 233 | 23 | 2000 | 6000 | 368 |
| ZWBMD010010-546 | 3.0 | 30 | 80 | 27 | 220 | 346 | 34 | 2000 | 6000 | 546 |
| ZWBMD010010-809 | 3.0 | 20 | 80 | 18 | 220 | 512 | 50 | 2000 | 6000 | 809 |
above specifications just for reference and customizable according to requirements.
