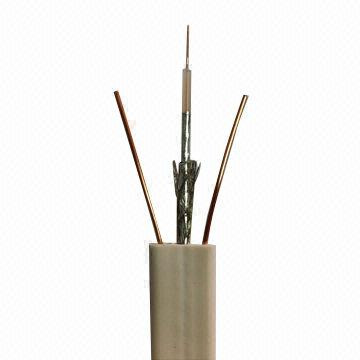

Mini Flat Cable with Ground Wire

Mini Flat Cable with Ground Wire
Price: Negotiable/Piece
Trade Terms: FOB,CIF,DAP
Min Order: 20km
Pay Type: L/C,T/T
Prod Model: Coaxial Cable
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Type: Coaxial Cable
Cable: Flat Cable
Cable Use: with Groudle Wire
Cable Feature: Can Pass Wall or Window
Application: Coaxial Cable
Conductor Material: BC/CCS/CCA/TC/CU/CCAG
Cover Material: PVC
Certification: RoHS

Product Description

Conductor:
Outer diameter: 30AWG, 0.250 ±0.01mm
Material: annealed solid copper
Dielectric:
Material: solid PE
Outer diameter: 1.54mm
Cap: 70 nom
Color: transparent
Al foil:
Foil type: 0.055x7mm Al/PET
Overlap: 20%
Braiding construction:
38AWG, 4x16x0.10 ±0.03mm
Material: tinned copper wire
Coverage rate: 75%
Ground wire:
Outer diameter: 20AWG, 0.81 ±0.01mm
Material: CCS, 21% conductivity
Jacket:
Material: white PVC
Outer diameter: 10x2.9mm
Product NameFlat Coaxial Cable



UnitDescriptionDrawing
30AWG*1
coaxial cable
ConductorSizeAWG0.260±0.01mm
MaterialmmSoft Bare Copper
InsulationMaterialgSolid PE
O.D.mm1.54±0.05mm
Al foilTypemm0.055×7mm Single Bonded TapeElectrical Characteristics
Overlap/Min.20%Return loss ≥23dB, 5-3000MHz
BraidingTypemm4×16×0.11
Material/Tinned Copper
Coverage/97%
20AWG*2Ground QireSize
0.81±0.01mm
Material
21% IACS,CCS
JacketMaterial/PVC,White
O.D.mm10±0.1*3.0±0.1mm


Wanma is a professional cable manufacture located in Lin'an, Zhejiang Province, an ancient Chinese city.Since its establishment in 1989, Wanma has devoted over 20 years in constantly research, investigation, and improvement in not only our products, but also management philosophies and technical abilities.Thus allowing us to achieve rapid progress in the field of cable manufacturing industry, and also becoming a trusted OEM and ODM supplier to a number of well-known Fortunes 500 enterprises and many famous CATV, satellite system operators across the world.

Our major products include RG series cable, HDMI, USB2.0&3.0, A/V and Fiber Optic cables.Our annual output includes 700, 000 km of coaxial cables and 20 million pieces of related cable assemblies.Along with the development of cable products, we've also paid great attention to vertical integration of the supply chain;We set up our own individual plant for PVC and Aluminum foil.

Utmost quality is our constantly seeking and demand, we have accurate testing device for high frequency electrical performance, and a full set of testing equipments complying with UL's strict requirements.We passed through ISO 9002 quality system acceptance in 1999, acceptance to UL's safety specification as well as CSA nominated products in 2002.We became HDMI adopter and passed HDMI Compliance Test in 2010.In addition, we have passed GE and Thomson's quality management audit.

We are determined to assume the responsibility for the protection of our environment and society.We passed the SGS ethics acceptance in 2005, ISO 14000 acceptance in 2006, Wal-Mart EHS audit in 2012.Our products completely conform to the requirements of RoHS guidance.

We are always ready for your professional inquiry.
