Mini Frequency Inverter/VFD with Low Price & High Performance
| Price: |
US $ 10-100/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |
| Prod Model: |
M100 |
| Item Name: |
AC Variable Frequency Drive |
| Control Mode: |
V/F |
| Communication Control: |
RS485 |
| Humidity: |
0-95% Relative Humidity (Without Dew) |
| Vibration: |
Below 0.5g |
| Keypad: |
Extensionable |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Current |
| Function: |
Perfect for Pump & Fan |
| Brand: |
Machtric |
Product Description
M100 Low Price Simple Operation Single Phase AC Variable Frequency Inverter 2.2kw AC Drive
1.General Specifications
| Inverter Series | M100 |
| Control Mode | SPWM |
| Input Power | 380V Power supply: 380±15% 220V Power supply:
220±15% |
4-Digits Display & Status
Indicator Lamp | Displaying frequency, current, revolution, voltage, counter,
temperature, forward or reserve running, and fault, etc. |
| Communication Control | RS-485 |
| Operation Temperature | -10~40ºC |
| Humidity | 0-95% Relative Humidity (without dew) |
| Vibration | Below 0.5G |
Performance and Motor Control | Range | 0.10~600.00Hz |
| Accuracy | Digital: 0.01% (-10-40ºC) ; Analog: 0.1% (25±10ºC) |
| Setting Resolution | Digital: 0.01Hz; Analog: 1%o of Max. Operating Frequency |
| Output Resolution | 0.01Hz |
| Keyboard Setting Method | Press directly to set |
| Analog Setting Method | External Voltage 0-5V, 0-10V, 4-20mA,0-20mA |
| Other Functions | Frequency lower limit, starting frequency, stopping frequency,
three skip frequencies can be respectively set. |
| Ramp Control | Selectable 4-speed steps ramp-up and down time (0.1-6500s). |
| V/F Curve | Set V/F curve at will |
| Torque Control | Torque increase is settable by max. 10.0%. The starting torque
can reach 150% at 1.0Hz. |
| Multi-Inputs | 6 multi-function input terminals for 8-speed steps control,
program operation, switching of 4-speed Ramp, UP/DOWN
function, counter, external emergency stop and other functions. |
| Multi-Outputs | 1 multi-function output terminals for displaying of running, zero
speed, counter, external abnormity, program operation and other
information and warnings. |
| Other Functions | AVR (auto voltage regulation), Deceleration stop or free-stop,
DC brake, auto reset and restart, frequency track, PLC control,
traverse function, drawing control, auto energy-savings, carrier
adjustable by max. 16KHz, etc. |
Protection | Overload Protection | Electronic relay protection motor
Drive (for constant torque 150%/1 min; for the kinds of fan
120%/1min.) |
| FUSE Protection | FUSE broken, motor stops. |
| Over-voltage | DC Voltage > 400V for 220V class
DC Voltage > 800V for 380V class |
| Low Voltage | DC Voltage < 130V for 220V class
DC Voltage < 300V for 380V class |
| Instant Stop and Restart | Restarted by frequency track after instantaneous stop. |
| Stall Prevention | Anti-stall during Acc/Dec run |
| Output End Shorts | Electronic circuit protecting |
| Other Functions | Fin over-heat protection, restriction of reverse running, direct
start after power on, fault reset, parameter lock PID,
one-drive-more, etc. |
2.Label Information:

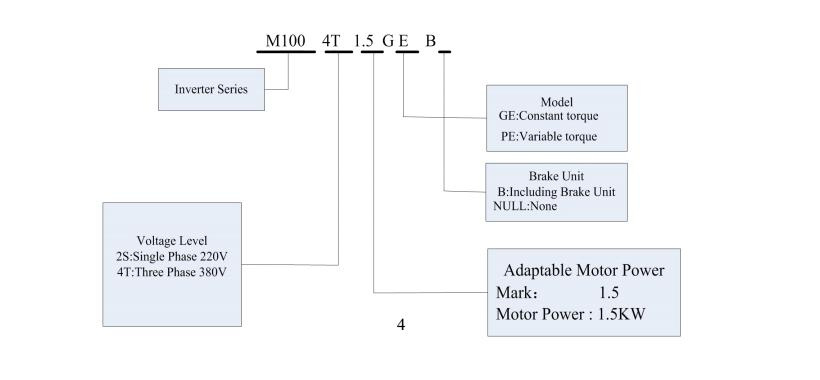

3.Type Difination:

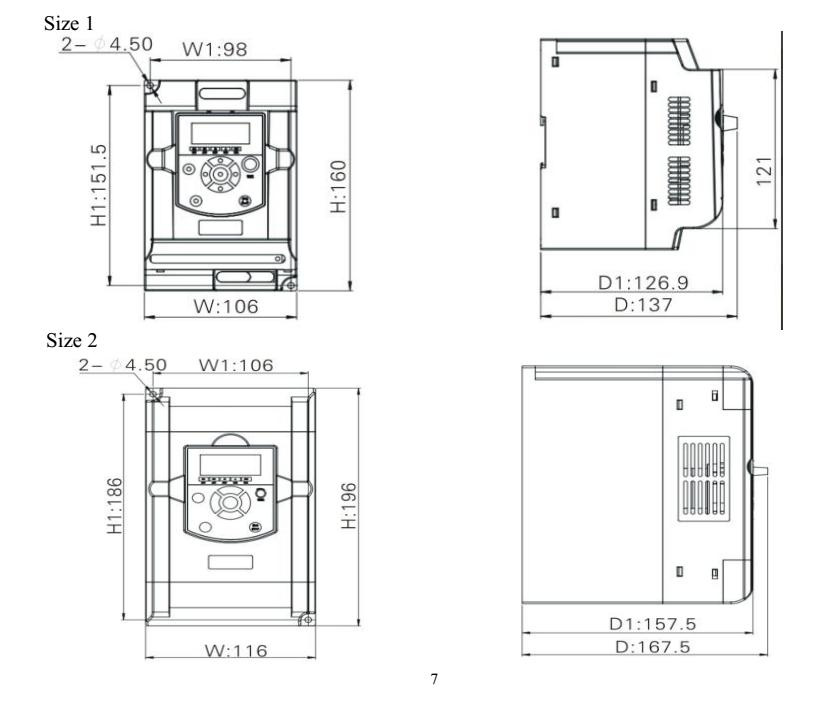

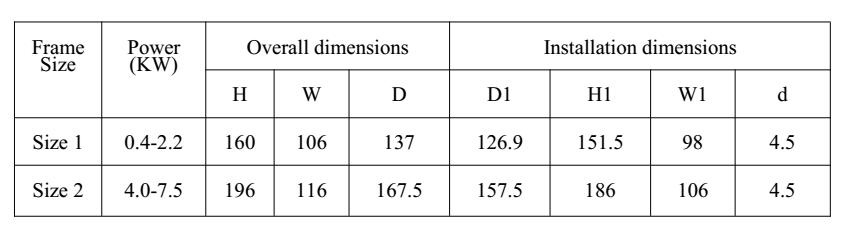

4.Dimension:

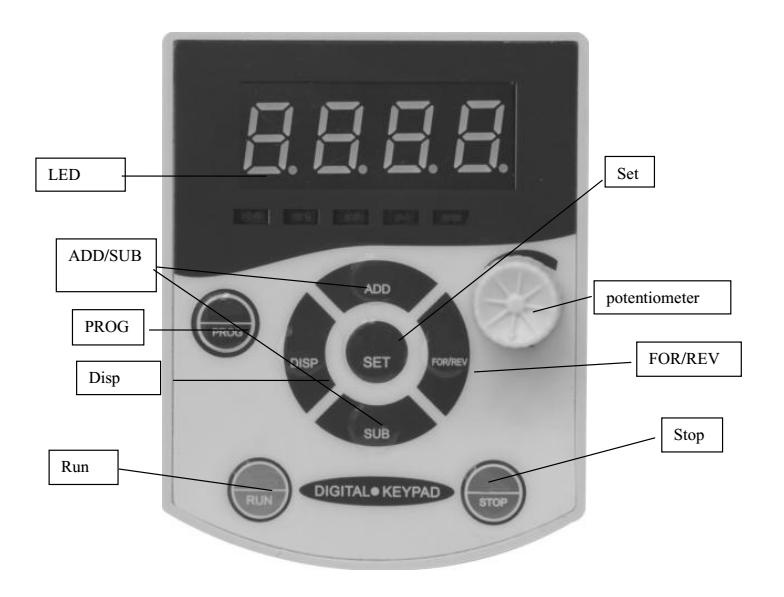

5.Keypad Information:

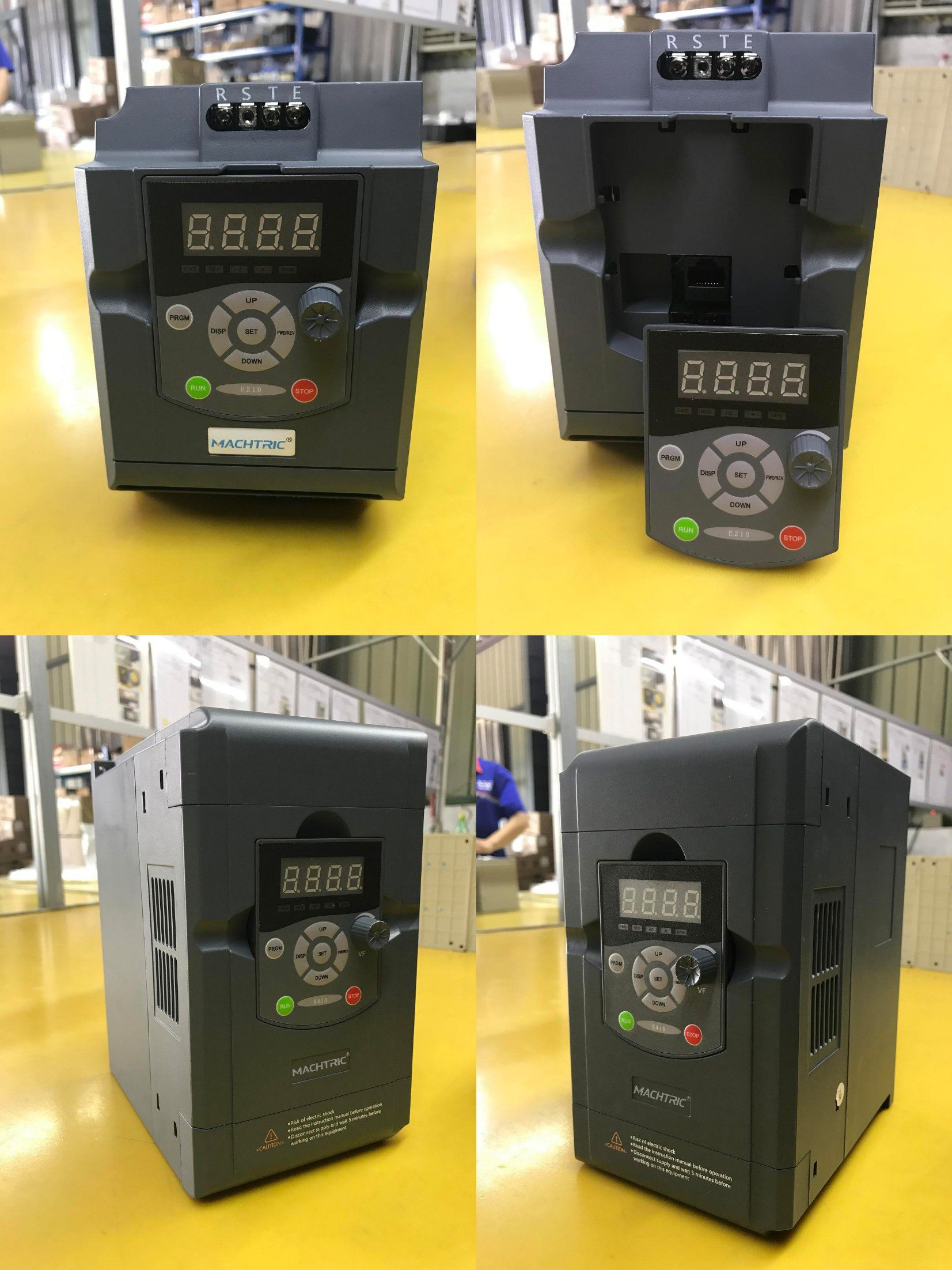

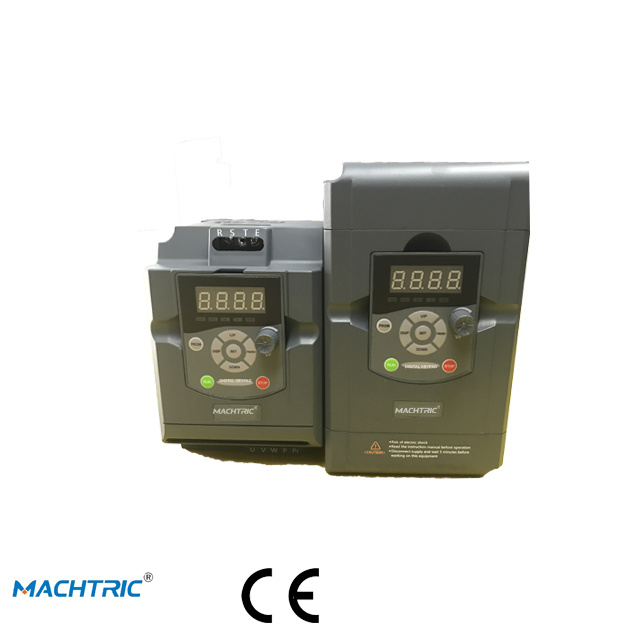

6.Product Show:
