Mini Fuse Holder, High Voltage Fuse

Prod Model:	RL1
Model:	Rl1
Certification:	Ce
Electric Ratings:	AC400V (380V), up to 200A
Application:	for Protection of Electric Circuits
Type:	Current Fuse
Usaga:	Low Voltage
Breaking Capacity:	Low Voltage Fuse

Product Description

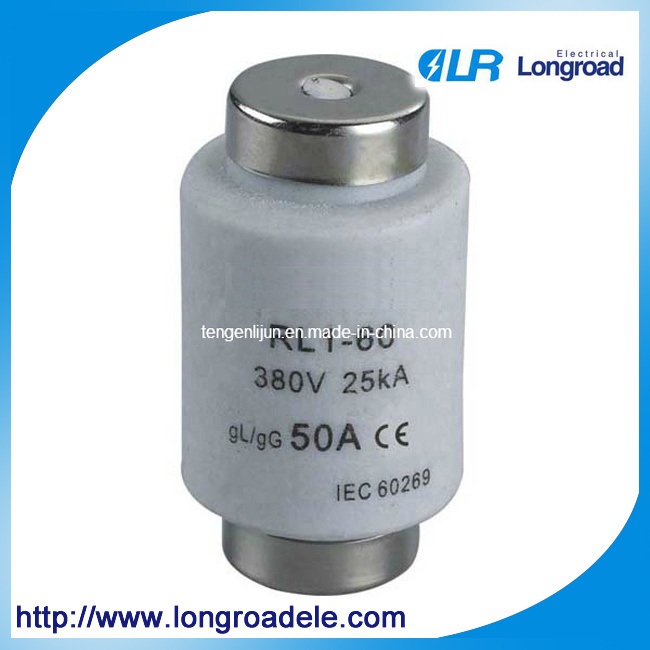

+Model RL1 Fuse for machine tool
1. Electric ratings: AC400V (380V), up to 200A;
2. Application: For protection of electric circuits;
3. Standard: IEC 60269.

Model	Rated Voltage(V)	Rated Current of Fuse(A)	Rated Current(A)	Rated Breaking Capacity(kA)	CosΦ
RL1-15	380	15	2,4,6,10,15	50	0.1~0.2
RL1-60	380	60	20,25,30,35,40,50,60	50	0.1~0.2
RL1-100	400	100	60,80,100	50	0.1~0.2
Rl1-200	400	200	100,150,200	50	0.1~0.2
