| Prod Model: |
A18 |
| GPS Positioning Accuracy: |
Less Than 5m(2D RM) |
| GPS Sensitivity: |
-159dBm |
| G-Sensor: |
Support |
| GSM Positioning: |
100-1000m |
| SIM Card Slot: |
One Slot |
| GPRS: |
Class 12 |
| Battery Capacity: |
450mAh |
| Sos Emergnecy Call: |
Support |
| GPS Channels: |
22 Channels |
| Size: |
40X38X15mm |
Product Description
Functions:
1. Delicate appearance pendant.
2. GPS + LBS multimode precise.
3. positioning, static dormancy save.
4. electricity design, real-time positioning, intelligent monitoring.

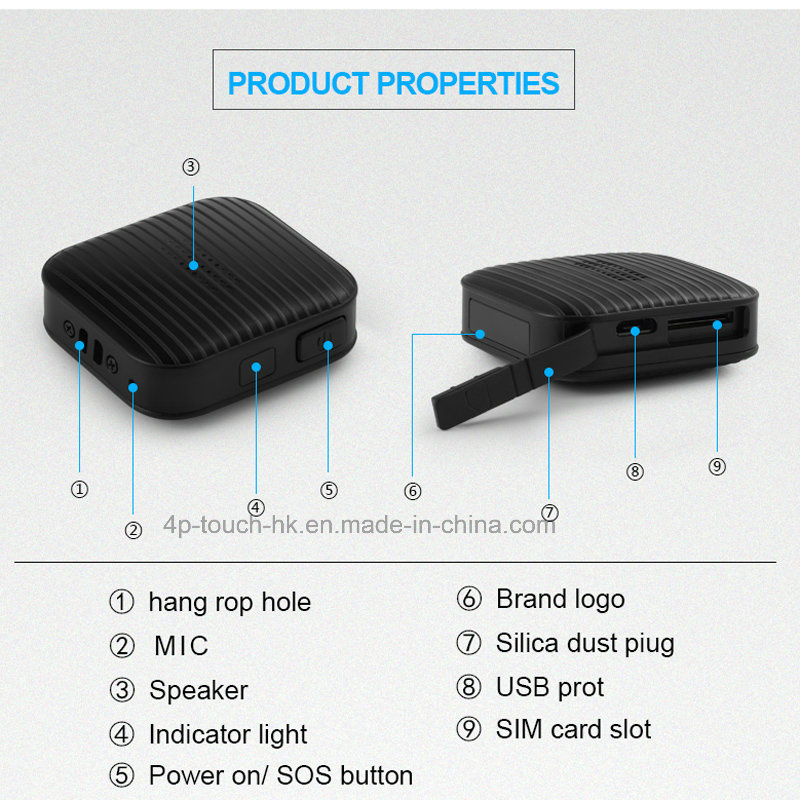

| Structure parts | type | Specification |
| ID design | Fashion |
| Whole machine size | 40x38x15mm |
| Net Weight | 21.5g |
| Color | white/ black |
| Button | Power button/SOS button |
| gps antenna | High sensitive ceramics active antenna |
| GSM antenna | Four frenquency PIFA antenna |
| Battery | 450mAh |
| SIM card type | Micro SIM |
| G-senser | Support |
| I/O port | USB charge |
| Hardware parts | Chip | MTK MT2503 |
| GPRS | Class12 |
| GPS signal | L1,1575.42MHz C/A |
| GPS channel number | 22 channels |
| GPS chip receive sensitivity | Tracking sensitivity:-165dBm,capture sensitivity:-148dBm |
| GPS location accuracy | 5~15m |
| LBS location accuracy | 100~1000m |
| Minimum standby current | Less than 0.5 mA |
| Average standby current | Less than 2.5 mA |
| Average working current | About 55mA |
| Working temperature | -20~70ºC |
| Working humidity | 5% to 95% non-congealable |
| Test and certification | Can pass 3C and CE certification |
| GPS antenna | High sensitive ceramics active antenna |
| GSM antenna | Four frenquency PIFA antenna |
| Bluetooth | bluetooth 3.0(close normal time) |
| G-senser | Supported |
| MIC | Supported |
| Software parts | Support operate system | Support 2.3 and above system, IOS5.0 and above |
| Call function | Two way talk/remote voice monitor |
| Language support | Simplified Chinese, English |
| Positioning | GPS+LBS positioning |
| Support AGPS | Cool start 26 seconds positioning |
| Call function | SOS call ,voice monitoring,whitelist do not disturb mode |
| Power management | Ultra-low consumption of power managment, intelligent dormancy |
| One key emergency | SOS one button emergency call ,auto-dailing |
| Smart Geo-fence | Can automatic alarm when out of range |
| Historicial route | Can check three months' historical route |
| Wireless upgrading | Software remote upgrading, remote debugging maintence , remote setting parameters |
