| Prod Model: |
DC Brushless Gear motor GMP56-TEC5760 |
| Product Name: |
DC Brushless Gear motor GMP56-TEC5760 |
| Rated Voltage: |
12-24V |
| No-load Speed: |
6-1950rpm |
| No-load Current: |
200-700mA |
| Rated Speed: |
6-1500rpm |
| Rated Torque: |
4.0-300kg.cm |
| Rated Current: |
2100-7600mA |
| Output Power: |
18-132W |
| Stall Torque: |
2400-6700g.cm |
| Stall Current: |
5.0-12A |
| Application: |
Power Tools |
| Operating Speed: |
Low Speed |
| Structure And Working Principle: |
Brushless |
| Excitation Mode: |
Permanent Magnet |
| Type: |
DC Brushless Gear motor |
| Certification: |
RoHS CE |
| Brand: |
TT motor |

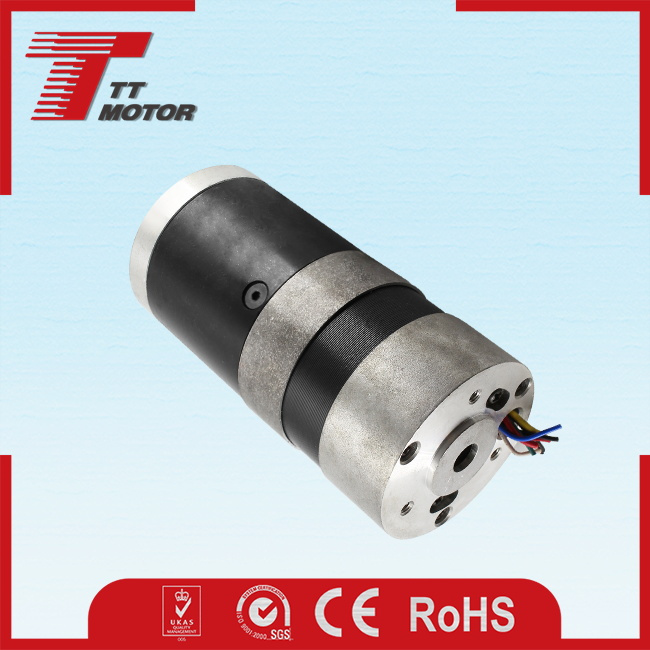

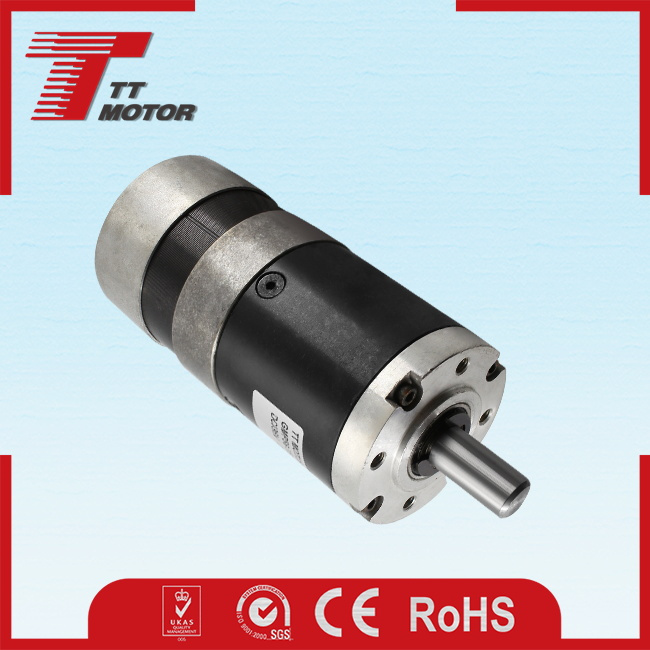

Product Description
Mini gear 12v dc brushless motor for vending machine
Main Features1.OEM/ODM 56mm gearbox plus 57mm brushless motor
2.Small size dc gear motor with low speed and big torque
3.56mm gear motor provide 30.0Nm torque and more reliable
4.Suitable to small diameter, low noise and big torque application
5.Reduction ratio:4
,13
,15
,18
,47
,55
,65
,77
,168
,198
,234
,276
,326
| Motor model no. | Rated voltage | No-load speed | No-load current | Rated speed | Rated torque | Rated current | Output power | Stall torque | Stall current |
| VDC | r/min | mA | r/min | g.cm | mA | W | g.cm | A |
| TEC5760-1220 | 12.0 | 2000 | 350 | 1600 | 1100 | 2100 | 18 | 2400 | 5.0 |
| TEC5760-2440 | 24.0 | 4000 | 200 | 3000 | 1600 | 3500 | 50 | 4500 | 8.0 |
| TEC5760-2480 | 24.0 | 8000 | 700 | 6100 | 2100 | 7600 | 132 | 6700 | 12.0 |

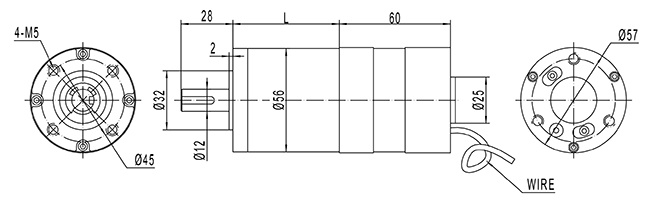

Gear motor technical data : GMP56-TEC5760-1220-xxx| Reduction ratio | 4 | 13 | 18 | 47 | 55 | 77 | 168 | 198 | 326 |
| Length mm | 36 | 48 | 48 | 59 | 59 | 59 | 70.2 | 70.2 | 70.2 |
| No-load speed rpm | 500 | 150 | 110 | 42 | 36 | 26 | 12 | 10 | 6 |
| Rated speed rpm | 400 | 120 | 88 | 34 | 29 | 21 | 10 | 8 | 6 |
| Rated torque kg.cm | 4.0 | 11 | 16 | 36 | 42 | 59 | 110 | 130 | 215 |
| Max.momentary tolerance torque kg.cm | 9 | 25 | 35 | 79 | 92 | 129 | 242 | 285 | 300 |
Gear motor technical data : GMP56-TEC5760-2440-xxx| Reduction ratio | 4 | 13 | 18 | 47 | 55 | 77 | 168 | 198 | 326 |
| Length mm | 36 | 48 | 48 | 59 | 59 | 59 | 70.2 | 70.2 | 70.2 |
| No-load speed rpm | 950 | 300 | 220 | 80 | 70 | 50 | 23 | 20 | 12 |
| Rated speed rpm | 750 | 230 | 165 | 64 | 55 | 39 | 18 | 15 | 9 |
| Rated torque kg.cm | 6.0 | 17 | 23 | 53 | 62 | 86 | 161 | 190 | 300 |
| Max.momentary tolerance torque kg.cm | 16 | 47 | 65 | 148 | 173 | 243 | 300 | 300 | 300 |
Gear motor technical data : GMP56-TEC5760-2480-xxx| Reduction ratio | 4 | 13 | 18 | 47 | 55 | 77 | 168 | 198 | 326 |
| Length mm | 36 | 48 | 48 | 59 | 59 | 59 | 70.2 | 70.2 | 70.2 |
| No-load speed rpm | 1950 | 600 | 430 | 165 | 140 | 100 | 47 | 40 | 24 |
| Rated speed rpm | 1500 | 470 | 340 | 130 | 110 | 80 | 36 | 30 | 19 |
| Rated torque kg.cm | 8.0 | 22 | 30 | 69 | 81 | 110 | 210 | 250 | 300 |
| Max.momentary tolerance torque kg.cm | 24 | 70 | 98 | 220 | 258 | 300 | 300 | 300 | 300 |
Related ProductsProduct ApplicationWindows or doors electric locks, micro hoist, Garbage disposal, water IC CARDS, toys and gifts, figer - electronic locks, optical devices,
Card machine, robot, towel machine, office equipment, household appliances, automatic actuator,etc| Other Applications: |
| Business Machines: | ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines. |
| Food and Beverage: | Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Home Entertainment and Gaming: | Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys. |
| Home Technologies: | Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines. |
| Lawn and Garden: | Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers. |
| Personal Care: | Hair Cutting, Hair Care, Massagers. |
| Power Tools: | Drills and Drivers, Sanders, Grinders, Polishers, Saws. |
| Camera and Optical: | Video, Cameras, Projectors. |
Packing & DeliveryPackaging: single carton packing, 100 pieces per box.
Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
By Sea: Depends on which country
Our CompanyTT Motor (HK) Industrial Co., Ltd has been specializing in micro motors, gear motors and their respective parts since 2000.
Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide.

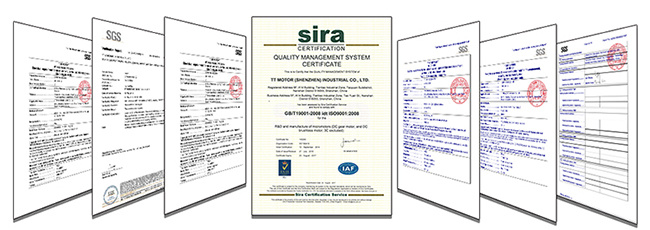

By leveraging our hard-won reputation for honesty, dependability and quality, TT Motor aims to continue as a pioneer in the sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us. We look forward to being able to work together with you in the near future.CertificationsFAQQ: How to order?
