| Prod Model: |
GPS Car Obdii Tracker GPS306A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dim: |
64.5×50×27mm |
| Weight: |
60g |
| Network: |
GSM/GPRS |
| Band: |
850/900/1800/1900MHz |
| GPS Sensitivity: |
-165dBm |
| GPS Accuracy: |
5meters |
| Backup Battery: |
Chargeable 3.7V 200mAh Li-Battery |
| Applying Directions: |
12-24V Cars, Vehicles, Fleet Management |
| Vehicle OBD II Tracking: |
Vehicle OBD II Tracker (9-40V), Vehicle Fleet Manag |
| Request For OBD Data By SMS: |
Mileage, Fuel, Diagnostic Trouble Code |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No |
| Operating Principle: |
GPS Position and GSM Transmit |
| Port Number: |
20 |
| Model: |
Obdii GPS306 |
| Brand: |
Baanool Gp Stracker |
| Chip: |
No |
| Certification: |
ISO9001 |
Product Description

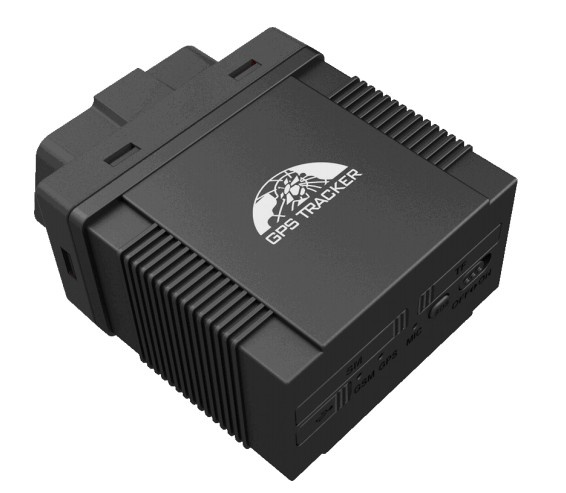

Mini GPRS GPS Car Obdii Tracker with Diagnostic report GPS306
Model:GPS306
how does the GPS Tracker work?
GPS306 is our newly designed plug-and -play OBD tracker. It could read OBD parameters from car ECU and GPS tracking for car location; All data will be transmit to the backend server for remote diagnostic and tracking purpose.
Content Specification
DIM : 64.5×50×27mm
Weight: 60g
Network: GSM/GPRS
Band: 850/900/1800/1900Mhz
GPS Sensitivity : -165dBm
GPS Accuracy: 5m
Backup Battery: Chargeable 3.7V 200mAh Li-Battery
Storage Temp.: -40°C to +85°C
Operation Temp.:-20°C to +70°C
Applying directions:
12-24V cars,vehicles,fleet management
The product supports existing OBD protocol:
SAE J1850 PWM
SAE J1850 VPW
ISO 9141-2
ISO 14230-4 (KWP2000_5BPS)
ISO 14230-4 (KWP2000_FAST)
ISO 15765-4 (CAN500_11BIT)
ISO 15765-4 (CAN500_29BIT)
ISO 15765-4 (CAN250_11BIT)
ISO 15765-4 (CAN250_29BIT)
Main features :
1.Vehicle OBD II tracker (9-40V)
2.Location based service(LBS) + GPS double real time tracking solution
Monitor
3.SOS panic button
4.Geofence,movement,overspeed alarms.low battery, ext.power off alarm.
5.Alarms under ARM :Shock/ACC alarms.
6.Request for OBD data by SMS:
Fuel measurement
fuel consumption
mileage
speed
engine status
Diagnostic Trouble Codes,etc
7.Troube and maintenance notification
8.multi power-saving mode :
Sleep by time / shock sensor
deep sleep
awake at specific time
9.Save GPRS traffic mode
10.Built-in memory for 16,000 positions
11.Built-in 200 mA polymer battery
12.SMS tracking on cell phone with google map link
13.Absolute street address by SMS
14.Web server, free PC tracking soft, Mobile phone APP
Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
Specification
| Content | Specification |
| DIM | 64.5×50×27mm |
| Weight | 60g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -165dBm |
| GPS Accuracy | 5m |
| GPS Start Time | Cold status 30s
Warm status 11s
Hot status 1s |
| Backup Battery | Chargeable changeable 3.7V 200mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |

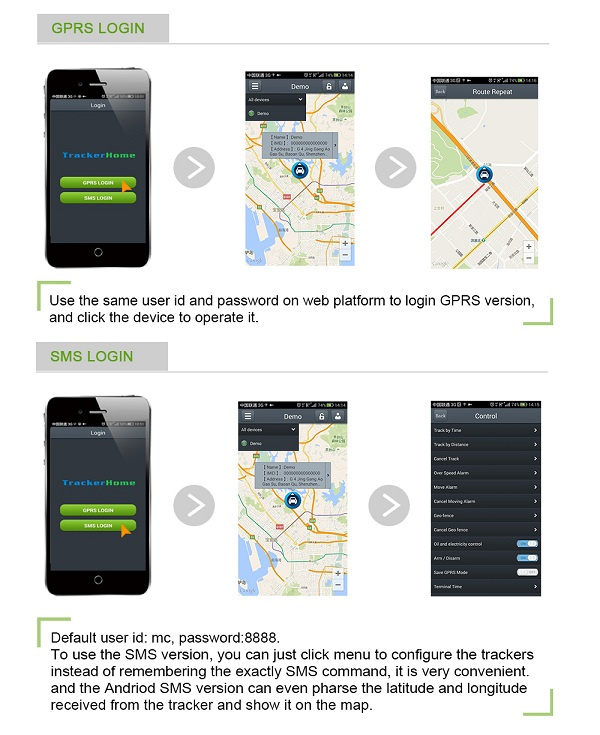

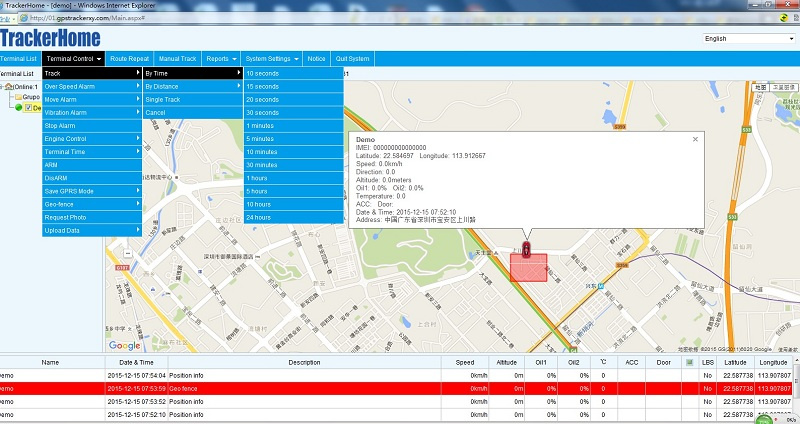

1. Four types Tracking way:
A>: SMS + Map software;B>: mobile app:ios app and andriod appC>: Real time tracking, and track via your computer;D>: simple & useful real time tracking via our website www.gpstrackerxy.com, demo id:demo,password:8888It is ok to track 10,000pcs units in platform at one time!
Android IOS app tracking
