Mini GPS Child/Personal Tracker for Safety and Emergency Situation A9
| Price: |
US $ 24-25/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
A9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Position: |
GPS+WiFi+Lbs |
| Battery: |
450mAh |
| Working Time: |
2-3days |
| Real-Time Positioning: |
Support |
| Sos Emergency Call: |
Support |
| Historical Route: |
Can Check History of Three Months |
| Language: |
Chinese, English |
| System: |
Support Android 2.3 and Above, Ios5.0 and Above |
| Test And Certification: |
Can Pass 3c and Ce Certification |
| Color: |
Green, White, Red |
Product Description
Mini GPS Tracker Key Pendant
1.2G/GSM network: 850/900/1800/1900MHz
2.Size: 46DIA*12mm
3.Net Weight:40g
4.Button: One button(power button and SOS button)
5.GPS antenna: Built-in high sensitivity ceramic antenna
6.GSM antenna: FPC antenna
7.Rechargeable lithium battery: 450mAh
8.SIM card slot: Micro SIM Card slot
9.Chipset: MTK2503
10.GPS chip:MTK3327
11.software: Android 2.3 and above, iOS 5.0 and above
12.Colors:Green, White, Red
13.Working time:2-3days
Main Features:1. Delicate appearance pendant.
2. GPS + WIFI + LBS multimode precise.
3. positioning, static dormancy save.
4. electricity design, real-time positioning, intelligent monitoring.

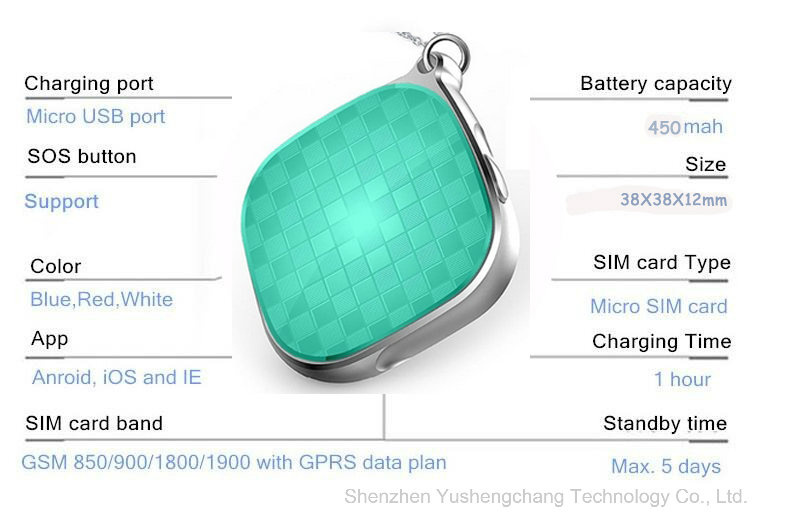

1. Structure |
| Structure | Item | Specification |
| ID style | Delicate and mini |
| Product size | 38X38X12mm |
| Colors | Green ,white,Red |
| Button | One button(Power button/SOS button) |
| Screen | No |
| gps antenna | High sensitivity ceramic active antenna |
| GSM antenna | FPC antenna |
| Battery | 450mAh |
| SIM card | One |
| G-sensor | Support |
| I/O port | USB charging |
| 2. Hardware |
| Hardware | Chipset | MTK MT6261 |
| GPS chip | MTK3337 |
| GPRS | Class12 |
| GPS signal | L1,1575.42MHz C/A |
| GPS channels | 22 channels |
| GPS receiving sensitivity of chip level | Track:-165dBm,Catch:-148dBm |
| GPS Positioning accuracy | 5~15 M |
| LBS Positioning accuracy | 100-1000M |
| Minimum standby current | <0.5 mA |
| The average standby current | <2.5 mA |
| The average working current | About 55mA |
| Working Temp. | -20~70ºC |
| Operating humidity | 5% to 95% noncondensing |
| Test and Certification | Can pass 3C and CE certification |
| GPS antenna | Built-in high sensitivity FPC antenna |
| GSM antenna | Built-in four frequency PIFA antenna |
| Bluetooth | Bluetooth 3.0(Normal Closed) |
| G-sensor | Support |
| MIC | Support |
| 3.Software |
| Software | OS | Support Android 2.3 and above ,IOS5.0 and above |
| Call function | Two-way communication/remote pickup |
| Language | Chinese,English |
| GSM+GPRS+GPS | GPS+WIFI+LBS multimode positioning |
| Support AGPS | Cold start 26 seconds positioning |
| Call Function | SOS call ,Voice monitoring ,Whitelist no disturbing function |
| Power management | Ultra-low power consumption of power management,Smart Stay |
| A key emergency | A key to SOS emergency function, automatic answering the call |
| Intelligent fence | Outside the range set can be automatic alarm |
| Historical route | Can check history of three months |
| Wireless upgrading | Remote software upgrade, remote debugging maintenance, remote setting parameters |
