| Prod Model: |
GPS GSM Tracker Tk102 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manuacturer Or Not: |
Yes |
| Feature: |
Waterproof, Magnetic, Mini |
| OEM Or Not: |
Yes |
| Certificate: |
CE FCC ISO |
| Packaging: |
40 Unit /Carton in Standard Color Box |
| Shipment: |
by Express or by Air |
| Delivery Time: |
2-3 Business Days |
| Warranty Time: |
1 Year |
| Network: |
GSM/GPRS |
| Tracking Way: |
SMS, Web Platform, Phone APP |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Operating Principle: |
GPS, GSM, GPRS Tracking System |
| Port Number: |
20 |
| Model: |
Tk102 GPS Tracker Magnetic |
| Screen Size: |
No Screen |
| Brand: |
Coban |
| Certification: |
CE FCC ISO |
Product Description

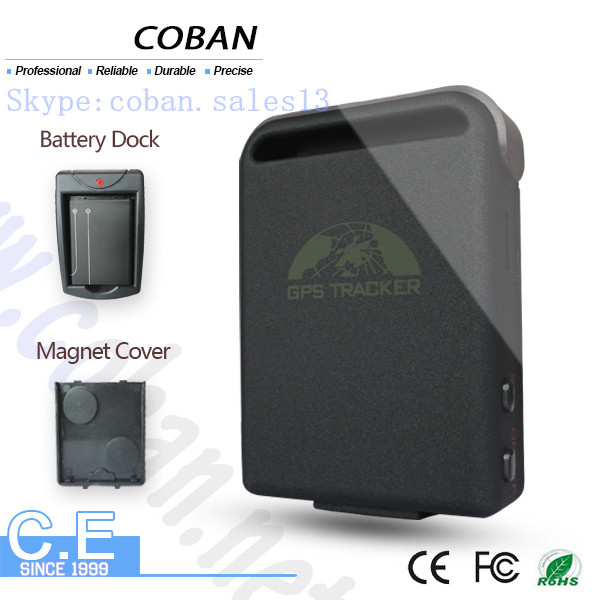

Mini GPS GSM Tracker Tk102 magnetic gps car trackers with Sos Geo-Fence Alarm System
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
1. Summary
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
2. Features
* Vehicle rental / Fleet management etc
* Powerful magnet + water proof, adsorbing in the hidden place of car for tracking secretly.
* Protect child / the old / the disabled / pet etc.
* Provide peace-of-mind for businessmen
* Personnel Management
* Criminals Tracking
3. Main Function Description
*With internal memory,support SD memory
*Quiver/sensor alarm (adjustable)
*Powerful magnet+water proof,adsorbing in the hidden place of car.
*Get location in real street/address name, send "address+password to tracker, tracker will reply detailed street address, e.g. No.113, Nantou guankou 2nd Rd, Nanshan, shenzhen, china.
*Location based service function.
*Multiple tracking ways;Provide monitor software with the global map free,
real-time track by your computer or PDA cell phone or google earth.
*Standby 80hours.
*Small cubage;
Dimension: 46*64*17mm (1.8*2.5*0.65inch)
Weight: 40g
*Can support platform www.gpstrackerxy.com for real time track on map or inquire the target's position by mobile phone.Also,it come with free software in CD.
*Tracking function by timing and frequency
*Authorized number added and deleted function
*Support hidden alarm and monitor function
*Geo-fence.
*Move alarm
*Over speed alarm.
*Low battery and SOS alarm function
*TCP/UDP switch
*Forward the third parties'message
*Configure parameters by USB
Sepecification :
Content | Specs. |
| Dim. | 64mm x 46mm x 17mm(1.8"*2.5"*0.65") |
| Weight | 50g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| Time To First Fix | Cold status 45s
Warm status 35s
Hot status 1s |
| Car charger | 12_24V input
5V output |
| Wall charger | 110-220V input
5V output |
| Battery | Chargeable changeable 3.7V 1000mAh Li-ion battery |
| Standby | 80hours |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +55°C |
| Humidity | 5%--95% non-condensing |
How to tracking ?
Five types Tracking way:
A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: simple & useful real time tracking via our website www.baanool.net
E >: IOS and Android APP
Shipment and delivery:
We will send the good out in 2-3 working days once received your payment with real time tracking No.
DHL/Fedex/UPS/TNT/ARA/EMS/By air/By sea and so on are optional, we can send goods by shipping ways you want.
1. Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.
Certificate :
Warranty
1. One year warranty is provided for all models.
2. All products have been strictly Quality Checked in house before packing.
3. All products have been well packed before shipping.
OEM & ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order
