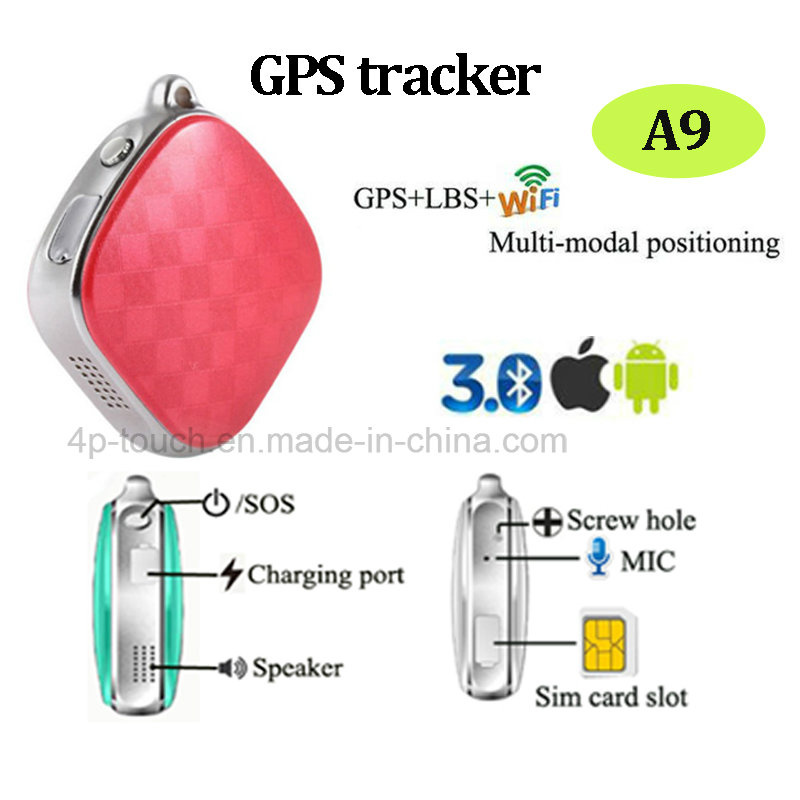

Mini GPS Tracker Key Pendant with GPS WiFi Lbs (A9)
| Price: |
US $ 24-25/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
A9 |
| GSM Antenna: |
FPC Antenna |
| G-Sensor: |
Support |
| Battery: |
450mAh |
| GPRS: |
Class12 |
| GPS Channel Number: |
22 Channels |
| GPS Location Accuracy: |
5~15m |
| Lbs Location Accuracy: |
100-1000m |
| Type: |
GPS Tracker |
| Use: |
Automotive |
Product Description
Main Features:
1. Delicate appearance pendant.
2. GPS + WIFI + LBS multi-mode position.
3. positioning, static dormancy save.
4. electricity design, real-time positioning, intelligent monitoring.
Note: our 2G/GSM GPS tracker are ok with 3G SIM card ,just check with phone operator ,
the 3G SIM card is compatible with 2G GSM network is fine. Because even 2G is quit from market, but the 3G network still use the 2G base station, so the voice +data feature still valid as is.

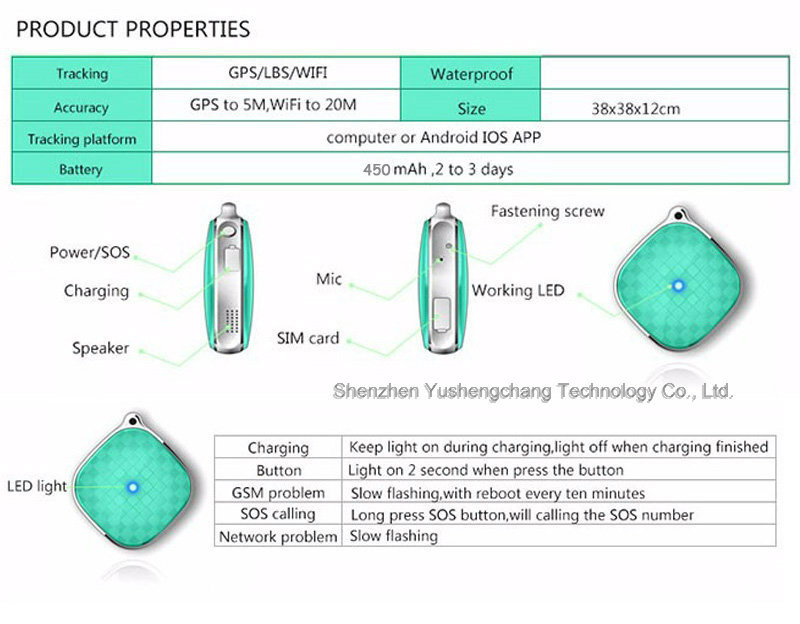

1. Structure |
| Structure | Item | Specification |
| ID style | Delicate and mini |
| Product size | 38X38X12mm |
| Colors | Green ,White,Red |
| Button | One button(Power button/SOS button) |
| Screen | No |
| gps antenna | High sensitivity ceramic active antenna |
| GSM antenna | FPC antenna |
| Battery | 500mAh |
| SIM card | One |
| G-sensor | Support |
| I/O port | USB charging |
| 2. Hardware |
| Hardware | Chipset | MTK2503 |
| GPS chip | MTK3327 |
| GPRS | Class12 |
| GPS signal | L1,1575.42MHz C/A |
| GPS channels | 22 channels |
| GPS receiving sensitivity of chip level | Track:-165dBm,Catch:-148dBm |
| GPS Positioning accuracy | less than 5m |
| LBS Positioning accuracy | 100-1000M |
| Minimum standby current | <0.5 mA |
| The average standby current | <2.5 mA |
| The average working current | About 55mA |
| Working Temp. | -20~70ºC |
| Operating humidity | 5% to 95% noncondensing |
| Test and Certification | Can pass 3C and CE certification |
| GPS antenna | Built-in high sensitivity FPC antenna |
| GSM antenna | Built-in four frequency PIFA antenna |
| Bluetooth | No |
| G-sensor | Support |
| MIC | Support |
| 3.Software |
| Software | OS | Support Android 2.3 and above ,IOS5.0 and above |
| Call function | Two-way communication/remote pickup |
| Language | Chinese,English |
| GSM+GPRS+GPS | GPS+WIFI+LBS multimode positioning |
| Support AGPS | Cold start 26 seconds positioning |
| Call Function | SOS call ,Voice monitoring ,Whitelist no disturbing function |
| Power management | Ultra-low power consumption of power management,Smart Stay |
| A key emergency | A key to SOS emergency function, automatic answering the call |
| Intelligent fence | Outside the range set can be automatic alarm |
| Historical route | Can check history of three months |
| Wireless upgrading | Remote software upgrade, remote debugging maintenance, remote setting parameters |
Our Service
1.All of our products can be offered at OEM, such as custom logo, packaging, etc.
2.All our product will be strictly tested before we delivered to you.
3. we will try our best to provide the lowest shipping cost for you.
Warranty
1.Our product warranty is one year since the date of purchase.
2.We have the after-sale service. If any comments or questions after received our item, please e-mail us immediately, we will answer you as soon as possible.
FAQ
*What's the MOQ and lead time?
For our existing mold items, normally we don't have strict MOQ, samples or trial order is available.
Our sample lead time 2-3days, our production lead time is 10-15days, which also based on the order quantity.
*Can I brand the items with our own logo/Brand?
Yes, we do provide OEM & ODM service.
*What's the payment terms you accept?
Our payment term: T/T(30% down payment, 70% balance before shipment),
for small batch orders, normally we accept Paypal payment, for bulk order we have HK HSBC account or Western Union account.
*How long do you offer for your product warranty?
Our product warranty is 12 months, except artificially damaged or improper operation;
*How can I get a sample to check quality?
Please just forward me the sample order summary (include the exact item number, preferred colors, sample quantity), then I will make the sample PI for your approval, after received your payment through Paypal, I will send out the sample to you
*When can I get the prices?
Within 12 hours after we received your inquiries.
*How about the shipping?
For sample dispatch, we normally send through International Courier door to door(such as DHL, FedEx, UPS, TNT etc.),for bulk order, we normally ship by air or by sea, based on clients requirement. we will offer the most reasonable way for our clients.
If any questions or comments, please kindly feel free to contact us.
Thank you!
Maggie Mobile:+8618676734218
